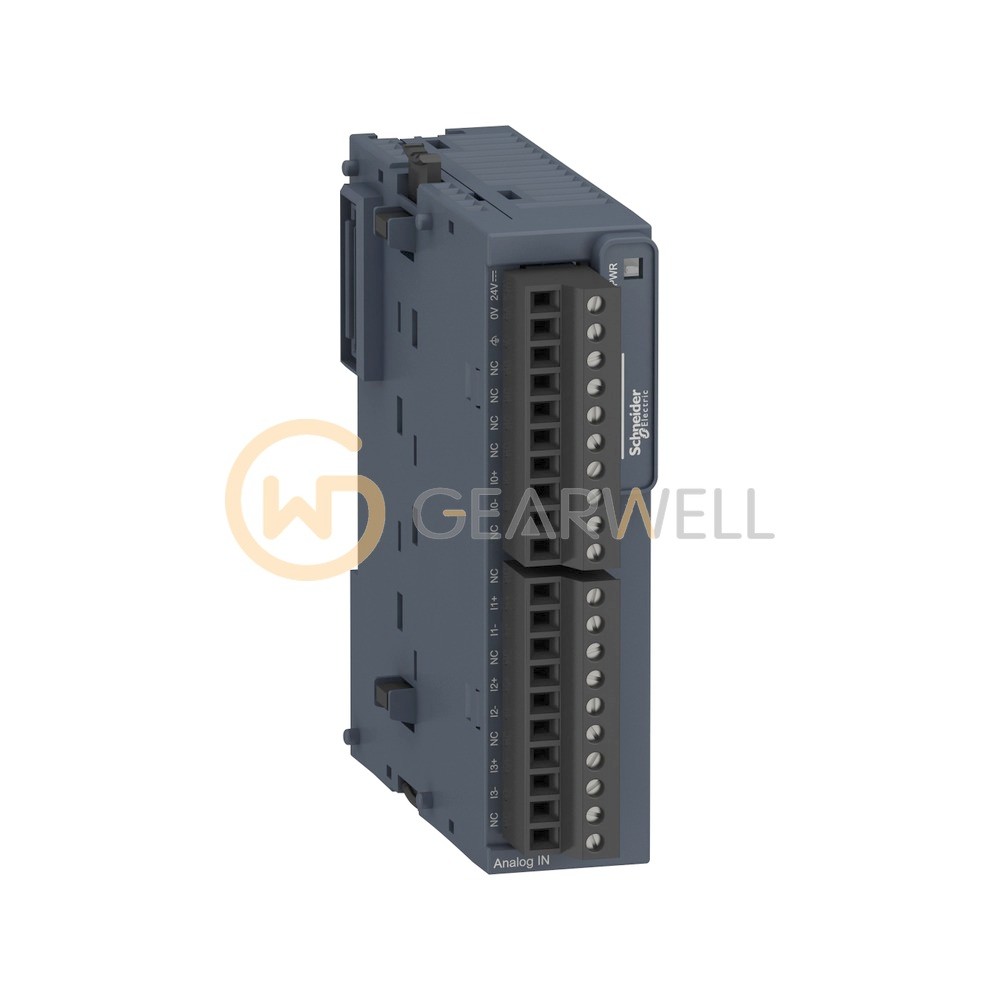

Schneider Electric TM3AI4 Modicon TM3 Analog Input Module
- Brand
- Schneider Electric
- Model
- TM3AI4
- GEARWELL SKU
- GWP-000007418
- Category
- PLCs & I/O
Key specifications
- Conversion time
- 1 ms + 1 ms per channel + 1 controller cycle time
- Input impedance
- <= 50 Ohm, >= 1 MOhm
- Sampling duration
- 1 Ms
- Analogue input type
- Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V
- Analogue input number
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric TM3AI4 is a Modicon TM3 analog input module: 4 voltage/current inputs (−10…+10 V, 0…10 V, 0–20 mA, 4–20 mA), 12-bit, screw terminals. TM3 expansion modules connect to Modicon M221, M241, M251 and M262 controllers over the TM3 bus. Its removable terminal blocks are supplied with the module.
Technical reference
| Product name | Schneider Electric TM3AI4 Modicon TM3 Analog Input Module |
|---|---|
| Brand | Schneider Electric |
| Model | TM3AI4 |
| Category | PLCs & I/O |
| Conversion time | 1 ms + 1 ms per channel + 1 controller cycle time |
| Input impedance | <= 50 Ohm, >= 1 MOhm |
| Sampling duration | 1 Ms |
| Analogue input type | Current 4...20 mA, Current 0...20 mA, Voltage 0...10 V, Voltage - 10...10 V |
| Analogue input number | 4 |
| Absolute accuracy error | +/- 0.1 % of full scale at 25 °C, +/- 1 % of full scale |
| Analogue input resolution | 12 bits, 11 bits + sign |
| Permissible continuous overload | 13 V, analogue input type: voltage, 40 mA, analogue input type: current |
