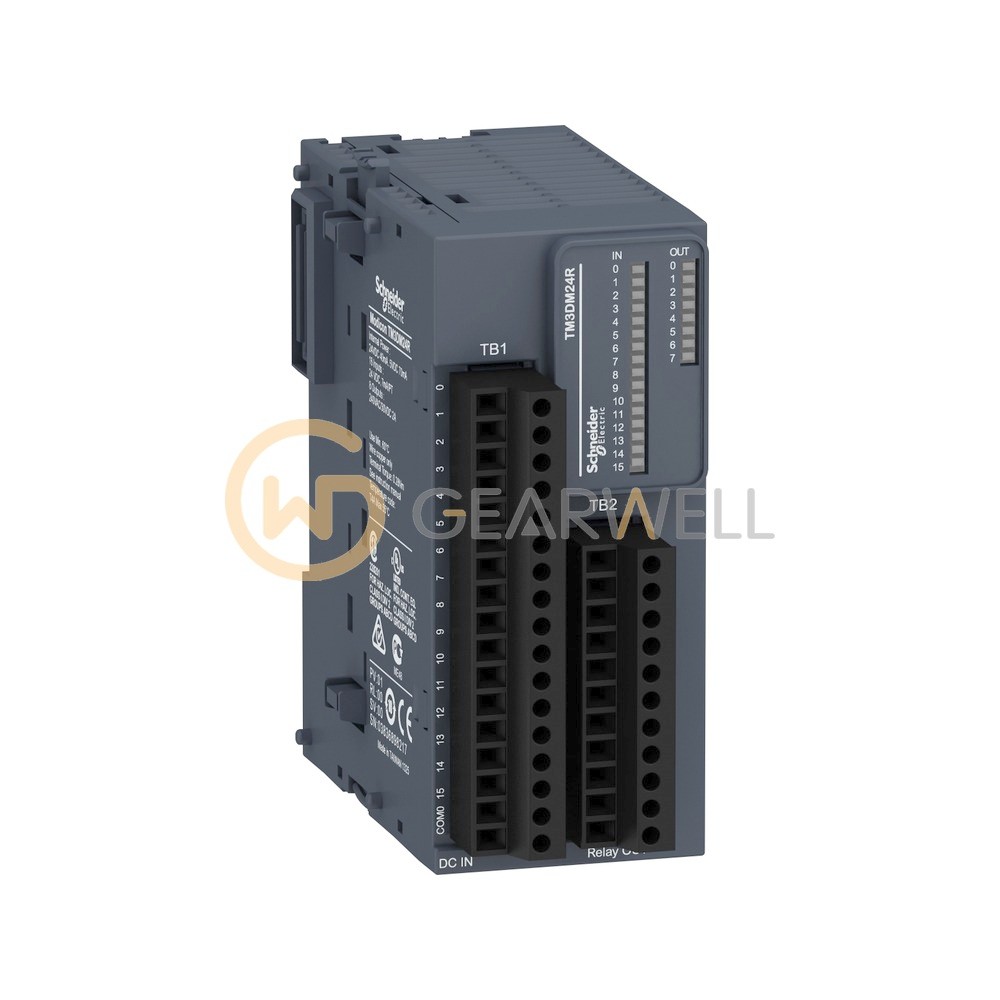

Schneider Electric TM3DM24R Discrete I/O expansion module (relay outputs)
- Brand
- Schneider Electric
- Model
- TM3DM24R
- GEARWELL SKU
- GWP-000010866
- Category
- PLCs & I/O
Key specifications
- Range compatibility
- Modicon M241; Modicon M251; Modicon M221; Modicon M262
- Discrete input logic
- Sink or source (positive/negative)
- Discrete input number
- 16
- Discrete output logic
- Positive or negative
- Discrete output number
- 8
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric TM3DM24R is a Modicon TM3 mixed digital I/O module: 16 sink/source 24 V DC inputs and 8 relay outputs (2 A), screw terminals. TM3 expansion modules connect to Modicon M221, M241, M251 and M262 controllers over the TM3 bus. Its removable terminal blocks are supplied with the module.
Technical reference
| Product name | Schneider Electric TM3DM24R Discrete I/O expansion module (relay outputs) |
|---|---|
| Brand | Schneider Electric |
| Model | TM3DM24R |
| Category | PLCs & I/O |
| Range compatibility | Modicon M241; Modicon M251; Modicon M221; Modicon M262 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input number | 16 |
| Discrete output logic | Positive or negative |
| Discrete output number | 8 |
| Discrete output voltage | 24 V DC for relay outputs; 240 V AC for relay outputs |
| Product or component type | Discrete I/O module |
