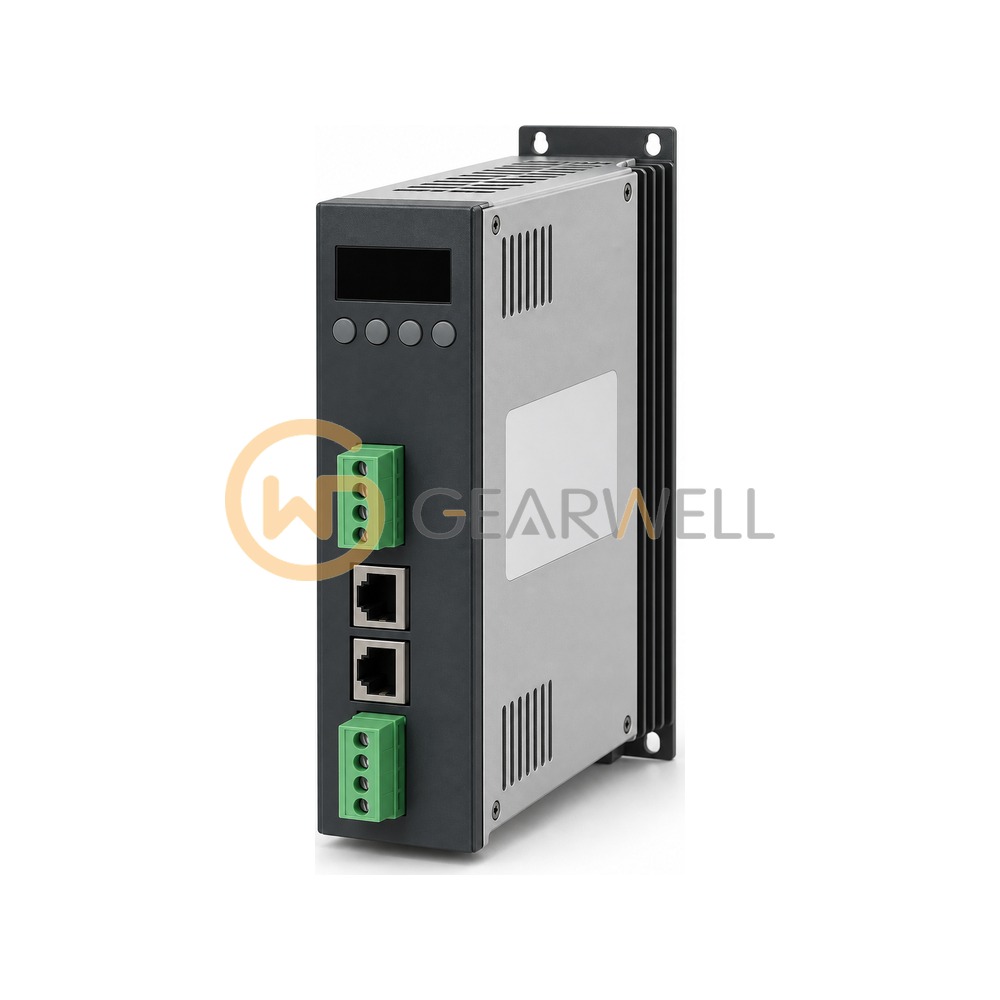

Schneider Electric LXM32MD12N4 Lexium 32 Motion servo drive
- Brand
- Schneider Electric
- Model
- LXM32MD12N4
- GEARWELL SKU
- GWP-000013021
- Category
- Servo Systems
Key specifications
- Nominal power
- 0.7 KW at 208 V 8 kHz ; 0.9 KW at 400 V 8 kHz ; 0.9 KW at 480 V 8 kHz
- Range of product
- Lexium 32
- Output current 3s peak
- 12 A at 208 V for 5 s ; 12 A at 480 V for 5 s
- Communication interface
- Modbus TCP, with separated communication card ; CANopen, with separated communication card ; CANmotion, with separated communication card ; Ethernet/IP, with separated communication card ; EtherCAT, with separated communication card ; Profibus, with separated communication card ; Profinet, with separated communication card ; Analog I/O, with separated communication card ; Digital I/O, integrated
- [Us] rated supply voltage
- 200...240 V - 15...10 % ; 380...480 V - 15...10 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LXM32MD12N4 Lexium 32 Motion servo drive |
|---|---|
| Brand | Schneider Electric |
| Model | LXM32MD12N4 |
| Category | Servo Systems |
| Nominal power | 0.7 KW at 208 V 8 kHz ; 0.9 KW at 400 V 8 kHz ; 0.9 KW at 480 V 8 kHz |
| Range of product | Lexium 32 |
| Output current 3s peak | 12 A at 208 V for 5 s ; 12 A at 480 V for 5 s |
| Communication interface | Modbus TCP, with separated communication card ; CANopen, with separated communication card ; CANmotion, with separated communication card ; Ethernet/IP, with separated communication card ; EtherCAT, with separated communication card ; Profibus, with separated communication card ; Profinet, with separated communication card ; Analog I/O, with separated communication card ; Digital I/O, integrated |
| [Us] rated supply voltage | 200...240 V - 15...10 % ; 380...480 V - 15...10 % |
| Network number of phases | Three phase |
| Continuous output current | 3 A at 8 kHz |
