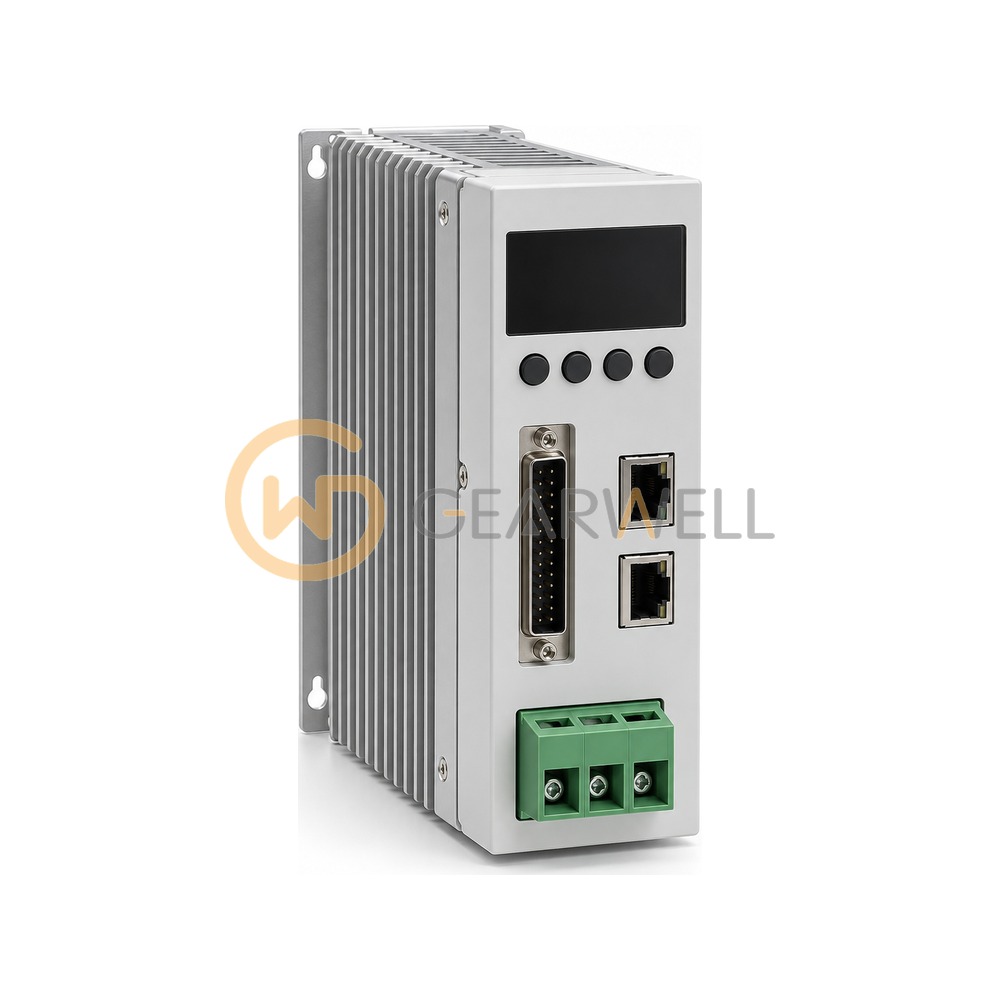

Schneider Electric LXM32CD30N4 Lexium 32 Motion servo drive

Key specifications

Nominal power: 2 KW at 208 V 8 kHz ; 3 KW at 400 V 8 kHz ; 3 KW at 480 V 8 kHz
Range of product: Lexium 32
Output current 3s peak: 30 A at 208 V for 5 s ; 30 A at 480 V for 5 s
Communication interface: Digital I/O, integrated ; Analog I/O, integrated
[Us] rated supply voltage: 200...240 V - 15...10 % ; 380...480 V - 15...10 %

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Schneider Electric LXM32CD30N4 Lexium 32 Motion servo drive
Brand	Schneider Electric
Model	LXM32CD30N4
Category	Servo Systems
Nominal power	2 KW at 208 V 8 kHz ; 3 KW at 400 V 8 kHz ; 3 KW at 480 V 8 kHz
Range of product	Lexium 32
Output current 3s peak	30 A at 208 V for 5 s ; 30 A at 480 V for 5 s
Communication interface	Digital I/O, integrated ; Analog I/O, integrated
[Us] rated supply voltage	200...240 V - 15...10 % ; 380...480 V - 15...10 %
Network number of phases	Three phase
Continuous output current	10 A at 8 kHz
