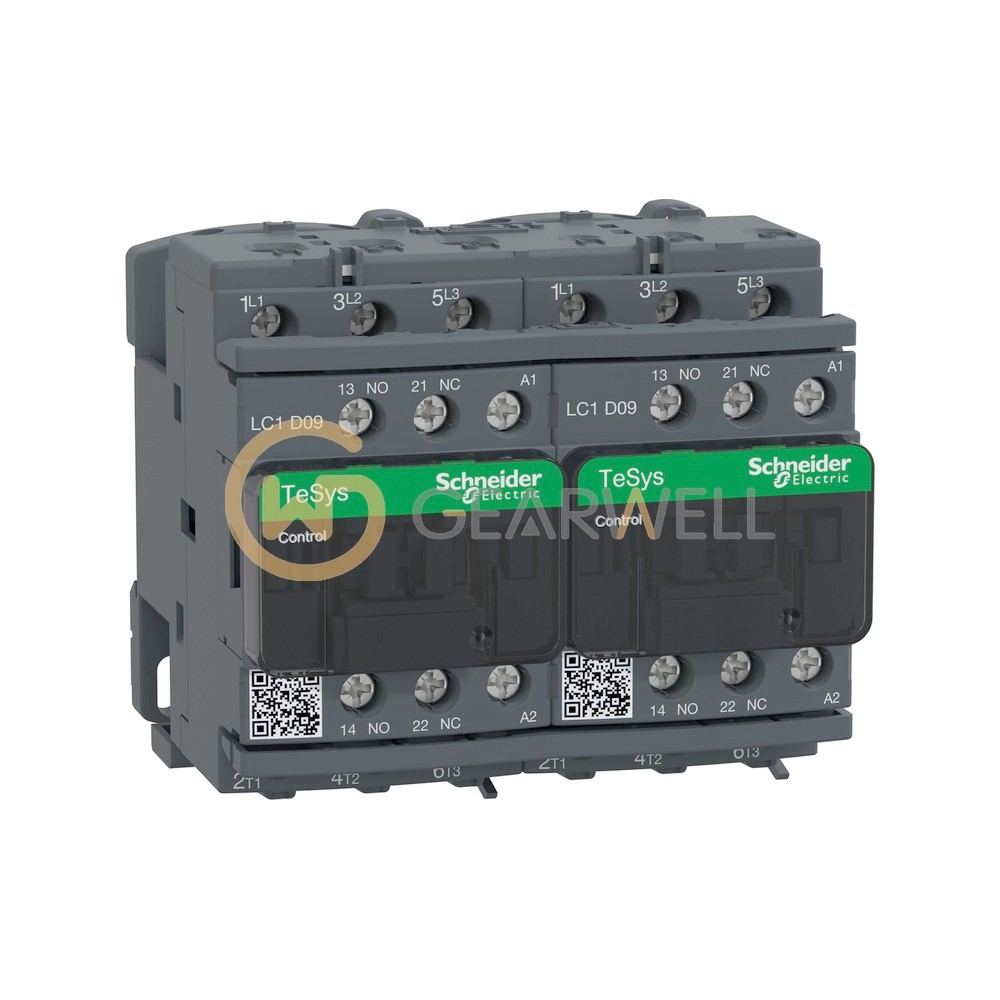

Schneider Electric LC2D09G7 TeSys D Reversing Contactor
- Brand
- Schneider Electric
- Model
- LC2D09G7
- GEARWELL SKU
- GWP-000007365
- Category
- Contactors & Starters
Key specifications
- Motor power kW
- 2.2 KW at 220...230 V AC 50 Hz
- Poles description
- 3P
- Device presentation
- Preassembled with reversing power busbar
- Utilisation category
- AC-1, AC-3
- Contactor application
- Resistive load, Motor control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC2D09G7 TeSys D Reversing Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC2D09G7 |
| Category | Contactors & Starters |
| Motor power kW | 2.2 KW at 220...230 V AC 50 Hz |
| Poles description | 3P |
| Device presentation | Preassembled with reversing power busbar |
| Utilisation category | AC-1, AC-3 |
| Contactor application | Resistive load, Motor control |
| Pole contact composition | 3 NO |
| [Ie] rated operational current | 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit, 25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz, Power circuit: <= 300 V DC |
