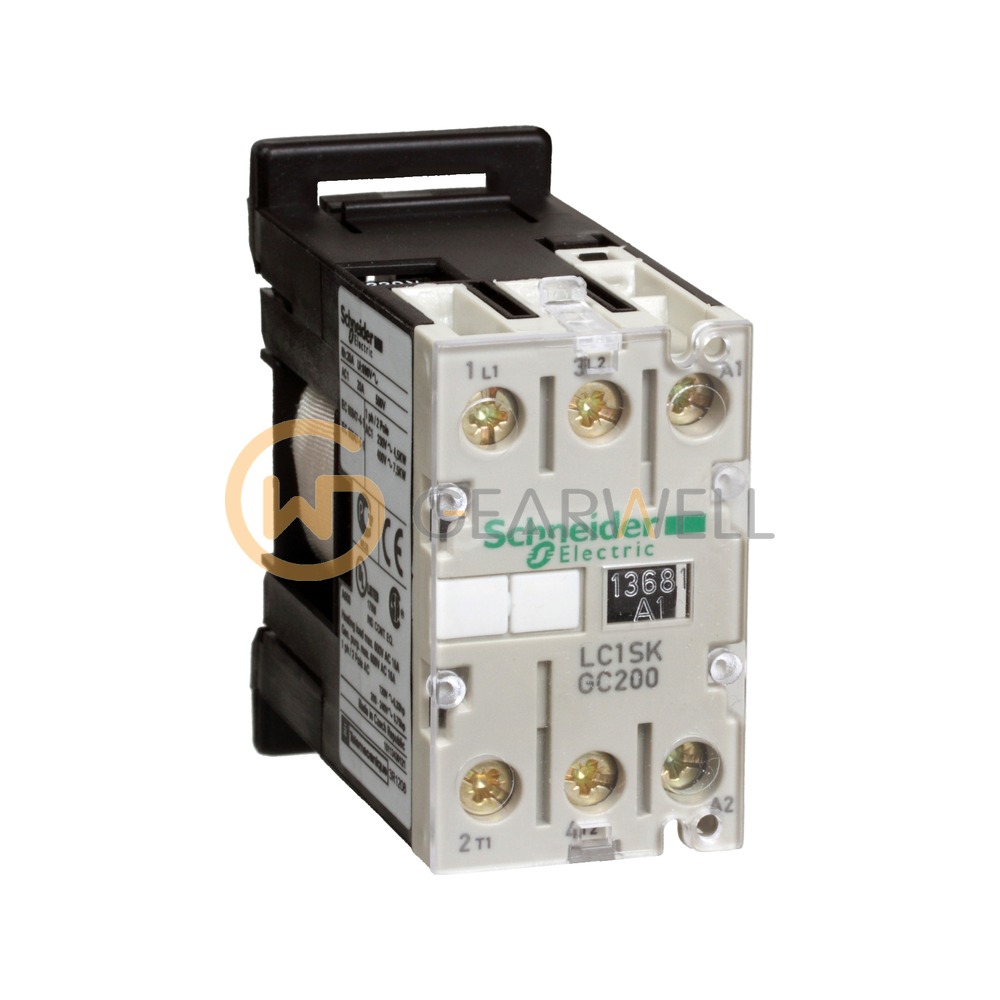

Schneider Electric LC1SKGC200B7 TeSys SK Mini Contactor
- Brand
- Schneider Electric
- Model
- LC1SKGC200B7
- GEARWELL SKU
- GWP-000010783
- Category
- Contactors & Starters
Key specifications
- Utilisation category
- AC-3; AC-1
- Pole contact composition
- 2 NO
- [Uc] control circuit voltage
- 24 V AC 50/60 Hz
- [Ie] rated operational current
- 5 A at <= 400 V AC AC-3; 20 A (at <122 °F (50 °C)) AC AC-1
- [Ue] rated operational voltage
- Power circuit 690 V AC 50/60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1SKGC200B7 TeSys SK Mini Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1SKGC200B7 |
| Category | Contactors & Starters |
| Utilisation category | AC-3; AC-1 |
| Pole contact composition | 2 NO |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| [Ie] rated operational current | 5 A at <= 400 V AC AC-3; 20 A (at <122 °F (50 °C)) AC AC-1 |
| [Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz |
| [Ith] conventional free air thermal current | 20 A (at 131 °F (55 °C)) for power circuit |
