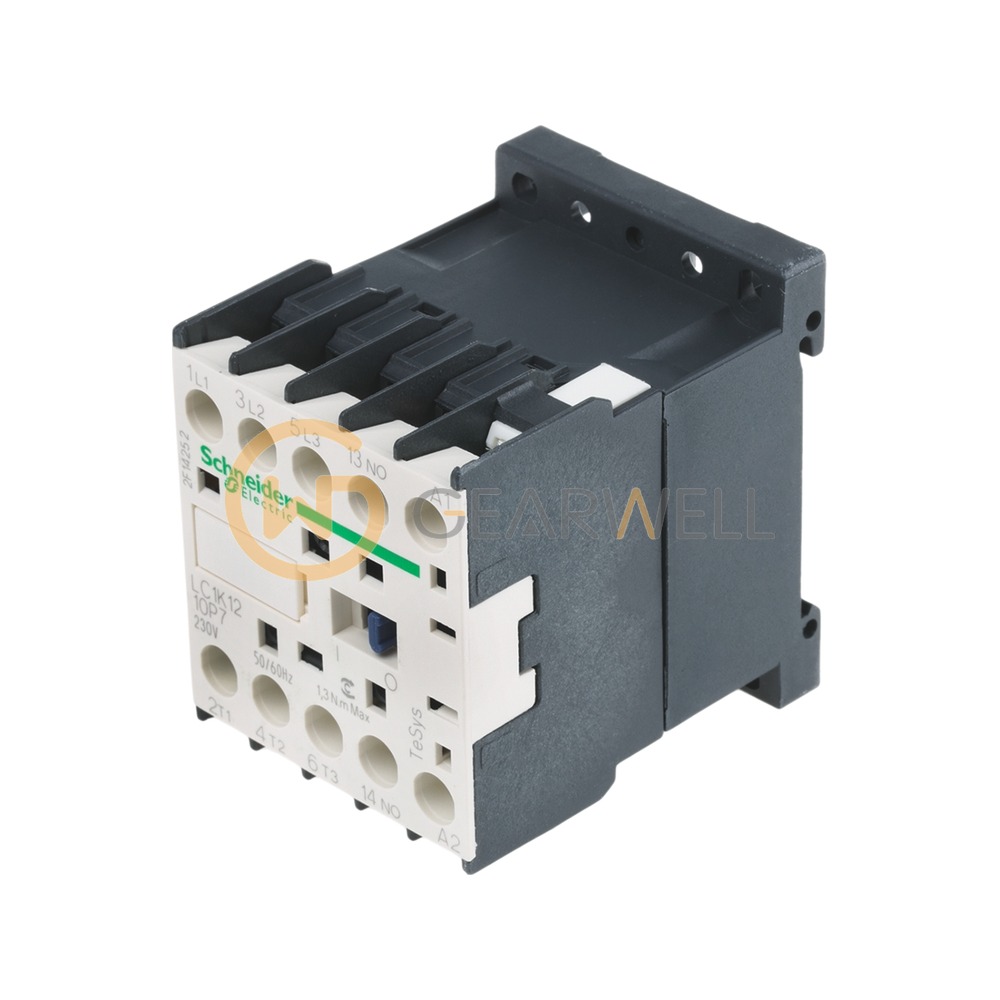

Schneider Electric LC1K1210P7 TeSys K Contactor
- Brand
- Schneider Electric
- Model
- LC1K1210P7
- GEARWELL SKU
- GWP-000010461
- Category
- Contactors & Starters
Key specifications
- Poles description
- 3P
- Device application
- Control
- Control circuit type
- AC at 50/60 Hz
- Utilisation category
- AC-3, AC-3e, AC-1, AC-4
- Contactor application
- Resistive load, Motor control
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric LC1K1210P7 TeSys K Contactor |
|---|---|
| Brand | Schneider Electric |
| Model | LC1K1210P7 |
| Category | Contactors & Starters |
| Poles description | 3P |
| Device application | Control |
| Control circuit type | AC at 50/60 Hz |
| Utilisation category | AC-3, AC-3e, AC-1, AC-4 |
| Contactor application | Resistive load, Motor control |
| Pole contact composition | 3 NO |
| [Ie] rated operational current | 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz, Signalling circuit: <= 690 V AC <= 400 Hz |
