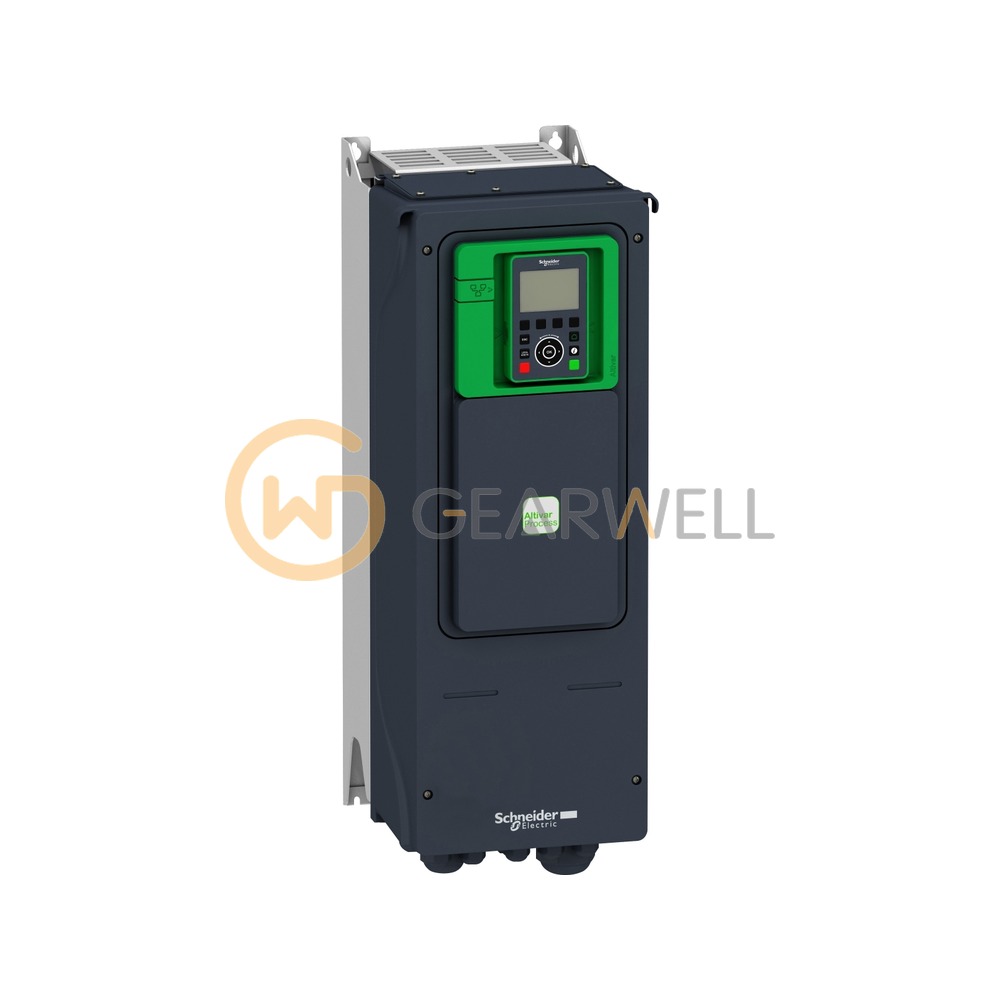

Schneider Electric ATV950U75N4 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV950U75N4
- GEARWELL SKU
- GWP-000007220
- Category
- Variable Frequency Drives
Key specifications
- Variant
- With braking chopper
- Mounting mode
- Wall mount
- Device application
- Industrial application
- Product destination
- Synchronous motors
- [Us] rated supply voltage
- 380...480 V - 15...10 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV950U75N4 is an Altivar Process ATV950 variable speed drive for 380–480 V three-phase supplies, rated 7.5 kW (10 HP) in normal duty and 5.5 kW (7.5 HP) in heavy duty. It is an IP55 wall-mounting drive with a braking unit and an integrated category C2 EMC filter. Schneider Electric aims the ATV900 series at productivity-focused applications, with high-performance motor control (overload torque up to 180% of nominal torque in open or closed loop), embedded Safe Torque Off (STO, SIL 3) and an embedded web server.
Technical reference
| Product name | Schneider Electric ATV950U75N4 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV950U75N4 |
| Category | Variable Frequency Drives |
| Variant | With braking chopper |
| Mounting mode | Wall mount |
| Device application | Industrial application |
| Product destination | Synchronous motors |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Continuous output current | 16.5 A at 4 kHz for normal duty |
| Communication port protocol | EtherNet/IP |
