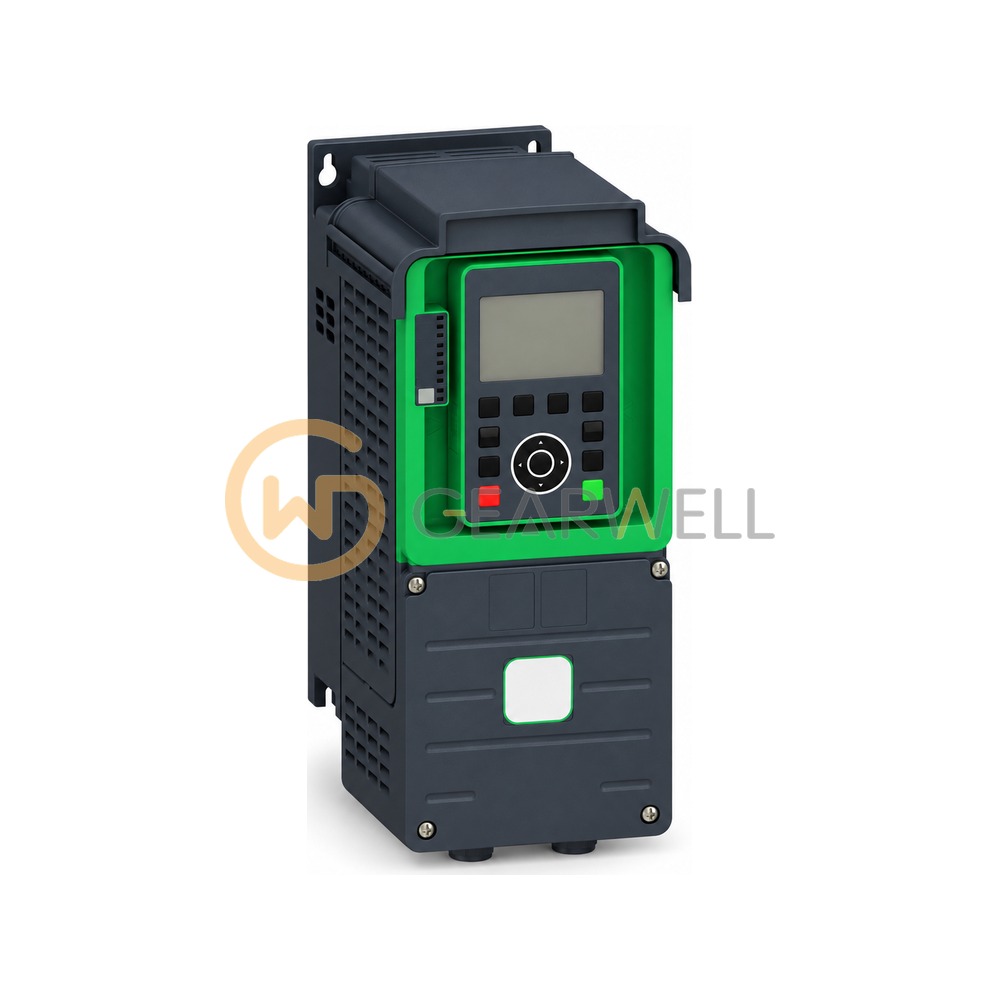

Schneider Electric ATV930U22N4 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV930U22N4
- GEARWELL SKU
- GWP-000013000
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version ; With braking chopper
- Motor power kW
- 2.2 KW for normal duty ; 1.5 KW for heavy duty
- Range of product
- Altivar Process ATV900
- Nominal output current
- 5.6 A
- IP degree of protection
- IP21
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV930U22N4 is an Altivar Process ATV930 variable speed drive for 380–480 V three-phase supplies, rated 2.2 kW (3 HP) in normal duty and 1.5 kW (2 HP) in heavy duty. It is an IP21/UL Type 1 wall-mounting drive with a braking unit and an integrated category C2 EMC filter. Schneider Electric aims the ATV900 series at productivity-focused applications, with high-performance motor control (overload torque up to 180% of nominal torque in open or closed loop), embedded Safe Torque Off (STO, SIL 3) and an embedded web server.
Technical reference
| Product name | Schneider Electric ATV930U22N4 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV930U22N4 |
| Category | Variable Frequency Drives |
| Variant | Standard version ; With braking chopper |
| Motor power kW | 2.2 KW for normal duty ; 1.5 KW for heavy duty |
| Range of product | Altivar Process ATV900 |
| Nominal output current | 5.6 A |
| IP degree of protection | IP21 |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Continuous output current | 5.6 A at 4 kHz for normal duty ; 4 A at 4 kHz for heavy duty |
| Product or component type | Variable speed drive |
