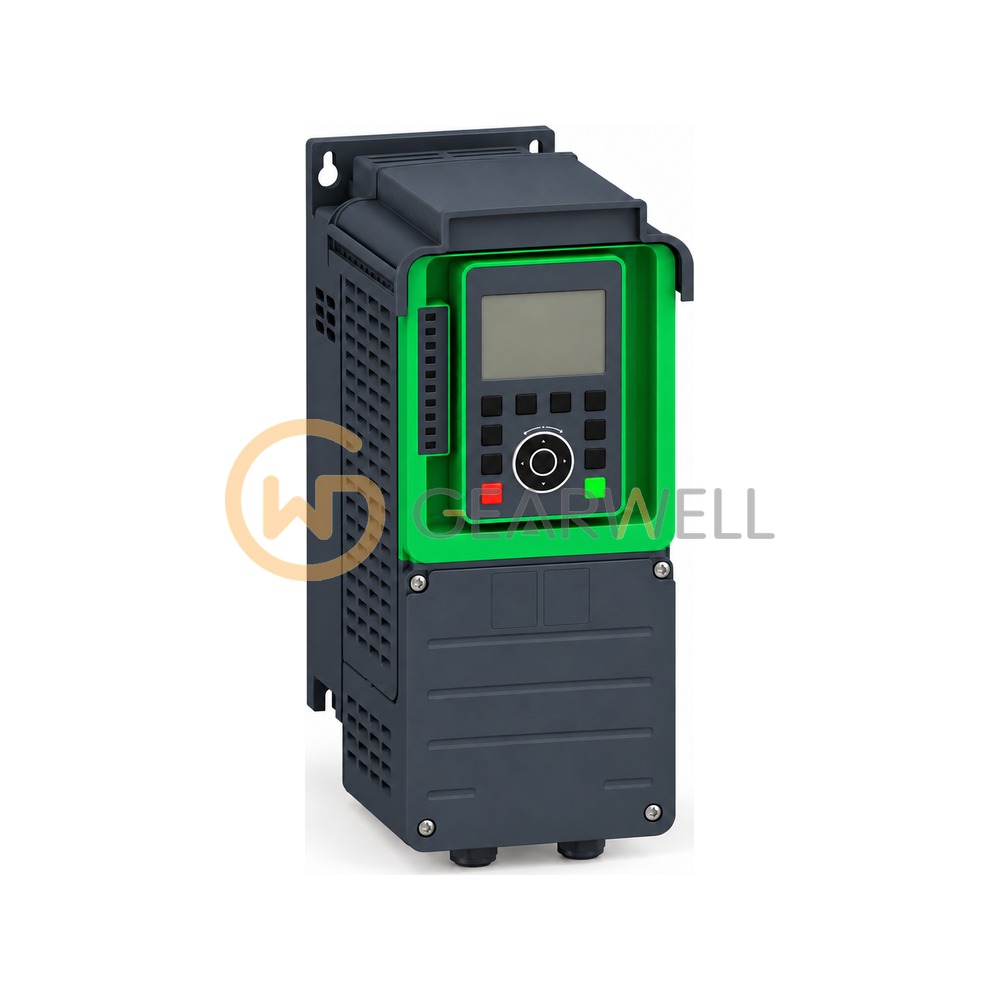

Schneider Electric ATV930C22N4C Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV930C22N4C
- GEARWELL SKU
- GWP-000012996
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version ; Without braking chopper
- Motor power kW
- 220.0 KW for normal duty ; 160.0 KW for heavy duty
- Range of product
- Altivar Process ATV900
- Nominal output current
- 427.0 A
- IP degree of protection
- IP21
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV930C22N4C is an Altivar Process ATV930 variable speed drive for 380–480 V three-phase supplies, rated 220 kW (350 HP) in normal duty and 160 kW (250 HP) in heavy duty. It is a wall-mounting drive without a braking unit and with an integrated category C3 EMC filter, supplied as IP00 for installation in an enclosure; an IP21/UL Type 1 kit is ordered separately for open wall mounting. Schneider Electric aims the ATV900 series at productivity-focused applications, with high-performance motor control (overload torque up to 180% of nominal torque in open or closed loop), embedded Safe Torque Off (STO, SIL 3) and an embedded web server.
Technical reference
| Product name | Schneider Electric ATV930C22N4C Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV930C22N4C |
| Category | Variable Frequency Drives |
| Variant | Standard version ; Without braking chopper |
| Motor power kW | 220.0 KW for normal duty ; 160.0 KW for heavy duty |
| Range of product | Altivar Process ATV900 |
| Nominal output current | 427.0 A |
| IP degree of protection | IP21 |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Continuous output current | 302 A at 2.5 kHz for heavy duty ; 427 A at 2.5 kHz for normal duty |
| Product or component type | Variable speed drive |
