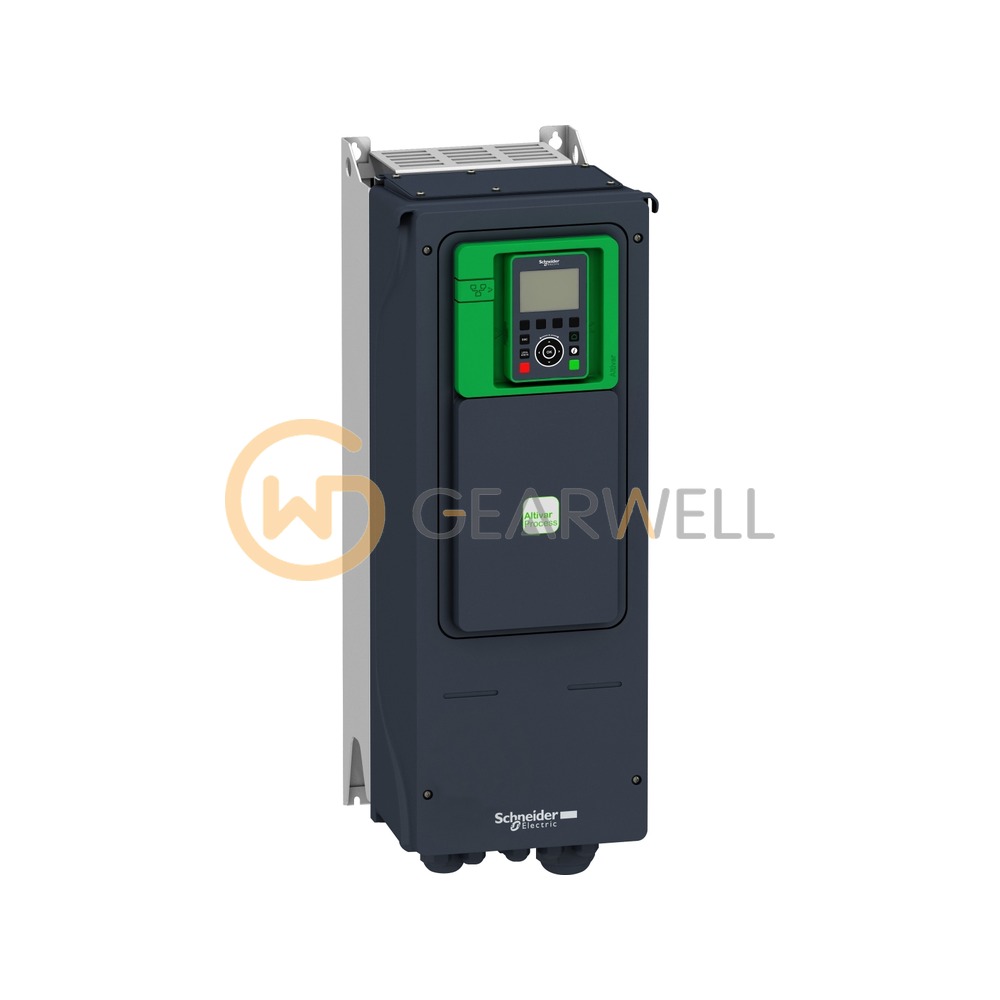

Schneider Electric ATV650D22N4 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV650D22N4
- GEARWELL SKU
- GWP-000007218
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version
- Mounting mode
- Wall mount
- Nominal output current
- 46.3 A
- [Us] rated supply voltage
- 380...480 V - 15...10 %
- Communication port protocol
- Modbus serial
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV650D22N4 is an Altivar Process ATV650 variable speed drive for 380–480 V three-phase supplies, rated 22 kW (30 HP) in normal duty and 18.5 kW (25 HP) in heavy duty. It is an IP55 wall-mounting drive with an integrated category C2 EMC filter. Schneider Electric aims the ATV600 series at fluid management and process applications such as water and wastewater, oil and gas, and mining, with pump monitoring functions, embedded Ethernet and an embedded web server for setup and monitoring.
Technical reference
| Product name | Schneider Electric ATV650D22N4 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV650D22N4 |
| Category | Variable Frequency Drives |
| Variant | Standard version |
| Mounting mode | Wall mount |
| Nominal output current | 46.3 A |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Communication port protocol | Modbus serial |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5 % |
