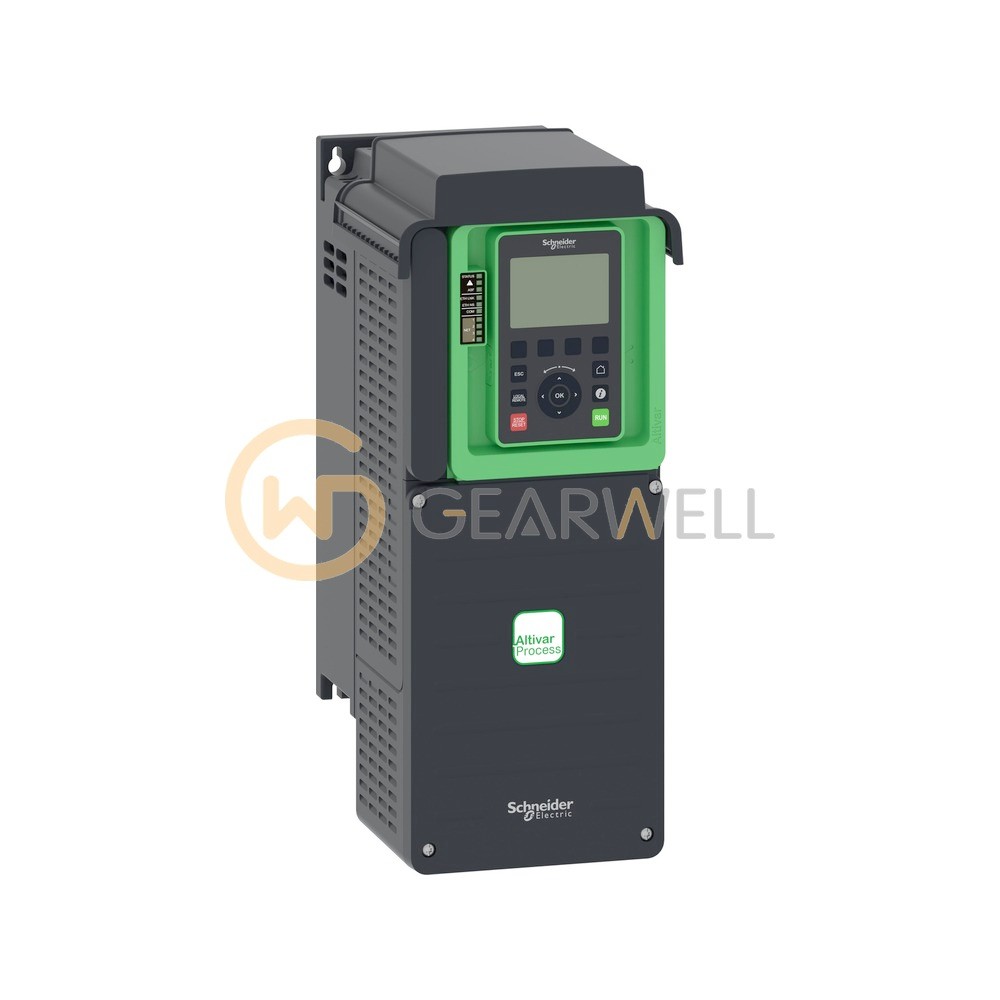

Schneider Electric ATV630U75N4 Variable speed drive (VFD), 380-480 V 3-phase
- Brand
- Schneider Electric
- Model
- ATV630U75N4
- GEARWELL SKU
- GWP-000011062
- Category
- Variable Frequency Drives
Key specifications
- Motor power hp
- 10 Hp normal duty / 7.5 Hp heavy duty hp
- Motor power kW
- 7.5 KW (normal duty) / 5.5 KW (heavy duty) kW
- Range of product
- Altivar Process ATV600
- Device short name
- ATV630
- Nominal output current
- 16.5 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV630U75N4 is an Altivar Process ATV630 variable speed drive for 380–480 V three-phase supplies, rated 7.5 kW (10 HP) in normal duty and 5.5 kW (7.5 HP) in heavy duty. It is an IP21/UL Type 1 wall-mounting drive with an integrated category C2 EMC filter. Schneider Electric aims the ATV600 series at fluid management and process applications such as water and wastewater, oil and gas, and mining, with pump monitoring functions, embedded Ethernet and an embedded web server for setup and monitoring.
Technical reference
| Product name | Schneider Electric ATV630U75N4 Variable speed drive (VFD), 380-480 V 3-phase |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630U75N4 |
| Category | Variable Frequency Drives |
| Motor power hp | 10 Hp normal duty / 7.5 Hp heavy duty hp |
| Motor power kW | 7.5 KW (normal duty) / 5.5 KW (heavy duty) kW |
| Range of product | Altivar Process ATV600 |
| Device short name | ATV630 |
| Nominal output current | 16.5 A |
| IP degree of protection | IP21 |
| [Us] rated supply voltage | 380...480 V - 15...10 % V |
| Product or component type | Variable speed drive |
