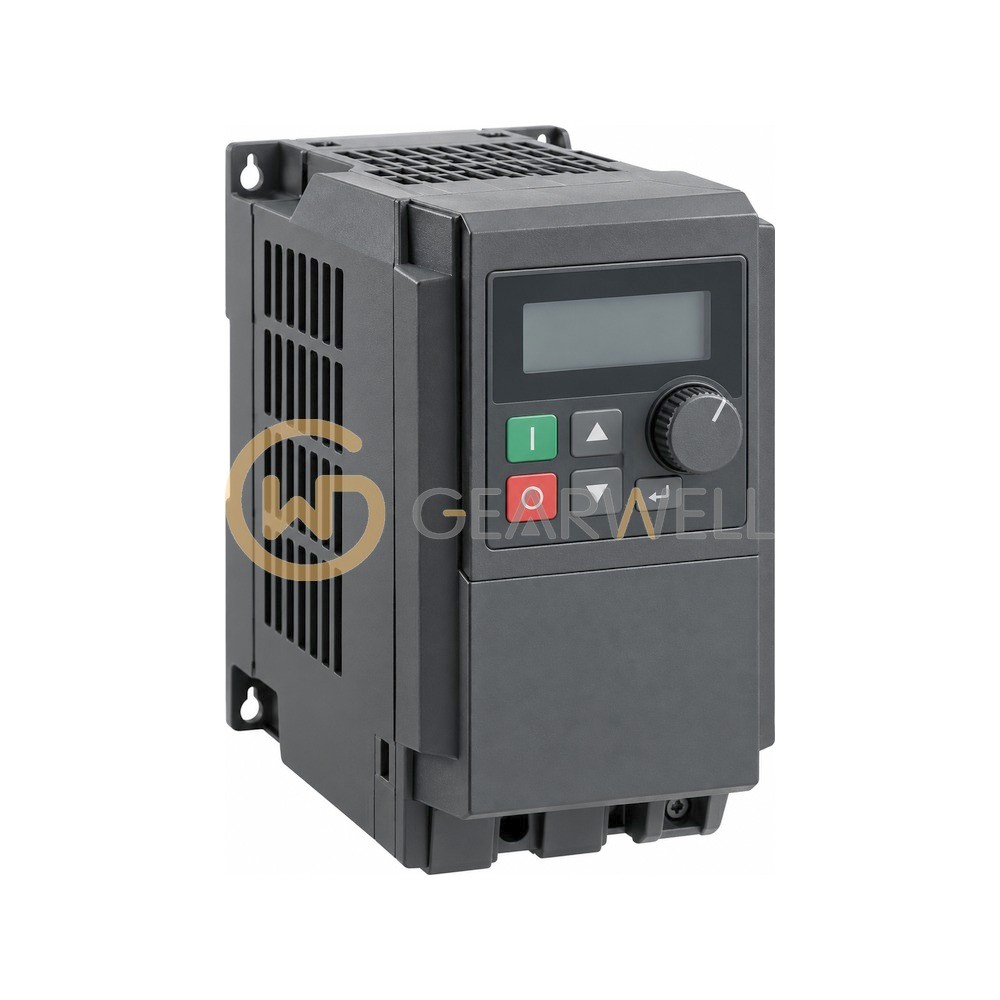

Schneider Electric ATV650D15N4E Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV650D15N4E
- GEARWELL SKU
- GWP-000013522
- Category
- Variable Frequency Drives
Key specifications
- Variant
- With disconnect switch
- Motor power hp
- 15 Hp heavy duty ; 20 Hp normal duty
- Nominal output current
- 31.7 A
- IP degree of protection
- IP55
- [Us] rated supply voltage
- 380...480 V - 15...10 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV650D15N4E is an Altivar Process ATV650 variable speed drive for 380–480 V three-phase supplies, rated 15 kW (20 HP) in normal duty and 11 kW (15 HP) in heavy duty. It is an IP55 wall-mounting drive with an integrated category C2 EMC filter and a Vario disconnect switch. Schneider Electric aims the ATV600 series at fluid management and process applications such as water and wastewater, oil and gas, and mining, with pump monitoring functions, embedded Ethernet and an embedded web server for setup and monitoring.
Technical reference
| Product name | Schneider Electric ATV650D15N4E Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV650D15N4E |
| Category | Variable Frequency Drives |
| Variant | With disconnect switch |
| Motor power hp | 15 Hp heavy duty ; 20 Hp normal duty |
| Nominal output current | 31.7 A |
| IP degree of protection | IP55 |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Continuous output current | 23.5 A at 4 kHz for heavy duty ; 31.7 A at 4 kHz for normal duty |
| Motor power kW (heavy duty) | 11 kW |
| Motor power kW (normal duty) | 15 kW |
