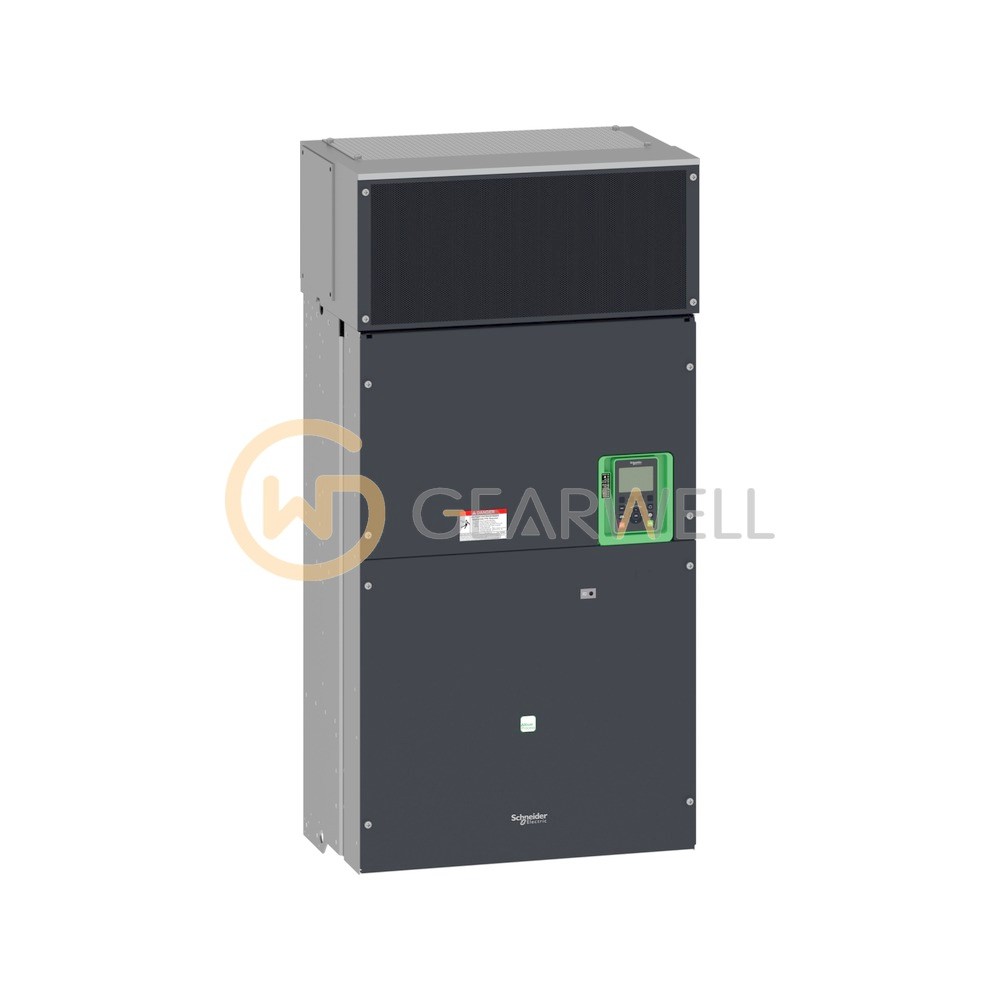

Schneider Electric ATV630C25N4 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV630C25N4
- GEARWELL SKU
- GWP-000011053
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Standard version
- Mounting mode
- Wall mount
- Nominal output current
- 481.0 A
- [Us] rated supply voltage
- 380...480 V - 15...10 %
- Communication port protocol
- Modbus TCP, Modbus serial, Ethernet
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV630C25N4 is an Altivar Process ATV630 variable speed drive for 380–480 V three-phase supplies, rated 250 kW (400 HP) in normal duty and 220 kW (300 HP) in heavy duty. It is a wall-mounting drive with an integrated category C3 EMC filter, supplied as IP00 for installation in an enclosure; an IP21/UL Type 1 kit is ordered separately for open wall mounting. Schneider Electric aims the ATV600 series at fluid management and process applications such as water and wastewater, oil and gas, and mining, with pump monitoring functions, embedded Ethernet and an embedded web server for setup and monitoring.
Technical reference
| Product name | Schneider Electric ATV630C25N4 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630C25N4 |
| Category | Variable Frequency Drives |
| Variant | Standard version |
| Mounting mode | Wall mount |
| Nominal output current | 481.0 A |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Communication port protocol | Modbus TCP, Modbus serial, Ethernet |
| Product specific application | Process and utilities |
| Relative symmetric mains voltage tolerance | 10 % |
| Relative symmetric network frequency tolerance | 5% |
