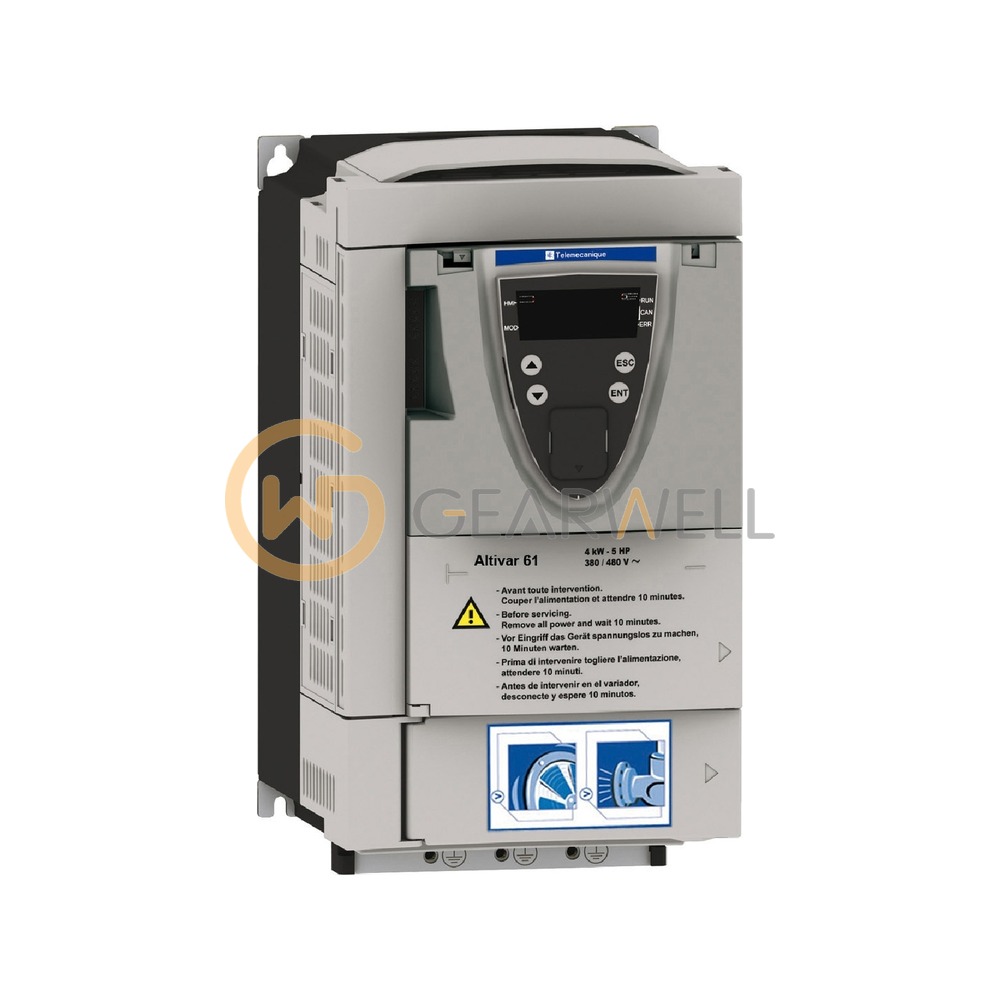

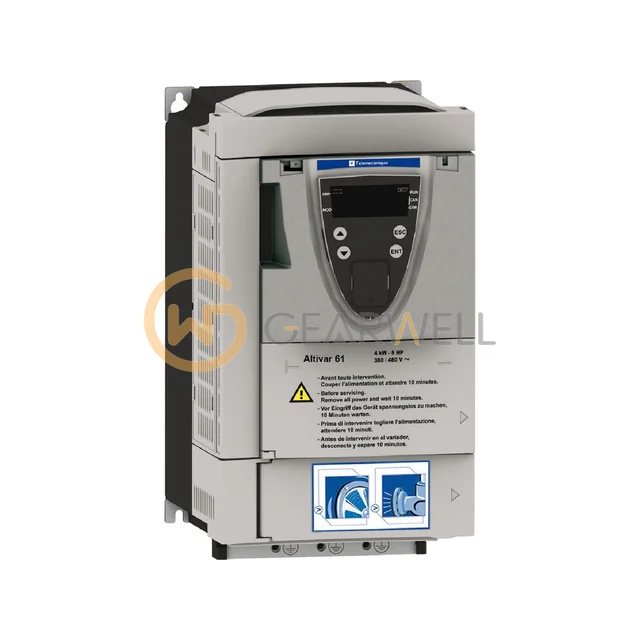

Schneider Electric ATV61HU40N4Z Altivar 61 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV61HU40N4Z
- GEARWELL SKU
- GWP-000011052
- Category
- Variable Frequency Drives
Key specifications
- Variant
- Without remote graphic terminal
- EMC filter
- Level 3 EMC filter
- Line current
- 11.5 A for 480 V 3 phases 4 kW / 5 hp, 14.1 A for 380 V 3 phases 4 kW / 5 hp
- Motor power hp
- 5 Hp, 3 phases at 380...480 V
- Motor power kW
- 4 KW, 3 phases at 380...480 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Schneider Electric ATV61HU40N4Z Altivar 61 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV61HU40N4Z |
| Category | Variable Frequency Drives |
| Variant | Without remote graphic terminal |
| EMC filter | Level 3 EMC filter |
| Line current | 11.5 A for 480 V 3 phases 4 kW / 5 hp, 14.1 A for 380 V 3 phases 4 kW / 5 hp |
| Motor power hp | 5 Hp, 3 phases at 380...480 V |
| Motor power kW | 4 KW, 3 phases at 380...480 V |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| Network number of phases | 3 phases |
| Product specific application | Pumping and ventilation machine |
