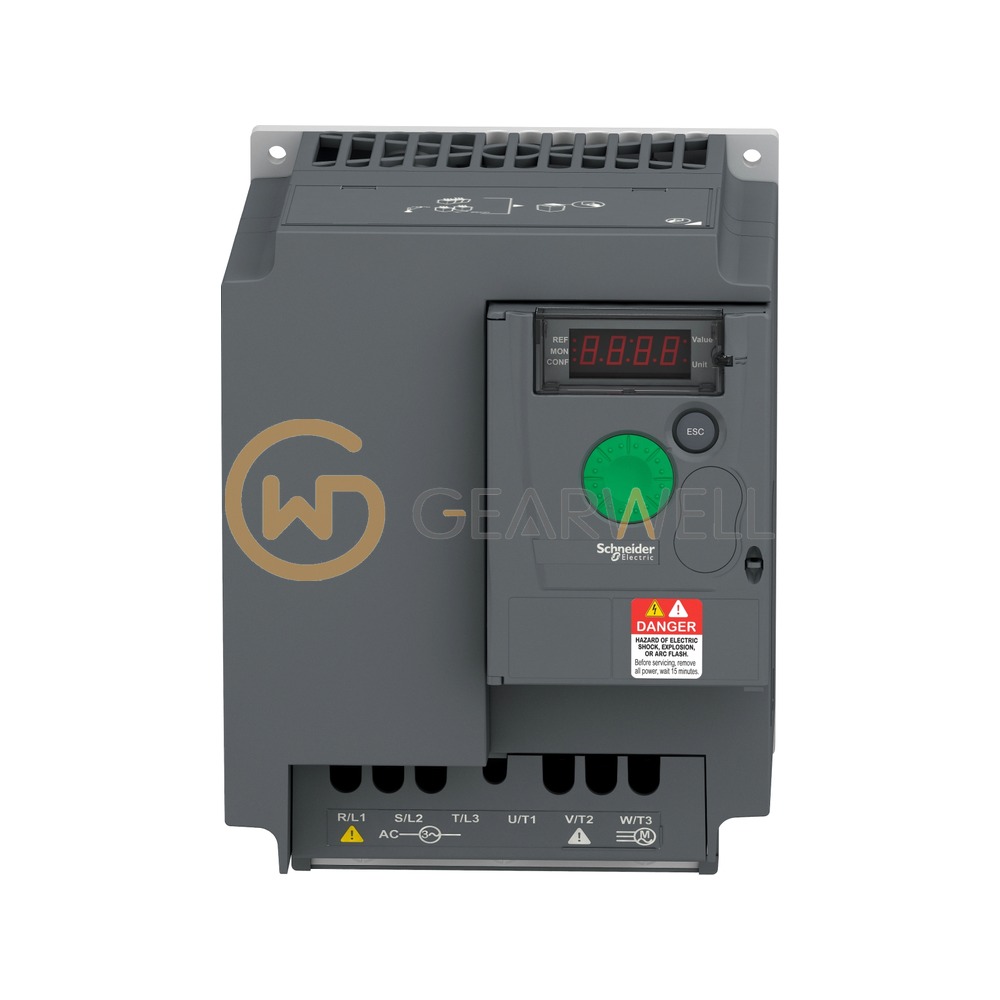

Schneider Electric ATV310HU30N4E Altivar 310 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV310HU30N4E
- GEARWELL SKU
- GWP-000010755
- Category
- Variable Frequency Drives
Key specifications
- Noise level
- 50 DB
- Assembly style
- With heat sink
- Motor power hp
- 4 Hp for heavy duty, 5 Hp for normal duty
- Motor power kW
- 3 KW for heavy duty, 4 KW for normal duty
- Quantity per set
- Set of 1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV310HU30N4E is an Altivar ATV310 variable speed drive for asynchronous motors on 380–460 V three-phase supplies, rated 3 kW (4 HP) in heavy duty and 4 kW (5 HP) in normal duty. It is an IP20 drive (IP40 on top) with an integrated keypad and 4-digit display and built-in Modbus RTU communication. Schneider Electric aims the ATV310 at industrial machines such as conveyors, material handling, packaging and printing, textile, woodworking and machine tools; additional EMC input filters are available as options.
Technical reference
| Product name | Schneider Electric ATV310HU30N4E Altivar 310 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV310HU30N4E |
| Category | Variable Frequency Drives |
| Noise level | 50 DB |
| Assembly style | With heat sink |
| Motor power hp | 4 Hp for heavy duty, 5 Hp for normal duty |
| Motor power kW | 3 KW for heavy duty, 4 KW for normal duty |
| Quantity per set | Set of 1 |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Network number of phases | Three phase |
| Product specific application | Simple machine |
