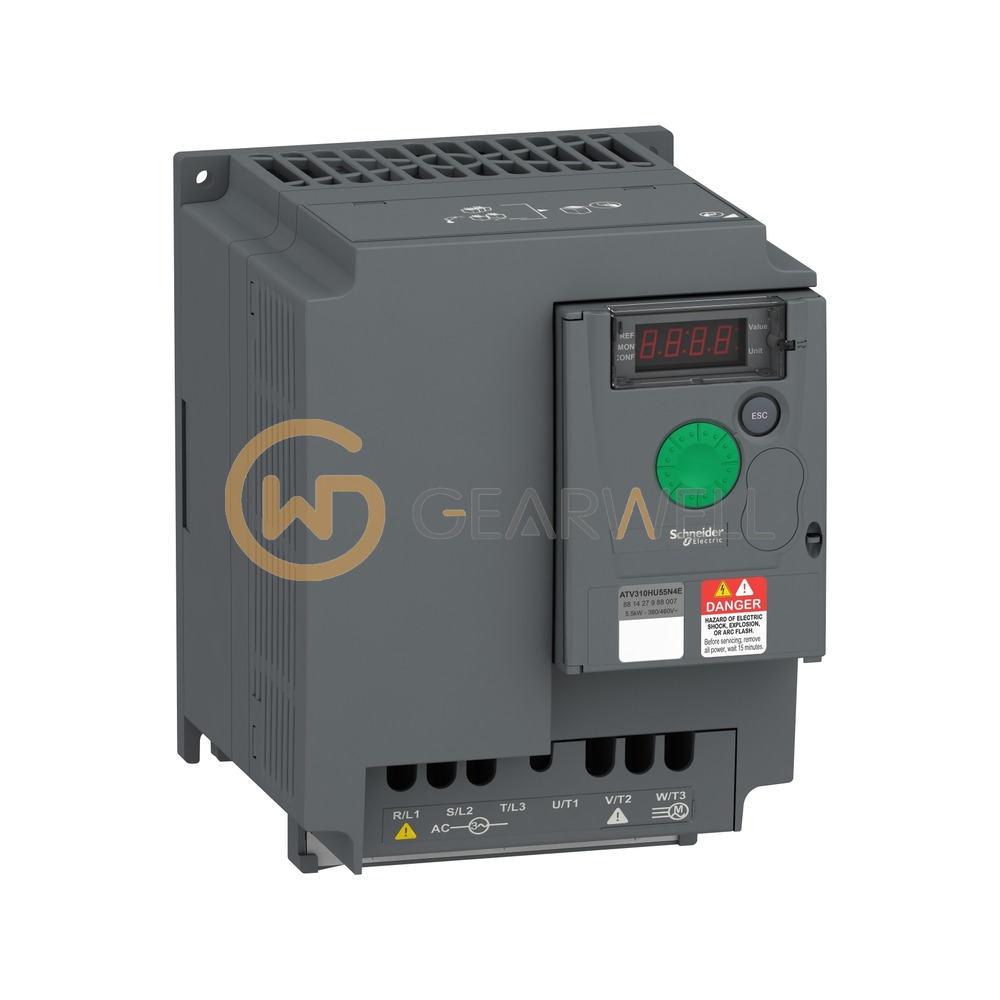

Schneider Electric ATV310HU55N4E Altivar 310 Variable speed drive
- Brand
- Schneider Electric
- Model
- ATV310HU55N4E
- GEARWELL SKU
- GWP-000010757
- Category
- Variable Frequency Drives
Key specifications
- EMC filter
- Without EMC filter
- Motor power hp
- 7.5 Hp for heavy duty; 10 Hp for normal duty
- Motor power kW
- 5.5 KW for heavy duty; 7.5 KW for normal duty
- [Us] rated supply voltage
- 380...460 V - 15...10 %
- Network number of phases
- Three phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV310HU55N4E is an Altivar ATV310 variable speed drive for asynchronous motors on 380–460 V three-phase supplies, rated 5.5 kW (7.5 HP) in heavy duty and 7.5 kW (10 HP) in normal duty. It is an IP20 drive (IP40 on top) with an integrated keypad and 4-digit display and built-in Modbus RTU communication. Schneider Electric aims the ATV310 at industrial machines such as conveyors, material handling, packaging and printing, textile, woodworking and machine tools; additional EMC input filters are available as options.
Technical reference
| Product name | Schneider Electric ATV310HU55N4E Altivar 310 Variable speed drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV310HU55N4E |
| Category | Variable Frequency Drives |
| EMC filter | Without EMC filter |
| Motor power hp | 7.5 Hp for heavy duty; 10 Hp for normal duty |
| Motor power kW | 5.5 KW for heavy duty; 7.5 KW for normal duty |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Network number of phases | Three phase |
