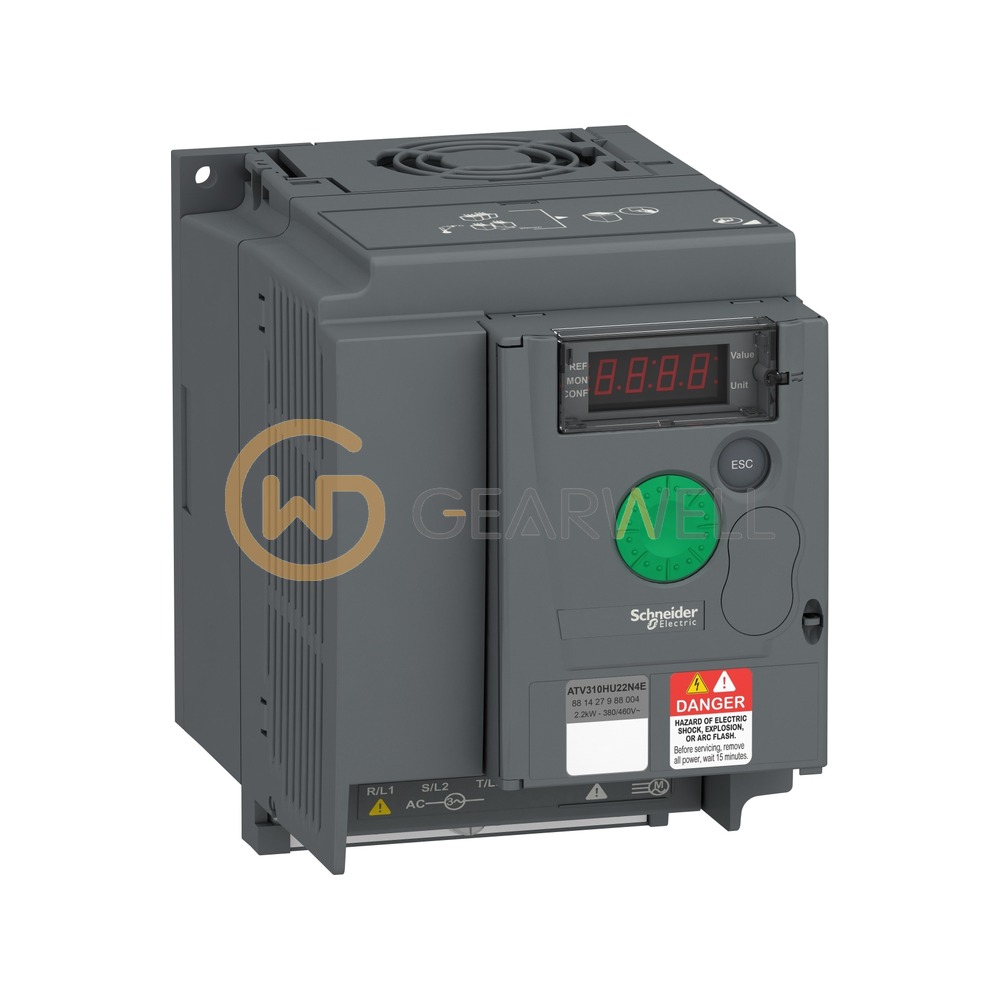

Schneider Electric ATV310HU22N4E Altivar 310 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV310HU22N4E
- GEARWELL SKU
- GWP-000010754
- Category
- Variable Frequency Drives
Key specifications
- Assembly style
- With heat sink
- Motor power hp
- 3 hp for heavy duty
- Motor power kW
- 2.2 kW for heavy duty
- [Us] rated supply voltage
- 380...460 V - 15...10 %
- Network number of phases
- Three phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV310HU22N4E is an Altivar ATV310 variable speed drive for asynchronous motors on 380–460 V three-phase supplies, rated 2.2 kW (3 HP) in heavy duty. It is an IP20 drive (IP40 on top) with an integrated keypad and 4-digit display and built-in Modbus RTU communication. Schneider Electric aims the ATV310 at industrial machines such as conveyors, material handling, packaging and printing, textile, woodworking and machine tools; additional EMC input filters are available as options.
Technical reference
| Product name | Schneider Electric ATV310HU22N4E Altivar 310 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV310HU22N4E |
| Category | Variable Frequency Drives |
| Assembly style | With heat sink |
| Motor power hp | 3 hp for heavy duty |
| Motor power kW | 2.2 kW for heavy duty |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Network number of phases | Three phase |
| Product specific application | Simple machine |
