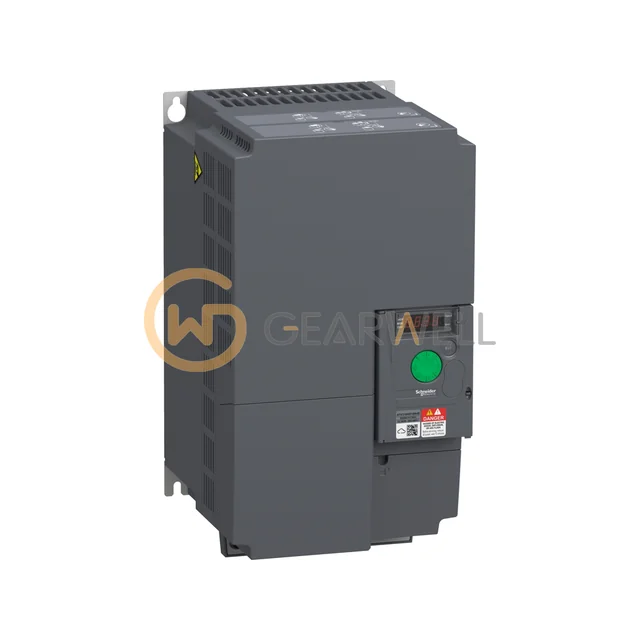

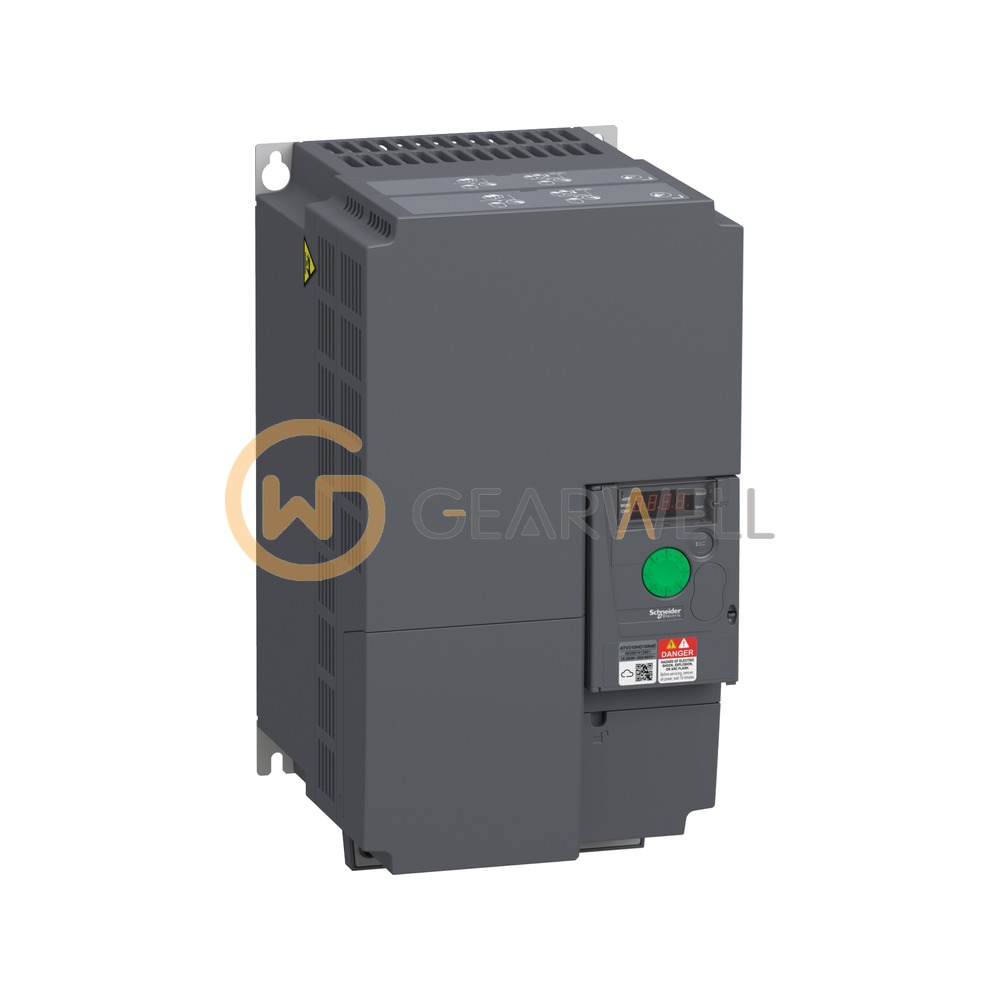

Schneider Electric ATV310HD18N4E Altivar 310 Variable Speed Drive
- Brand
- Schneider Electric
- Model
- ATV310HD18N4E
- GEARWELL SKU
- GWP-000010751
- Category
- Variable Frequency Drives
Key specifications
- Assembly style
- With heat sink
- Motor power hp
- 25 hp for heavy duty; 30 hp for normal duty
- Motor power kW
- 18.5 kW for heavy duty; 22 kW for normal duty
- [Us] rated supply voltage
- 380...460 V - 15...10 %
- Network number of phases
- Three phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Schneider Electric ATV310HD18N4E is an Altivar ATV310 variable speed drive for asynchronous motors on 380–460 V three-phase supplies, rated 18.5 kW (25 HP) in heavy duty and 22 kW (30 HP) in normal duty. It is an IP20 drive (IP40 on top) with an integrated keypad and 4-digit display and built-in Modbus RTU communication. Schneider Electric aims the ATV310 at industrial machines such as conveyors, material handling, packaging and printing, textile, woodworking and machine tools; additional EMC input filters are available as options.
Technical reference
| Product name | Schneider Electric ATV310HD18N4E Altivar 310 Variable Speed Drive |
|---|---|
| Brand | Schneider Electric |
| Model | ATV310HD18N4E |
| Category | Variable Frequency Drives |
| Assembly style | With heat sink |
| Motor power hp | 25 hp for heavy duty; 30 hp for normal duty |
| Motor power kW | 18.5 kW for heavy duty; 22 kW for normal duty |
| [Us] rated supply voltage | 380...460 V - 15...10 % |
| Network number of phases | Three phase |
| Product specific application | Simple machine |
