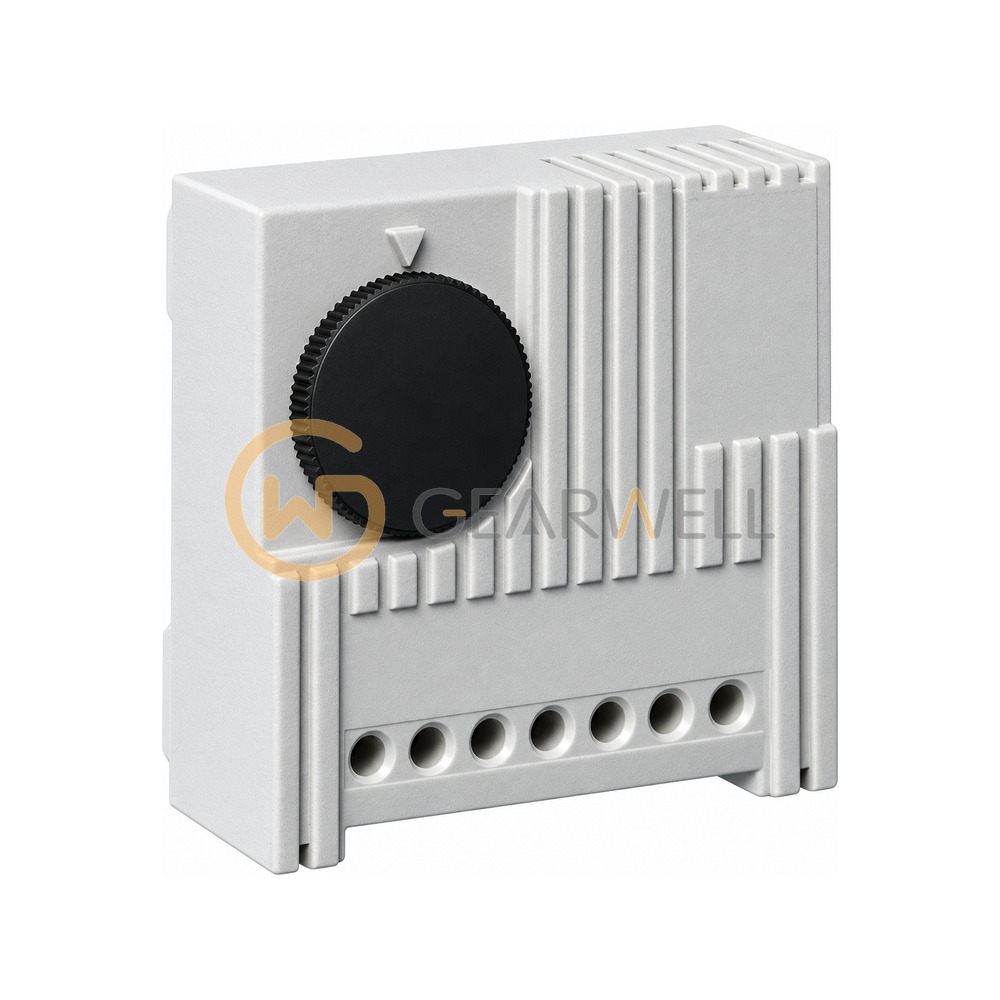

RITTAL SK 3110 Enclosure Internal Thermostat
- Brand
- RITTAL
- Model
- SK 3110
- GEARWELL SKU
- GWP-000015358
- Category
- Pressure, Flow & Temperature
Key specifications
- Contact
- Single-pole change-over, quick-break
- Order no.
- SK 3110.000
- Approvals
- UL + C-UL, VDE
- Contact load
- AC 10 (4) A heating / AC 5 (4) A cooling; DC max. 30 W
- Setting range
- 5 to 60 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | RITTAL SK 3110 Enclosure Internal Thermostat |
|---|---|
| Brand | RITTAL |
| Model | SK 3110 |
| Category | Pressure, Flow & Temperature |
| Contact | Single-pole change-over, quick-break |
| Order no. | SK 3110.000 |
| Approvals | UL + C-UL, VDE |
| Contact load | AC 10 (4) A heating / AC 5 (4) A cooling; DC max. 30 W |
| Setting range | 5 to 60 °C |
| Dimensions (WxHxD) | 71 x 71 x 33.5 mm |
| Switching difference | approx. 1 K ± 0.8 K |
| Rated operating voltage | 24-230 V 1~ / 24-60 V DC |
