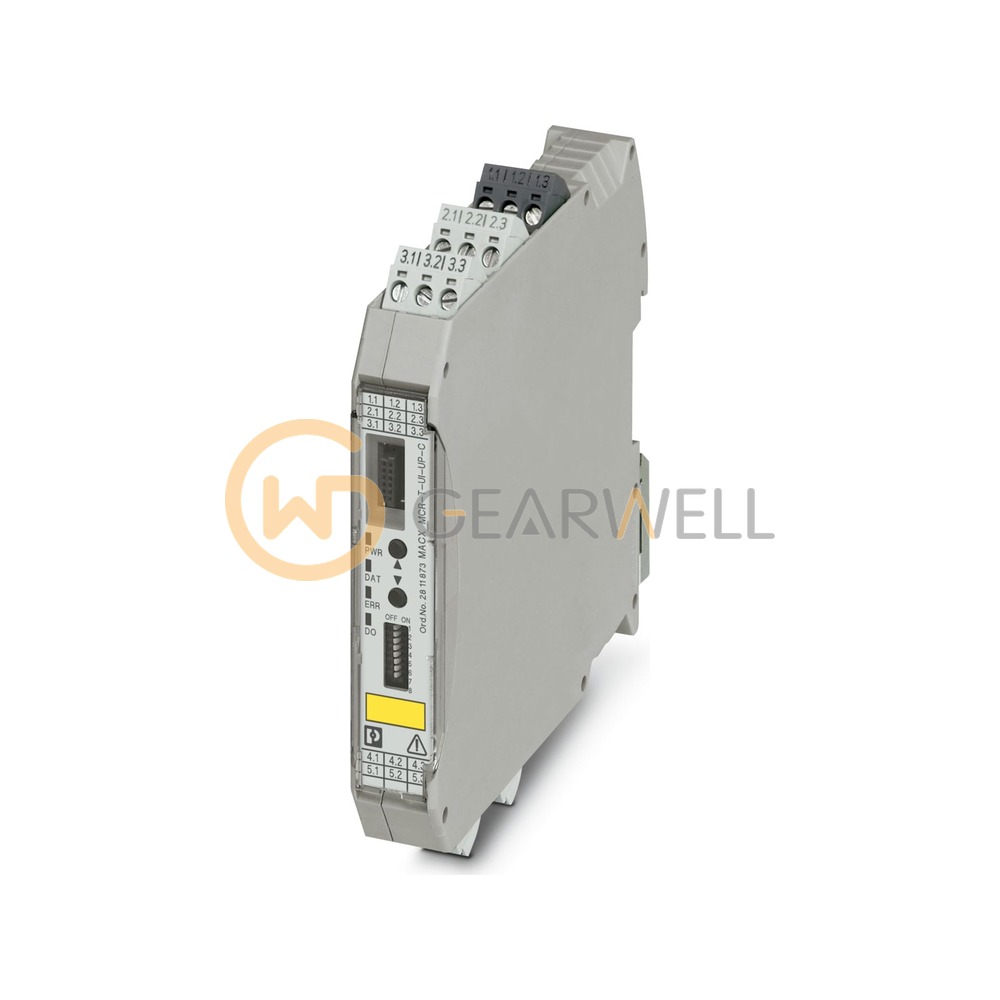

Phoenix Contact 2811873 MACX MCR-T-UI-UP-C Temperature Transducer
- Brand
- Phoenix Contact
- Model
- 2811873
- GEARWELL SKU
- GWP-000017055
- Category
- Pressure, Flow & Temperature
Key specifications
- Order number
- 2811873
- Product type
- Temperature transmitter
- Product family
- MACX Analog
- Type designation
- MACX MCR-T-UI-UP-C
- Code as collected
- MACX MCR-T-UI-UP-C PHOENIX CONTACT 菲尼克斯 温湿度产品
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2811873 MACX MCR-T-UI-UP-C Temperature Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2811873 |
| Category | Pressure, Flow & Temperature |
| Order number | 2811873 |
| Product type | Temperature transmitter |
| Product family | MACX Analog |
| Type designation | MACX MCR-T-UI-UP-C |
| Code as collected | MACX MCR-T-UI-UP-C PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Supply voltage range | 19.2 V AC/DC ... 253 V AC/DC (50/60 Hz) |
| Temperature measuring range | -250 °C ... 2500 °C (Range depending on the sensor type) |
| Nominal supply voltage range | 24 V AC/DC ... 230 V AC/DC -20 % ... +10 % (50/60 Hz) |
| Sensor types that can be used (TC) | B, E, J, K, N, R, S, T, L, U, CA, DA, A1G, A2G, A3G, MG, LG |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors: 2, 3, 4-wire |
