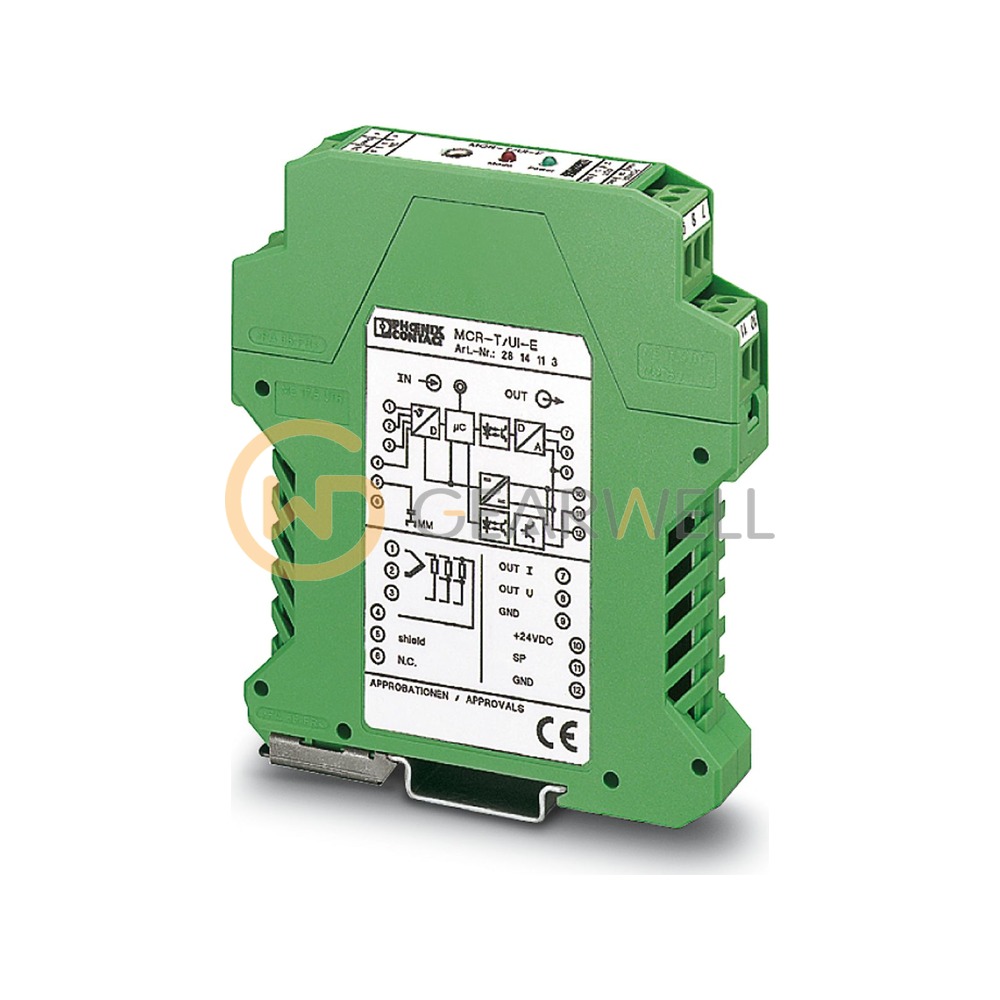

Phoenix Contact 2814113 MCR-T-UI-E Temperature Transducer
- Brand
- Phoenix Contact
- Model
- 2814113
- GEARWELL SKU
- GWP-000017057
- Category
- Pressure, Flow & Temperature
Key specifications
- Order number
- 2814113
- Product type
- Temperature transmitter
- Type designation
- MCR-T-UI-E
- Code as collected
- MCR-T-UI-E PHOENIX CONTACT 菲尼克斯 温湿度产品
- Supply voltage range
- 18 V DC ... 30 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Phoenix Contact 2814113 MCR-T-UI-E Temperature Transducer |
|---|---|
| Brand | Phoenix Contact |
| Model | 2814113 |
| Category | Pressure, Flow & Temperature |
| Order number | 2814113 |
| Product type | Temperature transmitter |
| Type designation | MCR-T-UI-E |
| Code as collected | MCR-T-UI-E PHOENIX CONTACT 菲尼克斯 温湿度产品 |
| Supply voltage range | 18 V DC ... 30 V DC |
| Current output signal | 0 mA ... 20 mA |
| Temperature measuring range | Depending on sensor type used |
| Sensor types that can be used (TC) | U, T, L, J, E, K, N, S, R, B, C, W, HK |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors |
| Temperature measuring range: Pt 100 | -200 °C ... 850 °C (freely adjustable) |
