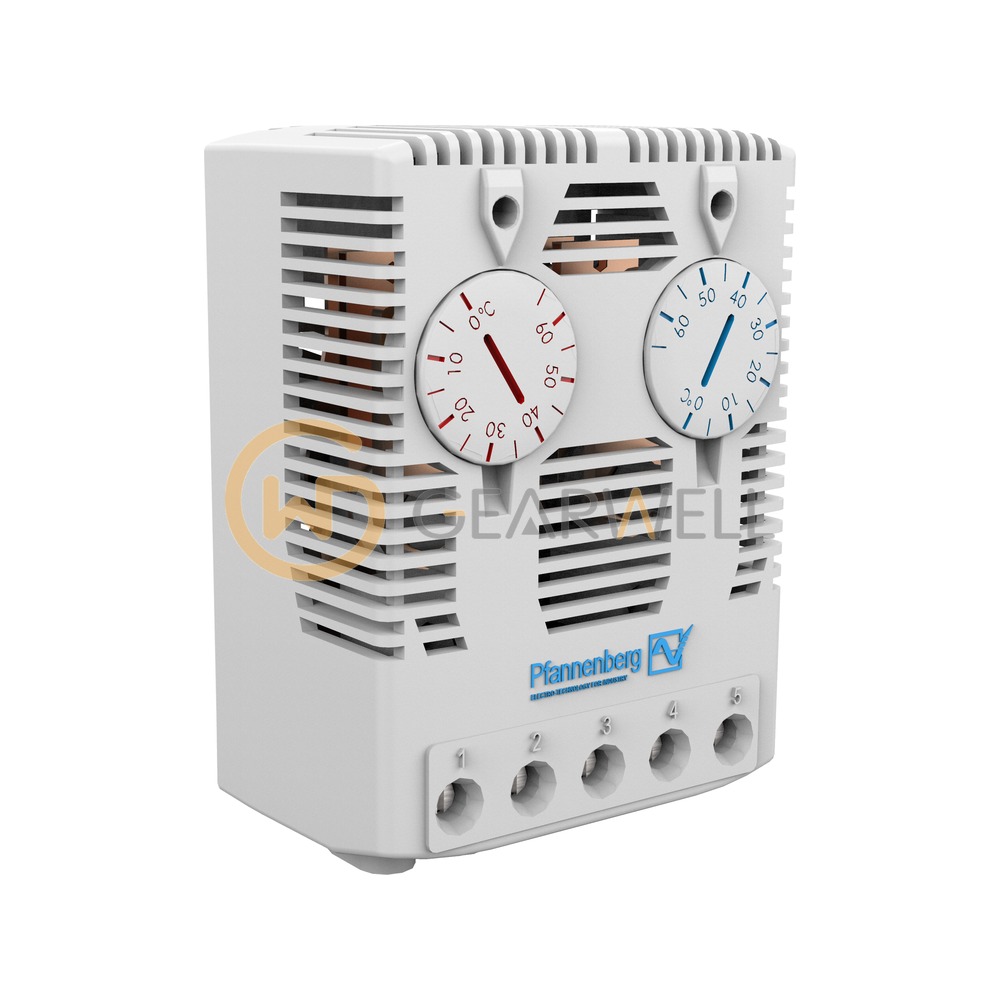

Pfannenberg FLZ541 FLZ 540 Twin Series Enclosure Twin Thermostat
- Brand
- Pfannenberg
- Model
- FLZ541
- GEARWELL SKU
- GWP-000017040
- Category
- Filtration & Accessories
Key specifications
- Mounting
- Snap fastening for 35 mm rail to EN 60715
- Approvals
- cURus, EAC, CSA
- Protection
- IP20
- Setting range
- 0 to +60 °C
- Article number
- 17141000000
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pfannenberg FLZ541 FLZ 540 Twin Series Enclosure Twin Thermostat |
|---|---|
| Brand | Pfannenberg |
| Model | FLZ541 |
| Category | Filtration & Accessories |
| Mounting | Snap fastening for 35 mm rail to EN 60715 |
| Approvals | cURus, EAC, CSA |
| Protection | IP20 |
| Setting range | 0 to +60 °C |
| Article number | 17141000000 |
| Type of contact | N.C. / N.O. with spring contact |
| Max. switching power | N.C. 240 V AC / 10 (2) A; N.O. 120 V AC / 15 (2) A; DC max. 30 (as stated on the official page) |
| Switching point tolerance | ±4 K |
| Operating temperature range | -40 to +80 °C |
| Switching temperature difference | <7 K |
