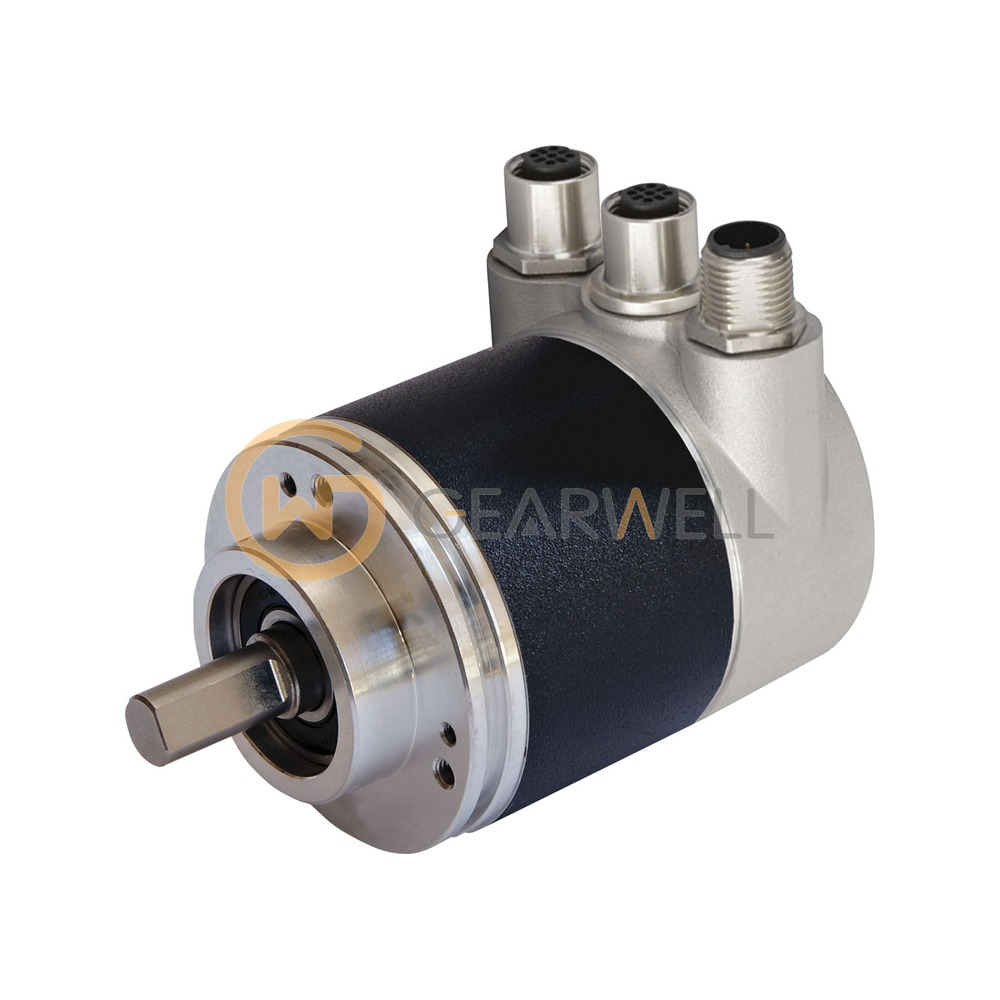

Pepperl+Fuchs EVM58N-011PNR0BN-1213 EVM58 Multiturn Absolute Encoder

Key specifications

Shaft: Ø10 x 20 solid shaft, clamping flange mm
Connection: Ethernet: 2 sockets M12 x 1, 4-pin, D-coded; supply: 1 plug M12 x 1, 4-pin, A-coded
Interface type: PROFINET IO
Operating voltage: 10 ... 30 V DC
Power consumption: max. 4 W

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Pepperl+Fuchs EVM58N-011PNR0BN-1213 EVM58 Multiturn Absolute Encoder
Brand	Pepperl+Fuchs
Model	EVM58N-011PNR0BN-1213
Category	Encoders & Position
Shaft	Ø10 x 20 solid shaft, clamping flange mm
Connection	Ethernet: 2 sockets M12 x 1, 4-pin, D-coded; supply: 1 plug M12 x 1, 4-pin, A-coded
Interface type	PROFINET IO
Operating voltage	10 ... 30 V DC
Power consumption	max. 4 W
Type code decoding	E=Ethernet, V=solid shaft, M=multiturn, 58=58 mm, N=aluminum powder coated, 01=shaft 10 x 20 mm, 1=clamping flange, PN=PROFINET, R=radial, 0=no option, B=binary, N=normal temperature, 12=12-bit multiturn, 13=13-bit singleturn
Resolution multiturn	12 (4096 revolutions) bit
Operating temperature	-40 ... 85 °C
Resolution singleturn	13 (8192 steps) bit
