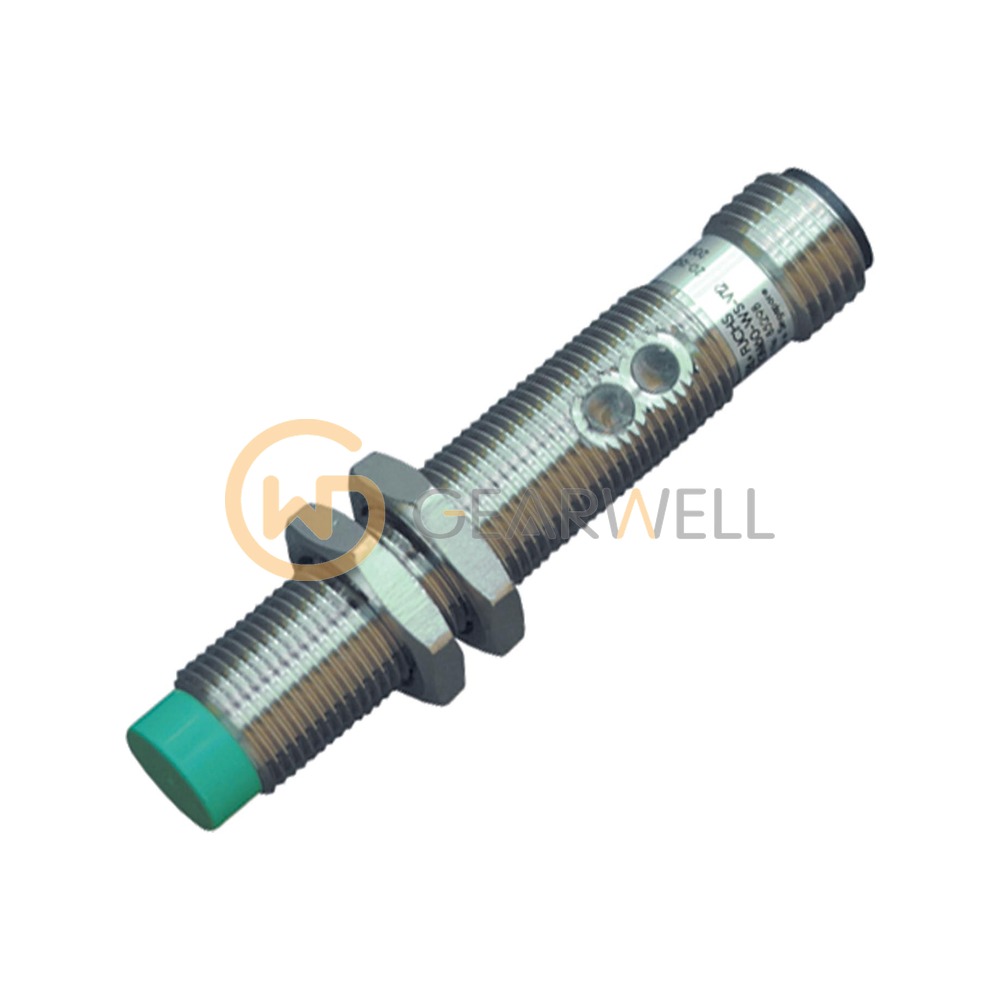

Pepperl+Fuchs 85298 NBN4-12GM60-WS-V12 Inductive Sensor M12
- Brand
- Pepperl+Fuchs
- Model
- 85298
- GEARWELL SKU
- GWP-000013558
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output type
- Two-wire
- Installation
- Non-flush
- Connection type
- Connector plug 1/2"-20 UN, 3-pin
- Type designation
- NBN4-12GM60-WS-V12
- Operating current
- 5 ... 200 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Pepperl+Fuchs 85298 NBN4-12GM60-WS-V12 Inductive Sensor M12 |
|---|---|
| Brand | Pepperl+Fuchs |
| Model | 85298 |
| Category | Proximity & Photoelectric Sensors |
| Output type | Two-wire |
| Installation | Non-flush |
| Connection type | Connector plug 1/2"-20 UN, 3-pin |
| Type designation | NBN4-12GM60-WS-V12 |
| Operating current | 5 ... 200 mA |
| Operating voltage | 20 ... 150 V |
| Switching function | Normally open (NO) |
| Ambient temperature | -25 ... 70 °C |
| Order number (official) | 085298 |
| Rated operating distance | 4 mm |
