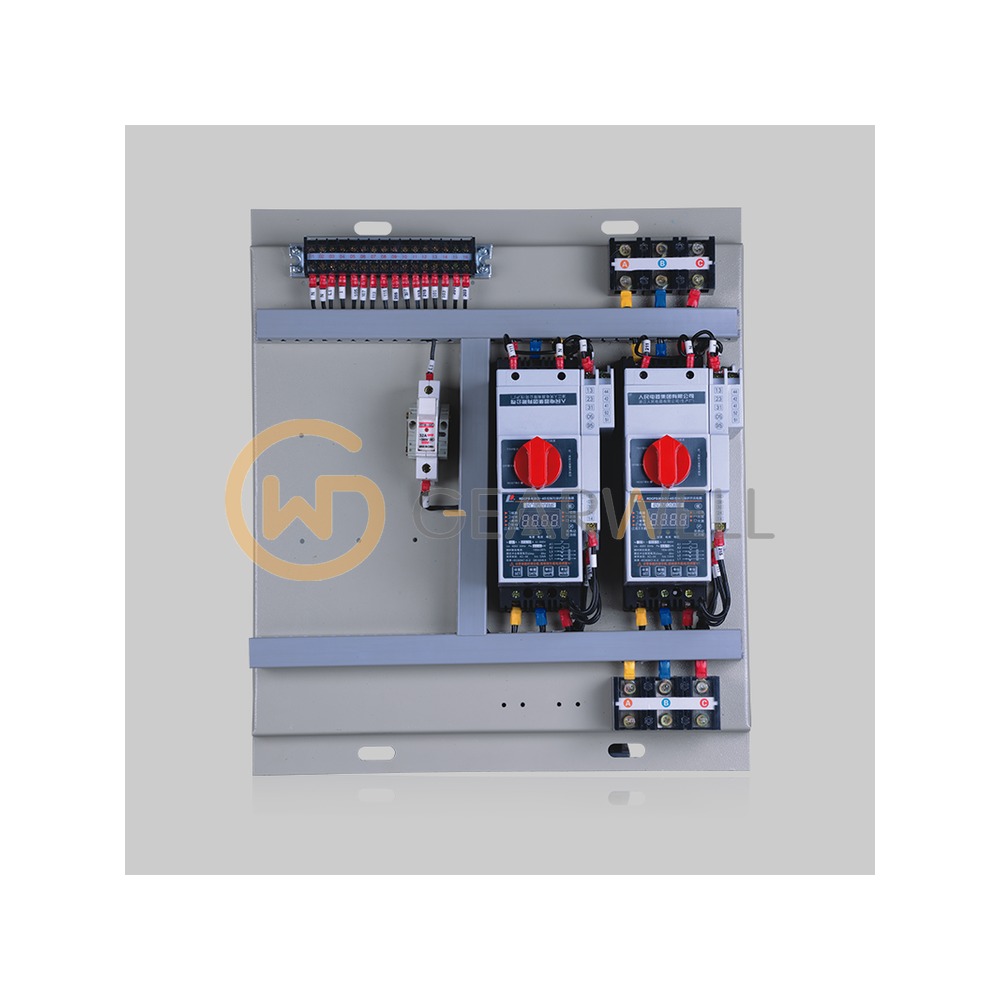

People Electric RDCPSN-45C/M2.5/06ML 30mA Reversing CPS Unit
- Brand
- People Electric
- Model
- RDCPSN-45C/M2.5/06ML 30mA
- GEARWELL SKU
- GWP-000013746
- Category
- Contactors & Starters
Key specifications
- Controller
- M (economy type intelligent controller)
- Derived code
- L (earth-leakage protection)
- Material number
- 101002012010752
- Code suffix "30mA"
- as collected (rated residual operating current of the leakage version); not listed in the official model-number table
- Frame (shell) current
- 45 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | People Electric RDCPSN-45C/M2.5/06ML 30mA Reversing CPS Unit |
|---|---|
| Brand | People Electric |
| Model | RDCPSN-45C/M2.5/06ML 30mA |
| Category | Contactors & Starters |
| Controller | M (economy type intelligent controller) |
| Derived code | L (earth-leakage protection) |
| Material number | 101002012010752 |
| Code suffix "30mA" | as collected (rated residual operating current of the leakage version); not listed in the official model-number table |
| Frame (shell) current | 45 A |
| Auxiliary contact code | 06 (3 NO + 3 NC + 1 short-circuit + 1 fault signal contact) |
| Control supply voltage | AC 220 (code M) V |
| Rated insulation voltage Ui | 690 V |
| Intelligent controller rated current Ie | 2.5 A |
| Rated service short-circuit breaking capacity Ics (code C) | 12 kA |
