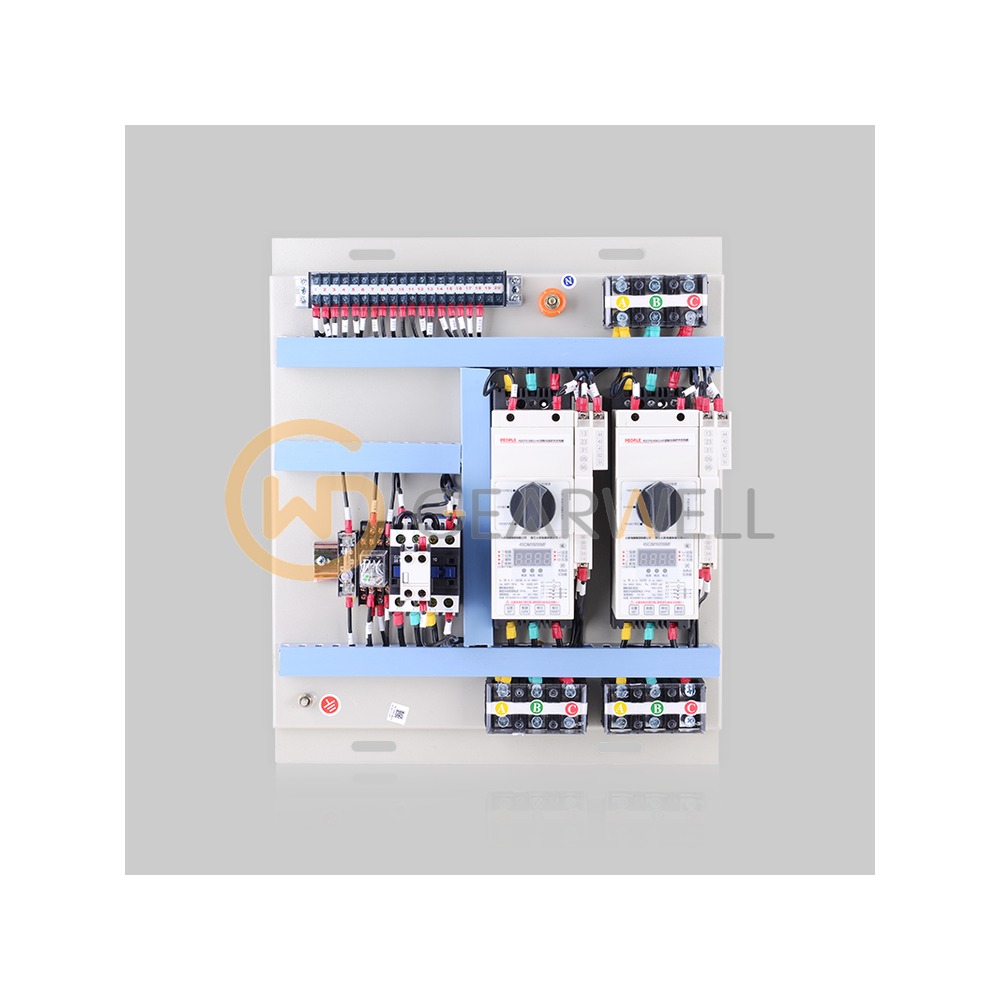

People Electric RDCPSD-45C/M16/M2.5/02QF Two-Speed Controller

Key specifications

Controller: M (economy type intelligent controller)
Derived code: F (fire-fighting: overload alarm only, no trip)
Frame "45" (RDCPSD): as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125
Material number: 101002012010401
Frame (shell) current: 45 A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	People Electric RDCPSD-45C/M16/M2.5/02QF Two-Speed Controller
Brand	People Electric
Model	RDCPSD-45C/M16/M2.5/02QF
Category	Contactors & Starters
Controller	M (economy type intelligent controller)
Derived code	F (fire-fighting: overload alarm only, no trip)
Frame "45" (RDCPSD)	as collected; RDCPSD catalogue tabulates 63 / 125 A frames, RDCPS series key lists 45 / 63 / 125
Material number	101002012010401
Frame (shell) current	45 A
Auxiliary contact code	02
Control supply voltage	AC 380 (code Q) V
Low-speed rated current Ie	2.5 A
High-speed rated current Ie	16 A
Rated service short-circuit breaking capacity Ics (code C)	12 kA
