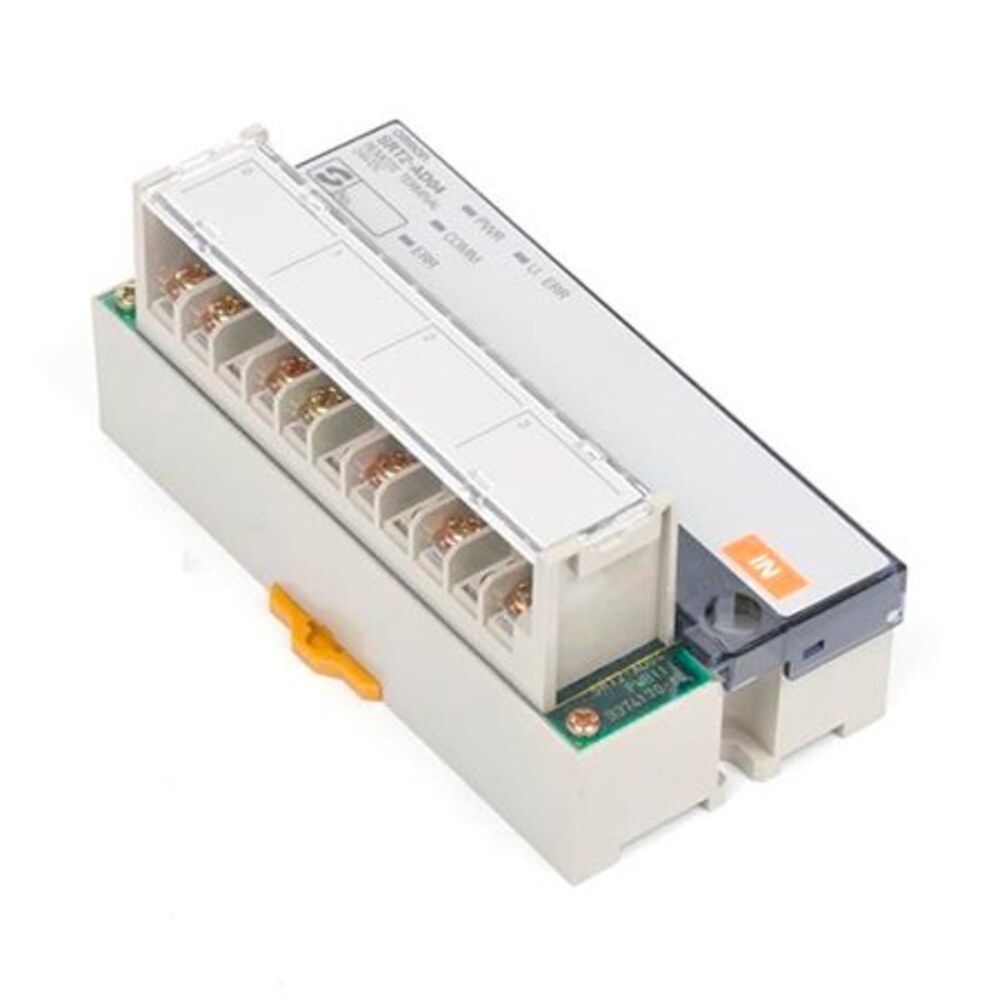

OMRON SRT2-AD04 Input Module
- Brand
- OMRON
- Model
- SRT2-AD04
- GEARWELL SKU
- GWP-000001952
- Category
- Industrial Automation Parts
Key specifications
- Accuracy
- Voltage ±0.3% FS; current ±0.4% FS at 25 °C
- Dimensions
- 105 × 48 × 50 mm (W × H × D)
- Resolution
- 1/6000 full scale
- Input types
- Voltage or current
- Input points
- 1 to 4, DIP-switch selectable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON SRT2-AD04 is a CompoBus/S Analog Input Terminal with 1 to 4 input points selected by DIP switch, set to 0 to 5 V, 1 to 5 V, 0 to 10 V, −10 to 10 V, 4 to 20 mA or 0 to 20 mA. Resolution is 1/6,000 (FS) and conversion takes 1 ms per point (4 ms/4 points), with a total accuracy at 25°C of ±0.3% FS for voltage and ±0.4% FS for current input; mean value processing over 8 operations can be switched on. It runs on a 14 to 26.4 VDC communications power supply with 100 mA max. current consumption. It measures 105 x 48 x 50 mm (W x H x D) and weighs approx. 120 g.
Technical reference
| Product name | OMRON SRT2-AD04 Input Module |
|---|---|
| Brand | OMRON |
| Model | SRT2-AD04 |
| Category | Industrial Automation Parts |
| Accuracy | Voltage ±0.3% FS; current ±0.4% FS at 25 °C |
| Dimensions | 105 × 48 × 50 mm (W × H × D) |
| Resolution | 1/6000 full scale |
| Input types | Voltage or current |
| Input points | 1 to 4, DIP-switch selectable |
| Product type | Analog input terminal |
| Conversion time | 1 ms per point; 4 ms for 4 points |
| Communications power | 14 to 26.4 VDC |
