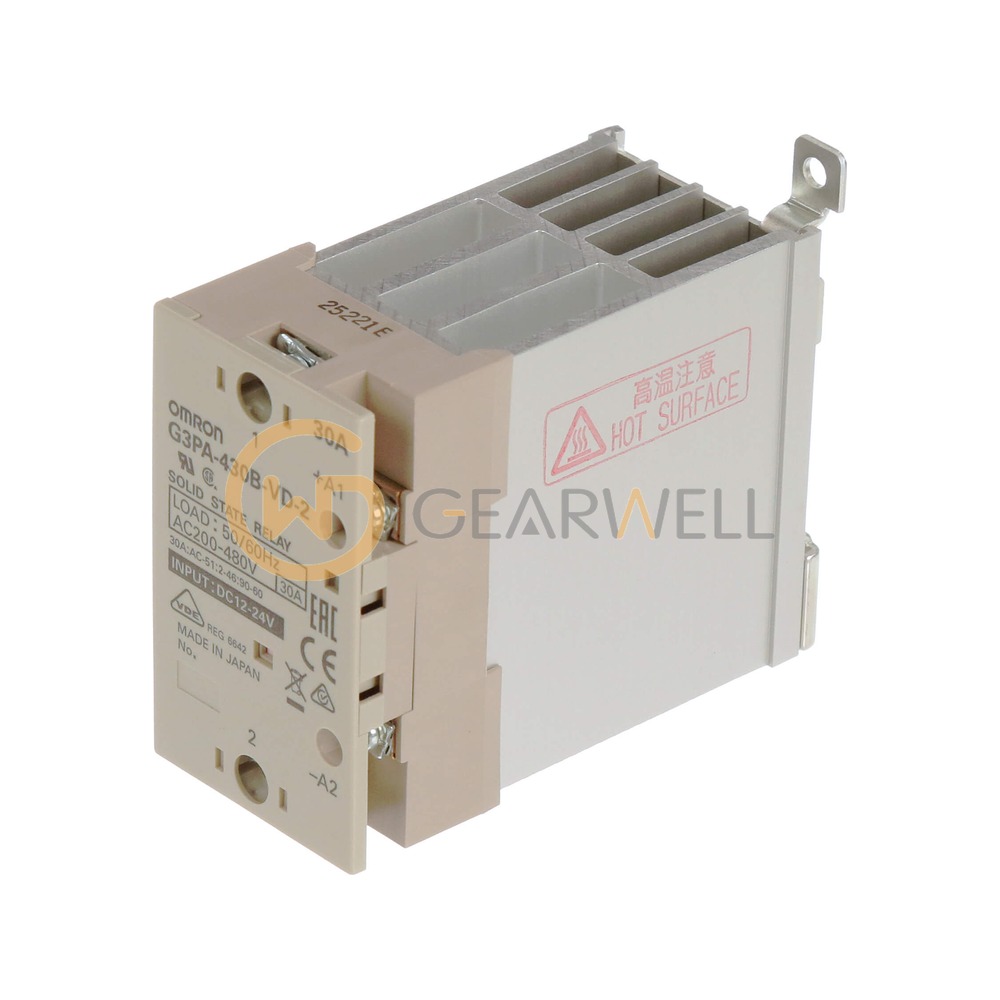

OMRON G3PA-430B-VD-2 G3PA Solid State Relay
- Brand
- OMRON
- Model
- G3PA-430B-VD-2
- GEARWELL SKU
- GWP-000011575
- Category
- Contactors & Starters
Key specifications
- Mounting
- DIN rail
- Isolation
- Phototriac
- Load current
- 30 A (AC-1)
- Input voltage
- 12 to 24 VDC
- Terminal type
- Screw
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON G3PA-430B-VD-2 is a G3PA solid state relay with integrated heat sink and replaceable power element cartridge, in the 480-V version. It switches 0.5 to 30 A at 30°C at a rated load voltage of 200 to 480 VAC (load voltage range 180 to 528 VAC, 50/60 Hz), with zero cross function, operation indicator and phototriac coupler isolation. The input is 12 to 24 VDC (operating range 9.6 to 30 VDC, 7 mA max.), the inrush current is 440 A (60 Hz, 1 cycle) and VDRM is 1,200 V. It has screw terminals, mounts with screws or on DIN track, has a dielectric strength of 4,000 VAC between input and load and weighs approx. 410 g; the replacement power device cartridge is G32A-A430-VD-2 DC12-24.
Technical reference
| Product name | OMRON G3PA-430B-VD-2 G3PA Solid State Relay |
|---|---|
| Brand | OMRON |
| Model | G3PA-430B-VD-2 |
| Category | Contactors & Starters |
| Mounting | DIN rail |
| Isolation | Phototriac |
| Load current | 30 A (AC-1) |
| Input voltage | 12 to 24 VDC |
| Terminal type | Screw |
| Rated load voltage | 200 to 480 VAC |
| Dimensions (H x W x D) | 100 x 47 x 100 mm |
| Operating temperature | -30 to 80 °C |
