OMRON G2RV-1-S-G DC21 G2RV Replacement Relay
- Brand
- OMRON
- Model
- G2RV-1-S-G DC21
- GEARWELL SKU
- GWP-000011574
- Category
- Contactors & Starters
Key specifications
- Mounting
- Socket
- Contact form
- SPDT
- Contact material
- Ag alloy
- Coil rated voltage
- 21 VDC
- Terminal structure
- Plug-in terminal
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

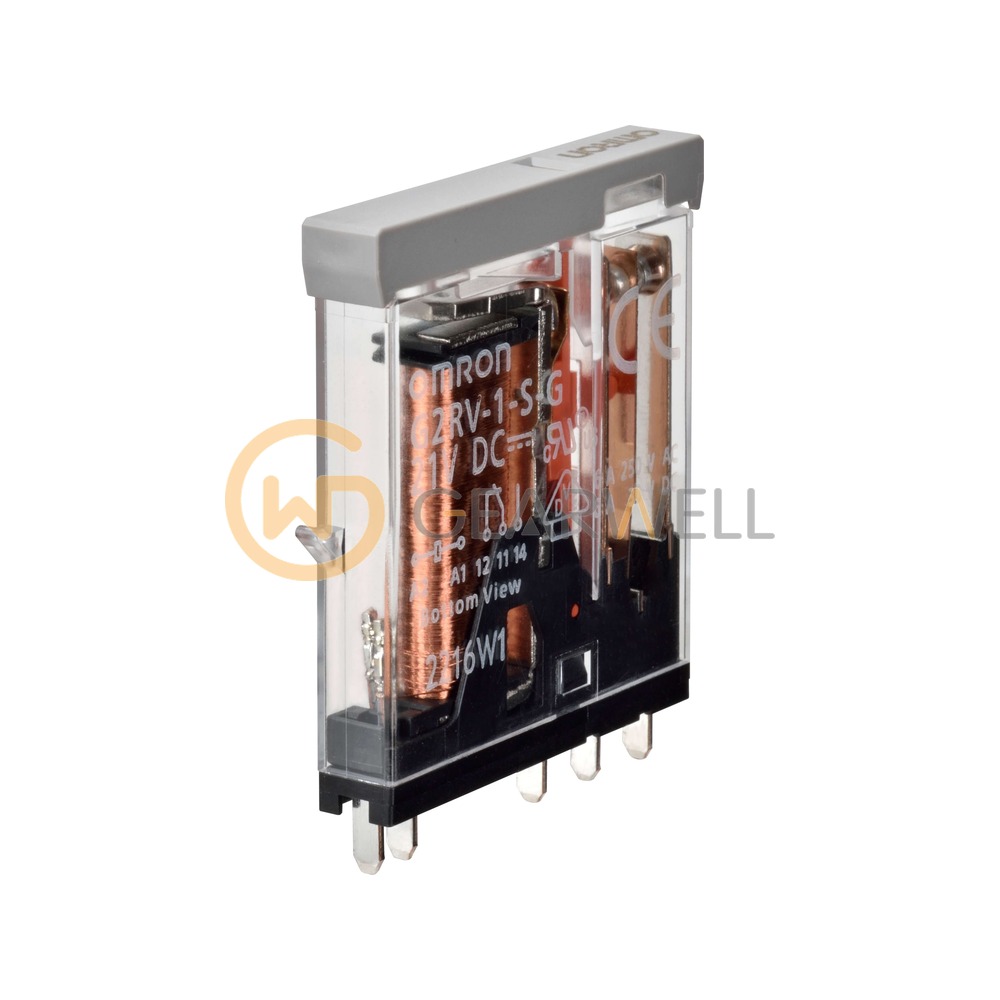

The OMRON G2RV-1-S-G DC21 is the replacement (maintenance) relay for the standard G2RV-SR slim I/O relays, a 1-pole plug-in relay without latching lever and with Ag alloy contacts, rated at 21 VDC coil voltage. The datasheet notes that the voltage is reduced inside the slim I/O relay socket, so the coil voltage of the replacement relay differs from the rated input voltage of the slim I/O relay it goes into. The standard G2RV-SR relays it is used in have an SPDT contact rated 6 A at 250 VAC and 6 A at 30 VDC (resistive load). The relay measures 5.2 max. × 33 max. × 30.5 max. mm.
Technical reference
| Product name | OMRON G2RV-1-S-G DC21 G2RV Replacement Relay |
|---|---|
| Brand | OMRON |
| Model | G2RV-1-S-G DC21 |
| Category | Contactors & Starters |
| Mounting | Socket |
| Contact form | SPDT |
| Contact material | Ag alloy |
| Coil rated voltage | 21 VDC |
| Terminal structure | Plug-in terminal |
