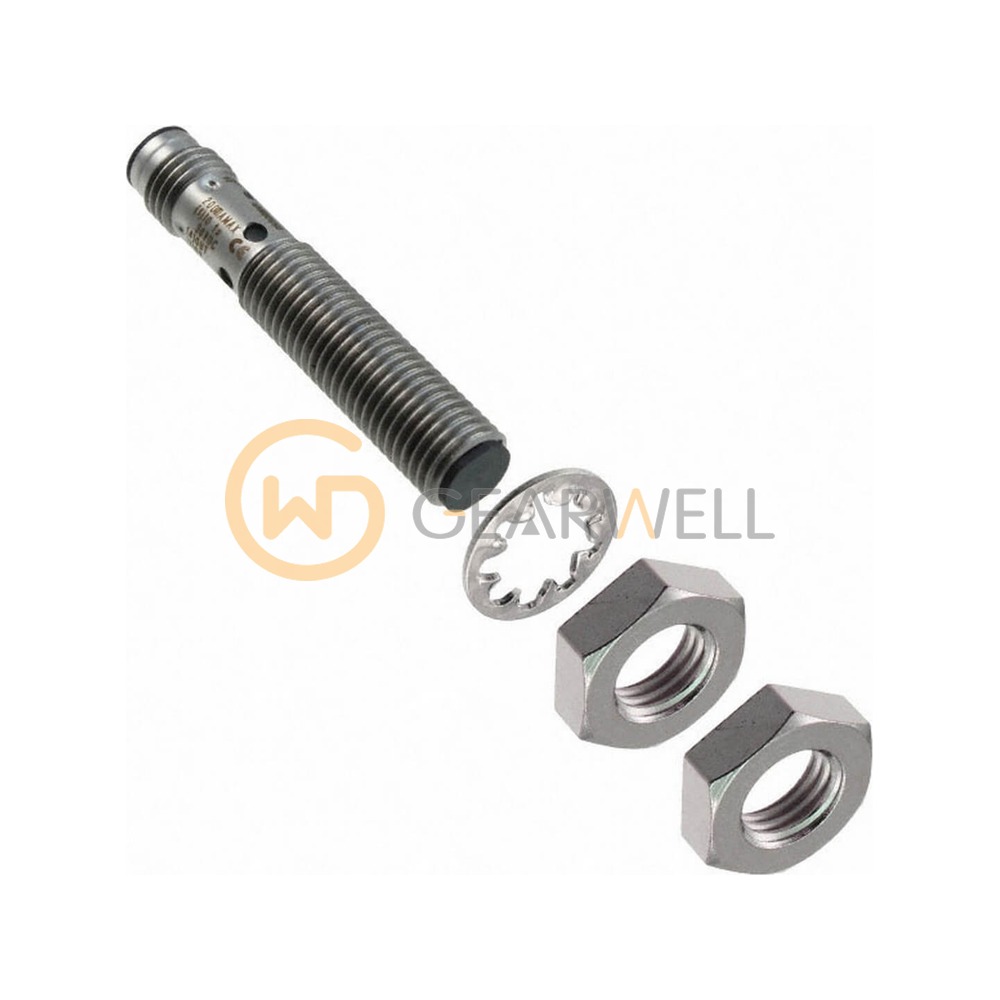

OMRON E2B-S08KS02-MC-B1 E2B Inductive Proximity Sensor
- Brand
- OMRON
- Model
- E2B-S08KS02-MC-B1
- GEARWELL SKU
- GWP-000007815
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Size
- M8
- Output
- PNP NO
- Connection
- M8 connector, 3-pin
- Mounting type
- Flush (shielded)
- Overall length
- 44 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON E2B-S08KS02-MC-B1 is an M8 cylindrical inductive proximity sensor from the E2B series, in the shielded double-distance version with a short stainless steel body and an M8 3-pin connector. It senses ferrous metal at 2 mm ±10% (setting distance 0 to 1.6 mm) with a response frequency of 1,500 Hz. It runs on 10 to 30 VDC, draws 10 mA max. and has a PNP open collector output, normally open, switching up to 200 mA (30 VDC max.). It is rated IP67, works at -25 to 70ºC and weighs approx. 20 g in the connector version.
Technical reference
| Product name | OMRON E2B-S08KS02-MC-B1 E2B Inductive Proximity Sensor |
|---|---|
| Brand | OMRON |
| Model | E2B-S08KS02-MC-B1 |
| Category | Proximity & Photoelectric Sensors |
| Size | M8 |
| Output | PNP NO |
| Connection | M8 connector, 3-pin |
| Mounting type | Flush (shielded) |
| Overall length | 44 mm |
| Housing material | Stainless steel |
| Sensing distance | 2 mm |
| Degree of protection | IP67 |
