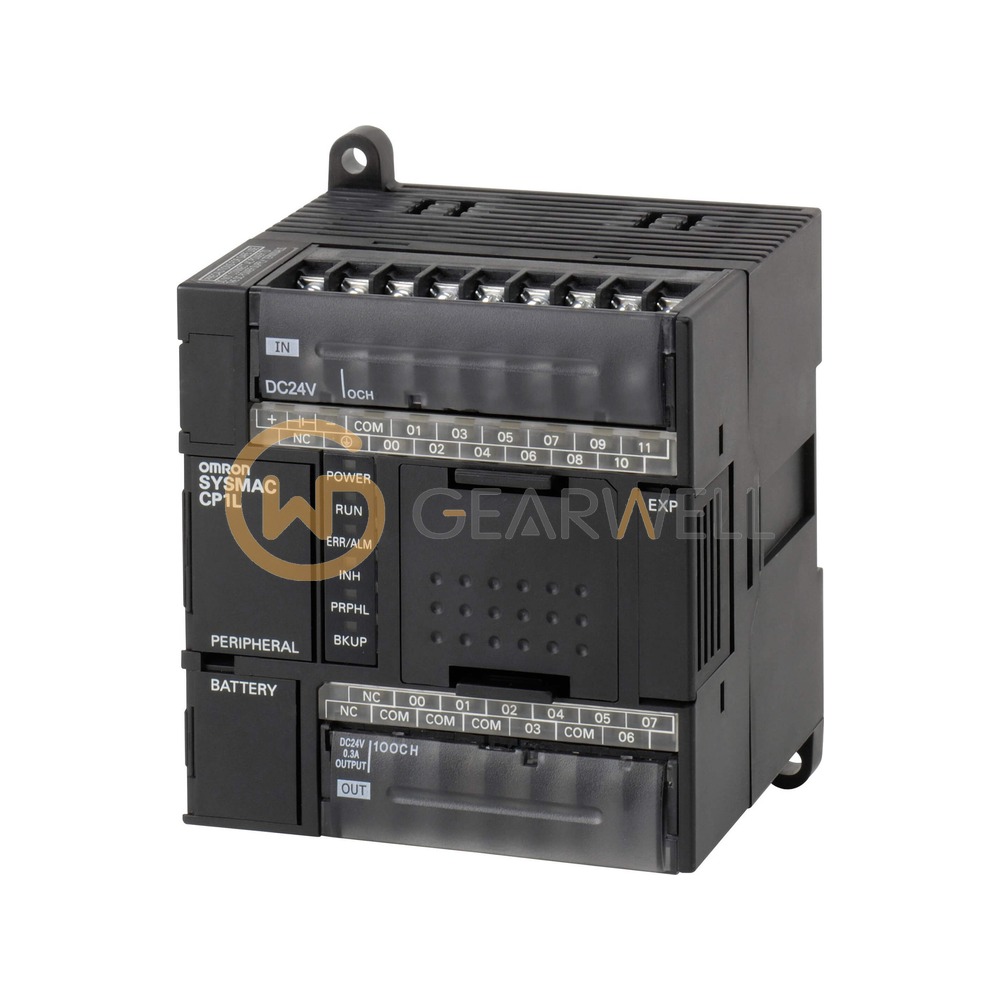

OMRON CP1L-L20DR-A CP1L Compact PLC
- Brand
- OMRON
- Model
- CP1L-L20DR-A
- GEARWELL SKU
- GWP-000007812
- Category
- PLCs & I/O
Key specifications
- Weight
- 380 g
- Digital inputs
- 12
- Supply voltage
- 100 to 240 V AC
- Digital outputs
- 8 (relay)
- Program capacity
- 5 K steps
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CP1L-L20DR-A is a CP1L-L compact PLC CPU unit with 20 I/O points: 12 inputs and 8 relay outputs. It is powered from 100 to 240 VAC 50/60 Hz (85 to 264 VAC operating range) with 30 VA max. power consumption. Program capacity is 5K steps and the high-speed counters handle 100 kHz on 4 axes; pulse outputs are only on the transistor-output models. It has a built-in USB peripheral port, and Option Boards add RS-232C or RS-422A/485 serial communications.
Technical reference
| Product name | OMRON CP1L-L20DR-A CP1L Compact PLC |
|---|---|
| Brand | OMRON |
| Model | CP1L-L20DR-A |
| Category | PLCs & I/O |
| Weight | 380 g |
| Digital inputs | 12 |
| Supply voltage | 100 to 240 V AC |
| Digital outputs | 8 (relay) |
| Program capacity | 5 K steps |
| Dimensions (H x W x D) | 90 x 86 x 85 mm |
| Max. local I/O points | 60 |
| Operating temperature | 0 to 55 °C |
