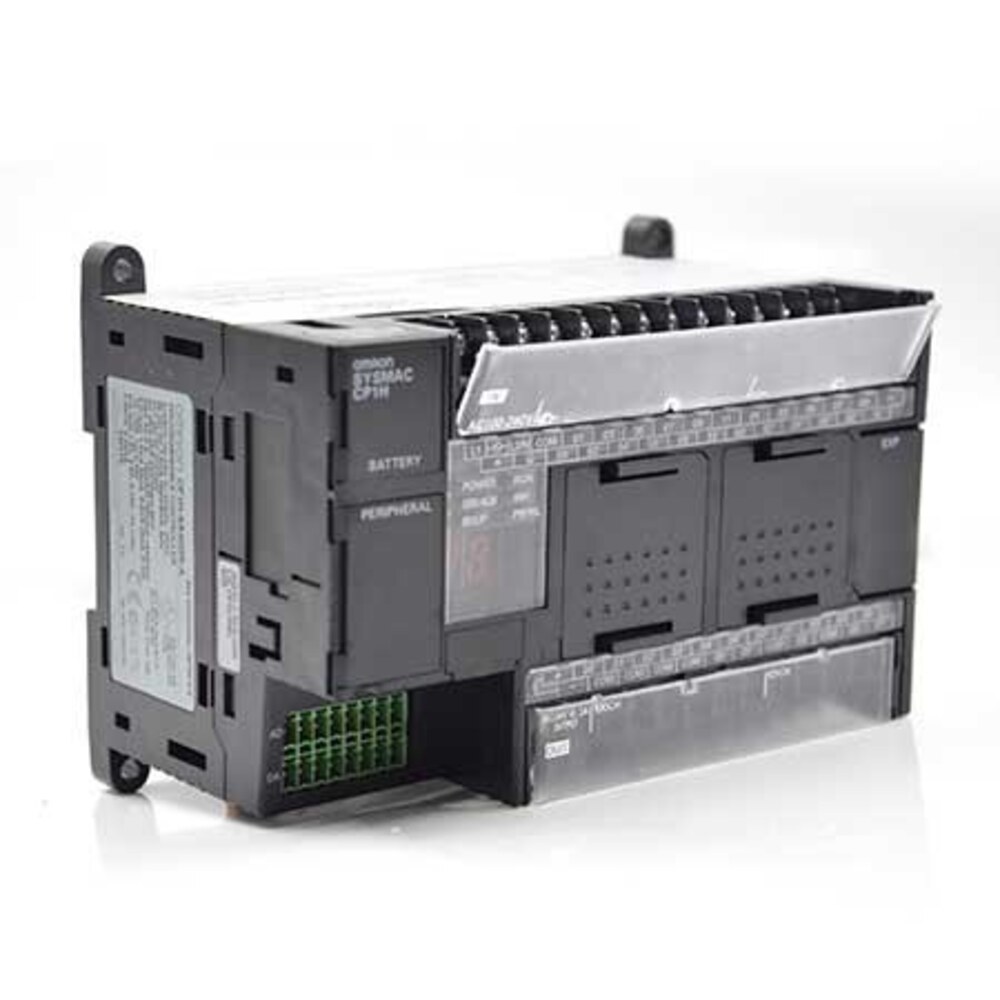

OMRON CP1H-XA40DR-A CP1H-XA Programmable Controller CPU Unit
- Brand
- OMRON
- Model
- CP1H-XA40DR-A
- GEARWELL SKU
- GWP-000002440
- Category
- Industrial Automation Parts
Key specifications
- Power supply
- AC power supply
- Product type
- CP1H-XA programmable controller CPU unit
- Analog inputs
- 4
- Output method
- Relay output
- Analog outputs
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CP1H-XA40DR-A is a CP1H-XA compact PLC CPU unit with AC power supply (100 to 240 VAC 50/60 Hz), 24 built-in inputs, 16 relay outputs and built-in analog I/O with 4 analog inputs and 2 analog outputs. Program capacity is 20K steps and the high-speed counters handle 100 kHz on 4 axes; pulse outputs are only on the transistor-output models. It has a USB peripheral port and two Option Board slots for serial (RS-232C, RS-422A/485), Ethernet or LCD boards. Power consumption is 100 VA max. and it provides a 300 mA external 24 VDC supply.
Technical reference
| Product name | OMRON CP1H-XA40DR-A CP1H-XA Programmable Controller CPU Unit |
|---|---|
| Brand | OMRON |
| Model | CP1H-XA40DR-A |
| Category | Industrial Automation Parts |
| Power supply | AC power supply |
| Product type | CP1H-XA programmable controller CPU unit |
| Analog inputs | 4 |
| Output method | Relay output |
| Analog outputs | 2 |
| Digital inputs | 24 |
| Digital outputs | 16 |
| Program capacity | 20K steps |
