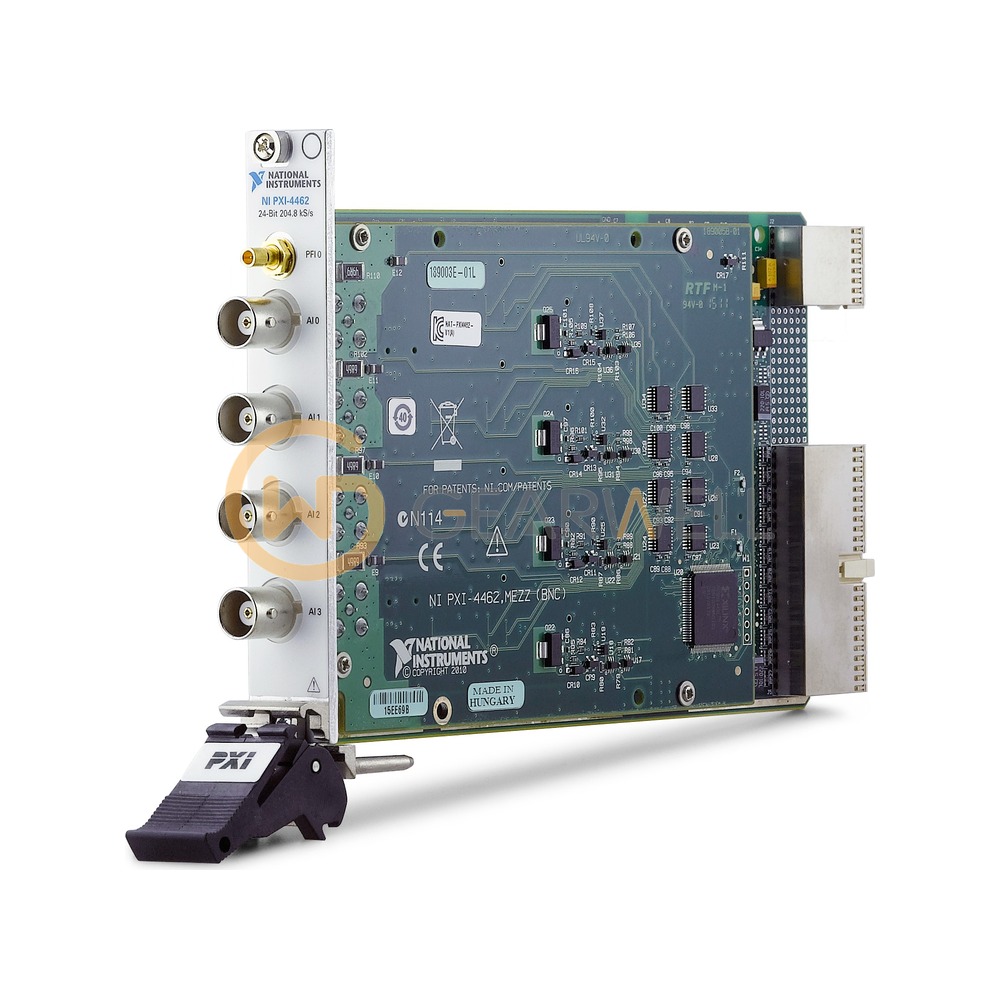

National Instruments PXI-4462 4-Input Sound and Vibration Module
- Brand
- National Instruments
- Model
- PXI-4462
- GEARWELL SKU
- GWP-000014868
- Category
- Test & Measurement
Key specifications
- Resolution
- 24 bits
- Seller code
- PXI-4462 188261H-11L
- Part numbers
- 779131-01, 779688-01 (PXI hybrid), 188261-01 (board-only kit)
- Dynamic range
- 118 dB
- Gain settings
- 6
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments PXI-4462 4-Input Sound and Vibration Module |
|---|---|
| Brand | National Instruments |
| Model | PXI-4462 |
| Category | Test & Measurement |
| Resolution | 24 bits |
| Seller code | PXI-4462 188261H-11L |
| Part numbers | 779131-01, 779688-01 (PXI hybrid), 188261-01 (board-only kit) |
| Dynamic range | 118 dB |
| Gain settings | 6 |
| Input channels | 4 differential |
| Front connectors | BNC (4), SMB (1) |
| Maximum sample rate | 204.8 kS/s |
