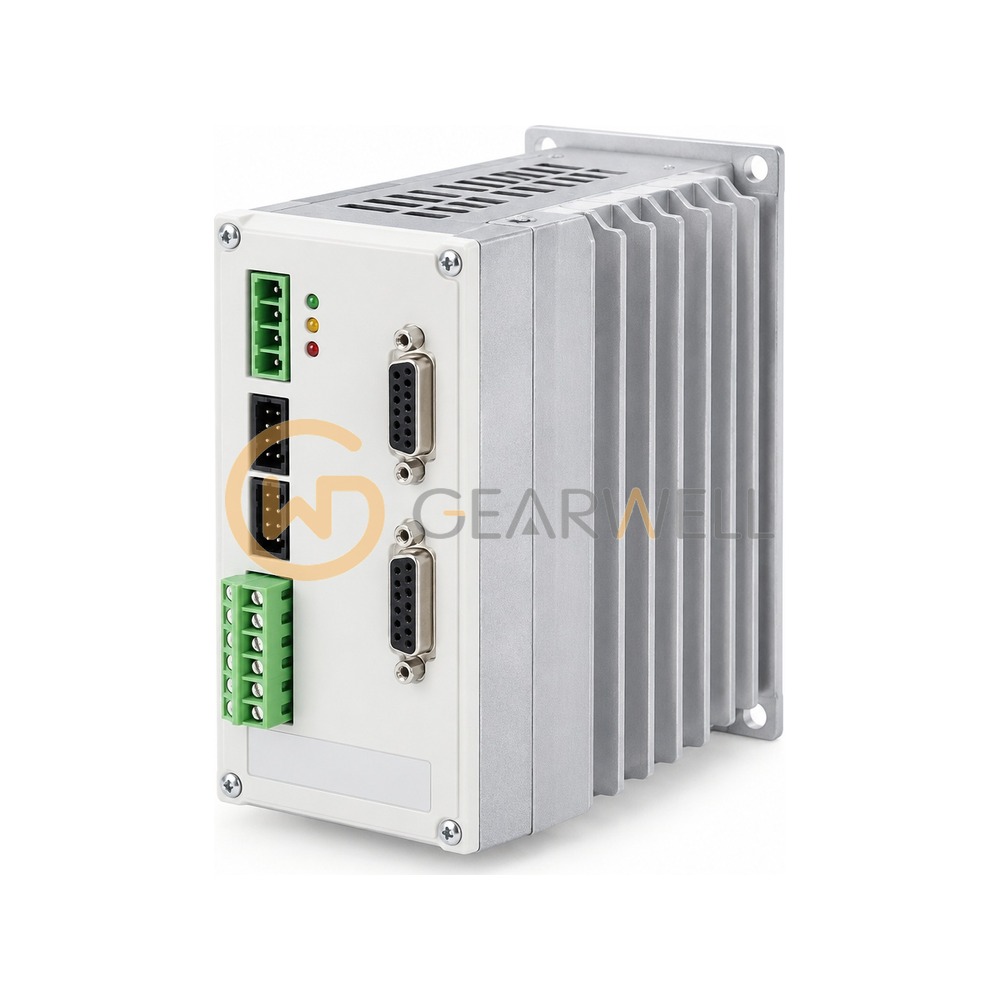

National Instruments NI-9505 C Series DC Brushed Servo Drive Module
- Brand
- National Instruments
- Model
- NI-9505
- GEARWELL SKU
- GWP-000034736
- Category
- Servo Systems
Key specifications
- Weight
- 155 g
- Evidence
- National Instruments 374211H-01 NI 9505 Operating Instructions and Specifications (hosted at apexwaves.com)
- PWM rate
- 20 kHz recommended, 40 kHz max
- Peak current
- 12 A < 2 s max
- Encoder inputs
- 3, differential or single-ended, max quadrature frequency 5 MHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | National Instruments NI-9505 C Series DC Brushed Servo Drive Module |
|---|---|
| Brand | National Instruments |
| Model | NI-9505 |
| Category | Servo Systems |
| Weight | 155 g |
| Evidence | National Instruments 374211H-01 NI 9505 Operating Instructions and Specifications (hosted at apexwaves.com) |
| PWM rate | 20 kHz recommended, 40 kHz max |
| Peak current | 12 A < 2 s max |
| Encoder inputs | 3, differential or single-ended, max quadrature frequency 5 MHz |
| Encoder connector | 9-pin female DSUB |
| Operating temperature | -40 to 70 °C |
| Motor continuous current | 5 A @ 40 °C; 1 A @ 70 °C |
| Motor DC power supply (VSUP) | +8 to +30 VDC, 12 A max |
| Current loop ADC resolution | 12 bit |
