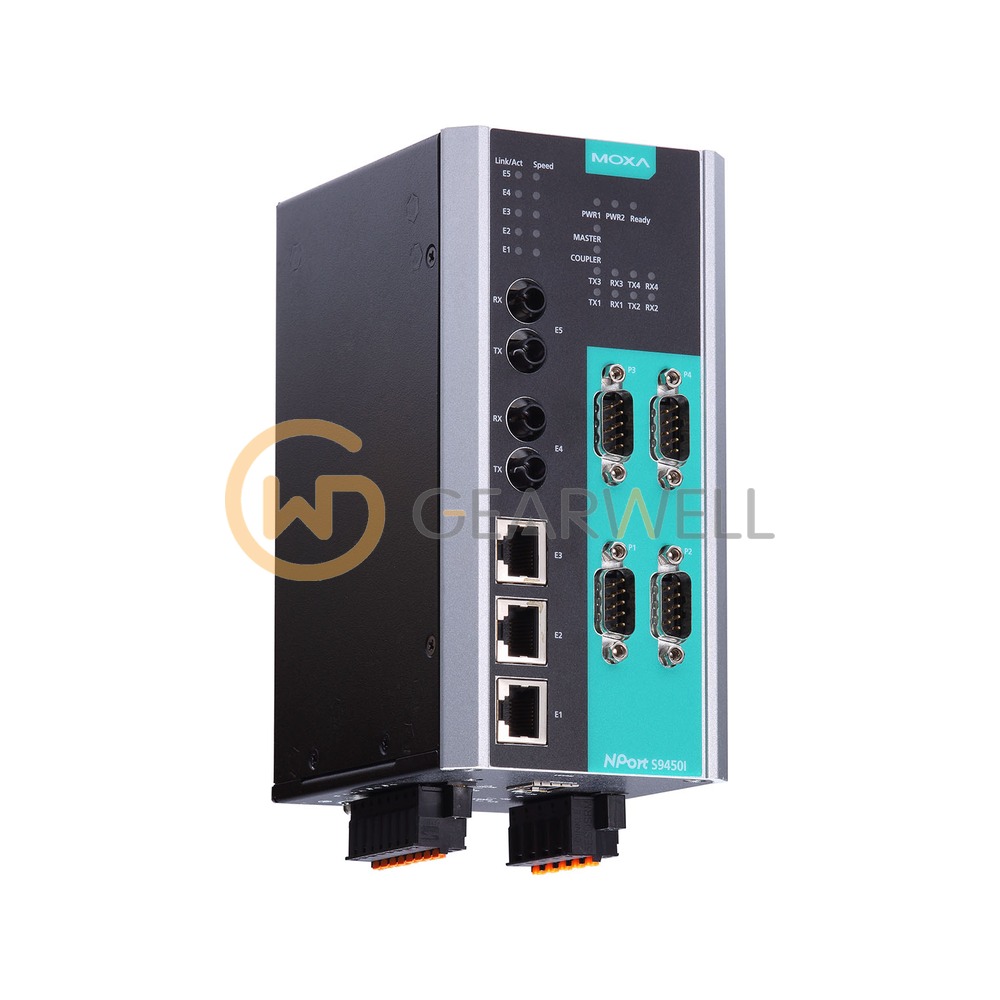

Moxa NPort S9450I-2S-ST-HV-T NPort S9450I Serial Device Server
- Brand
- MOXA
- Model
- S9450I-2S-ST-HV-T
- GEARWELL SKU
- GWP-000011292
- Category
- Industrial Communication
Key specifications
- Baudrate
- 50 bps to 921.6 kbps
- Fiber ports
- 2 x 100BaseFX single-mode ST
- Installation
- DIN-rail mounting; wall mounting with optional kit
- Serial ports
- 4 x RS-232/422/485 (DB9 male)
- Input voltage
- 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Moxa NPort S9450I-2S-ST-HV-T NPort S9450I Serial Device Server |
|---|---|
| Brand | MOXA |
| Model | S9450I-2S-ST-HV-T |
| Category | Industrial Communication |
| Baudrate | 50 bps to 921.6 kbps |
| Fiber ports | 2 x 100BaseFX single-mode ST |
| Installation | DIN-rail mounting; wall mounting with optional kit |
| Serial ports | 4 x RS-232/422/485 (DB9 male) |
| Input voltage | 110/220 VAC/VDC (110 to 220 VAC, 110 to 220 VDC) |
| Ethernet ports | 3 x 10/100BaseT(X) RJ45 |
| Serial isolation | 2 kV |
| Housing / dimensions | Metal, 80 x 160 x 109 mm |
| Operating temperature | -40 to 85 °C |
| Single-mode fiber typical distance | 40 km |
