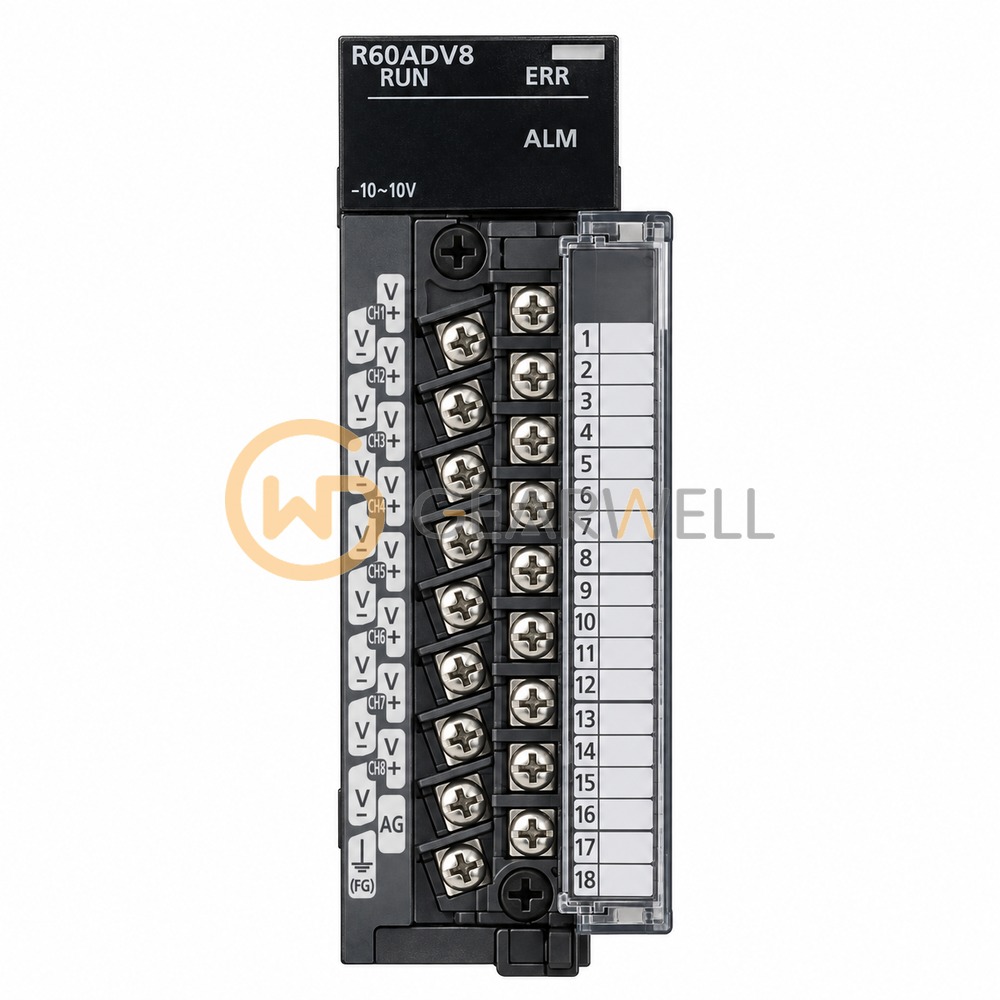

Mitsubishi Electric R60ADV8 Analog Input Module
- Brand
- Mitsubishi Electric
- Model
- R60ADV8
- GEARWELL SKU
- GWP-000006351
- Category
- PLCs & I/O
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric R60ADV8 is a MELSEC iQ-R analog-digital converter module with 8 voltage input channels. Each channel accepts -10 to 10VDC with 1MΩ input resistance and converts to 16-bit signed binary, for example 0 to 32000 on the 0 to 10V range. Conversion speed is 80µs per channel. Inputs are photocoupler isolated from the controller power supply but not between channels, and connect through an 18-point terminal block. Internal current consumption is 0.23A at 5VDC, size is 106mm high, 27.8mm wide and 131mm deep, and weight is 0.17kg.
Technical reference
| Product name | Mitsubishi Electric R60ADV8 Analog Input Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | R60ADV8 |
| Category | PLCs & I/O |
