Mitsubishi Electric QD62 Module
- Brand
- Mitsubishi Electric
- Model
- QD62
- GEARWELL SKU
- GWP-000001111
- Category
- Industrial Automation Parts
Key specifications
- External connector
- 40-pin
- Count input signal
- 1-phase, 2-phase or CW/CCW
- Product type
- High-speed counter module
- Input signal level
- 5/12/24 V DC, 2 to 5 mA
- Number of channels
- 2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

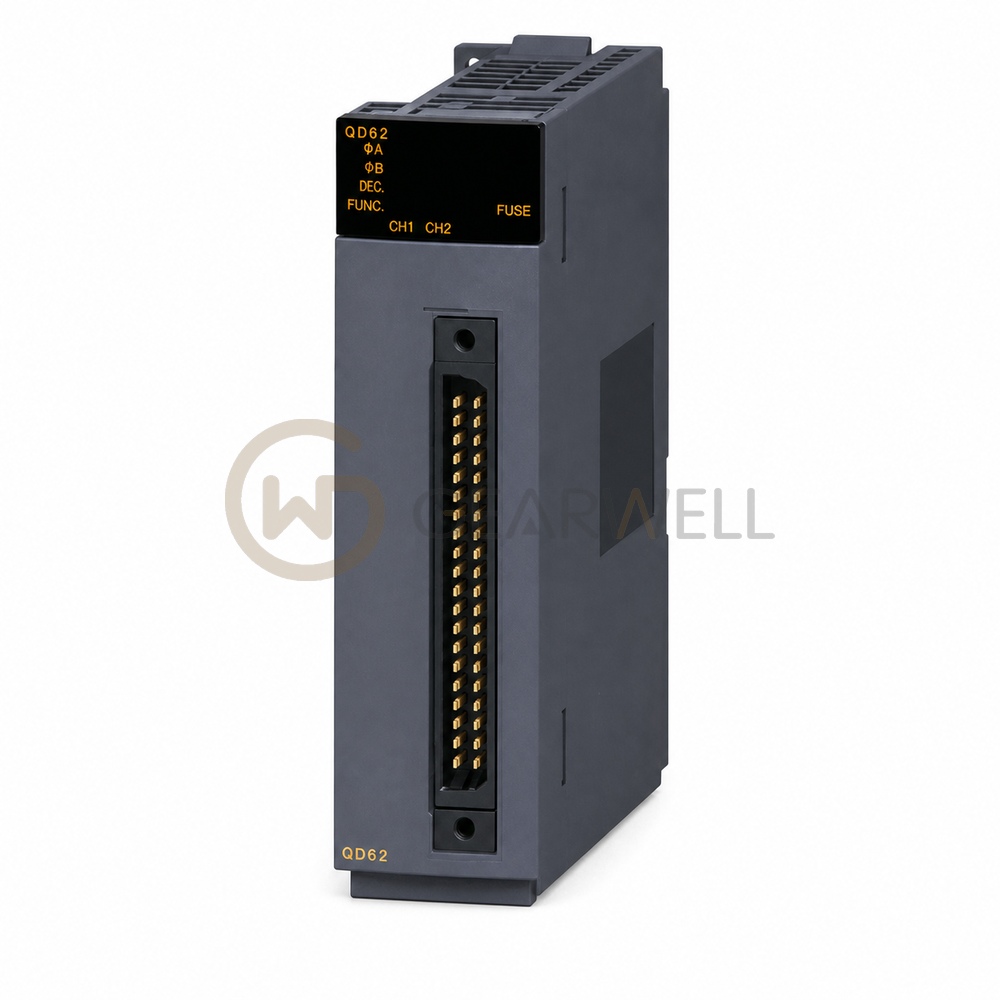

The Mitsubishi Electric QD62 is a MELSEC-Q high-speed counter module with 2 counter channels and sinking transistor coincidence outputs. It counts 1-phase, 2-phase or CW/CCW pulse inputs at up to 200 kPPS, with 5/12/24 V DC signal levels and a 32-bit signed counting range. Each channel has preset and function start inputs and 2 coincidence output points rated 12/24 V DC, 0.5 A per point. The module occupies 16 I/O points, draws 0.30 A at 5 V DC and weighs 0.11 kg.
Technical reference
| Product name | Mitsubishi Electric QD62 Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | QD62 |
| Category | Industrial Automation Parts |
| External connector | 40-pin |
| Count input signal | 1-phase, 2-phase or CW/CCW |
| Product type | High-speed counter module |
| Input signal level | 5/12/24 V DC, 2 to 5 mA |
| Number of channels | 2 |
| Counting range | 32-bit signed (-2147483648 to 2147483647) |
| Occupied I/O points | 16 |
| Maximum counting speed | 200 k pulses/s |
