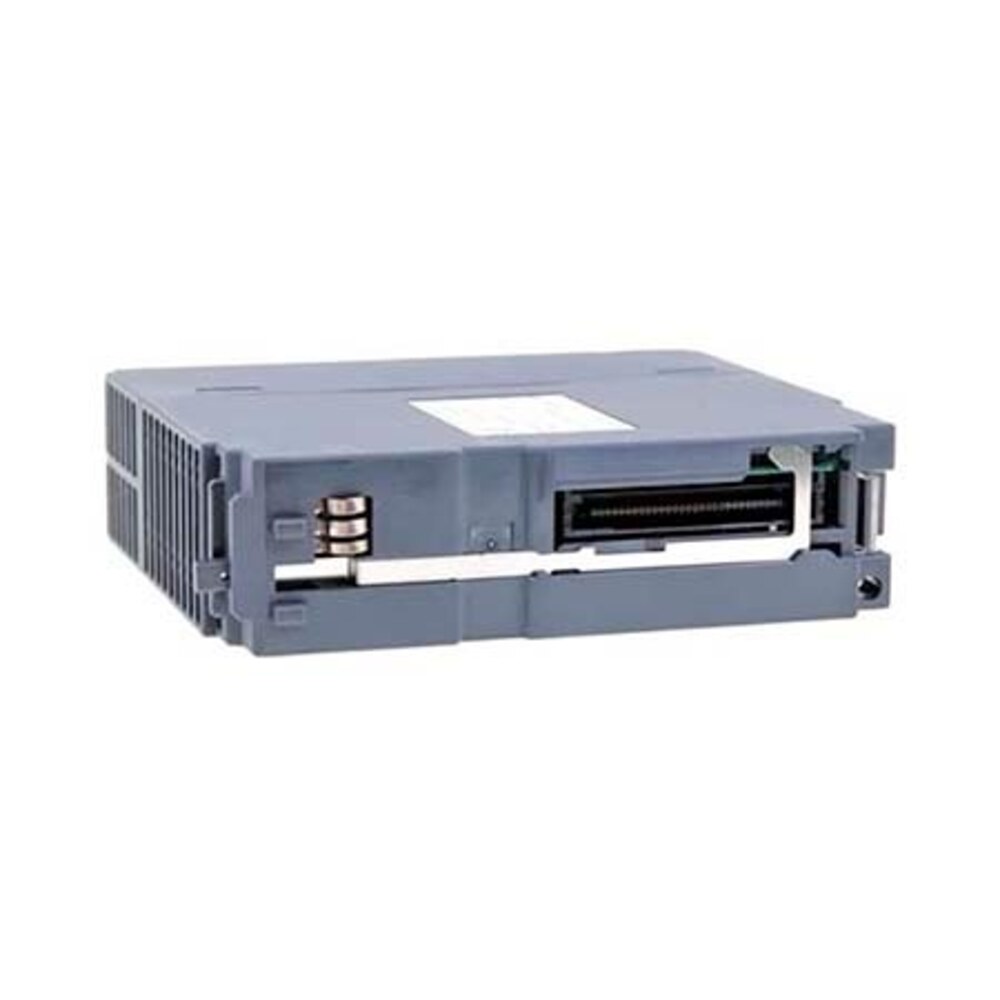

Mitsubishi Electric Q68AD-G Digital Conversion unit
- Brand
- Mitsubishi Electric
- Model
- Q68AD-G
- GEARWELL SKU
- GWP-000002874
- Category
- Industrial Automation Parts
Key specifications
- Product type
- Channel-isolated analog input module
- Analog input channels
- 8
- Current input range
- 0 to 20 mA DC
- Response time
- 20 ms
- Voltage input range
- -10 to +10 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric Q68AD-G is a MELSEC-Q channel isolated analog-digital converter module with 8 input channels. Each channel accepts -10 to 10VDC voltage or 0 to 20mADC current, converted to 16-bit signed binary in normal or high resolution mode (for example 0 to 16000 on the 0 to 10V range). Channels are transformer isolated, with 1000VAC rms between channels and 500VAC rms to the controller power supply. The sampling cycle is 10ms per channel. Wiring uses a 40-pin connector, internal current consumption is 0.46A at 5VDC and weight is 0.16kg.
Technical reference
| Product name | Mitsubishi Electric Q68AD-G Digital Conversion unit |
|---|---|
| Brand | Mitsubishi Electric |
| Model | Q68AD-G |
| Category | Industrial Automation Parts |
| Product type | Channel-isolated analog input module |
| Analog input channels | 8 |
| Current input range | 0 to 20 mA DC |
| Response time | 20 ms |
| Voltage input range | -10 to +10 V DC |
| Digital output format | 16-bit signed binary |
| Sampling cycle | 10 ms per channel |
| Reference accuracy | +/-0.1% |
