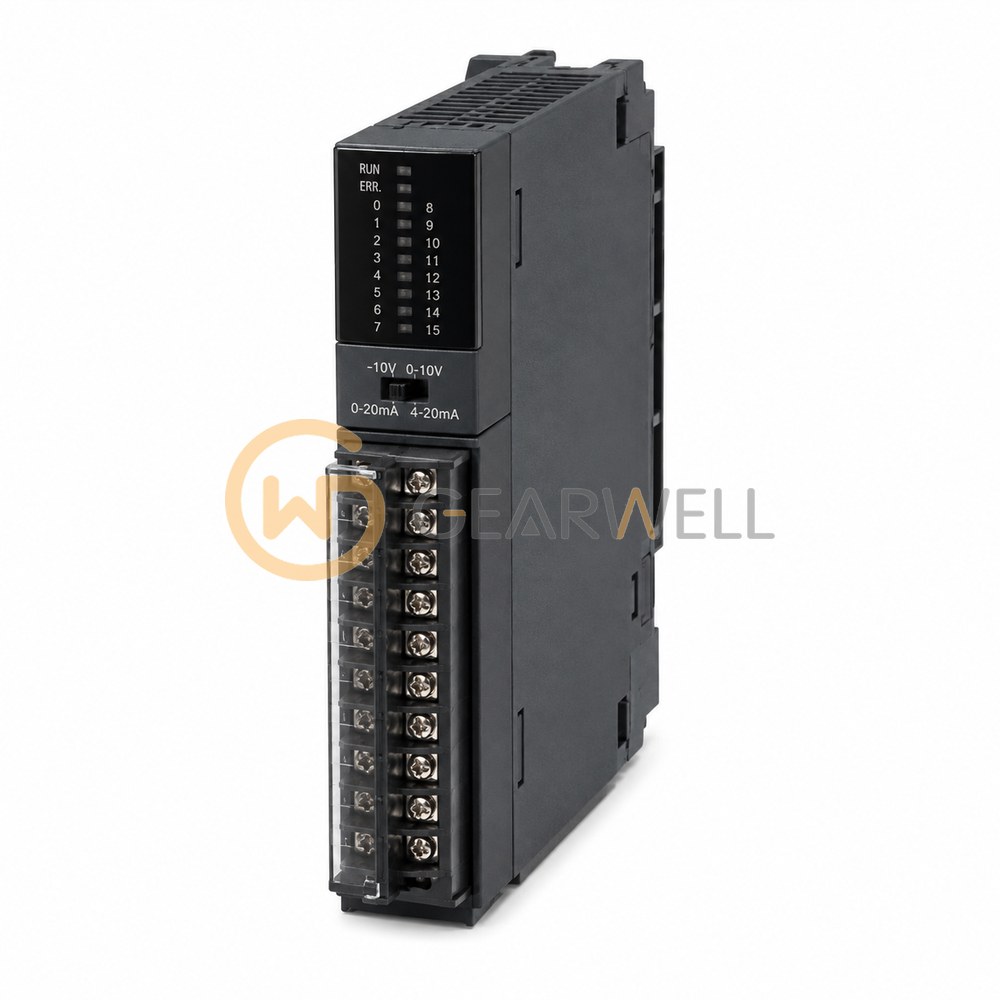

Mitsubishi Electric Q66AD-DG Analog Modules
- Brand
- Mitsubishi Electric
- Model
- Q66AD-DG
- GEARWELL SKU
- GWP-000004218
- Category
- Industrial Automation Parts
Key specifications
- Current input range
- 0 to 20 mA DC; 4 to 20 mA with 2-wire transmitter
- Product type
- Channel-isolated analog current input module
- Analog input channels
- 6
- Response time
- 20 ms
- Digital output format
- 16-bit signed binary
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric Q66AD-DG is a MELSEC-Q channel isolated analog-digital converter module with signal conditioning and 6 current input channels. With a 2-wire transmitter it reads 4 to 20mADC and supplies the transmitter at 26±2VDC, up to 24mADC with short-circuit protection; without a transmitter it reads 0 to 20mADC. The sampling cycle is 10ms per channel and channels are transformer isolated from each other at 1000VAC rms. It needs a 24VDC external supply (0.36A) for the transmitter power, draws 0.42A at 5VDC internally, uses a 40-pin connector and weighs 0.22kg.
Technical reference
| Product name | Mitsubishi Electric Q66AD-DG Analog Modules |
|---|---|
| Brand | Mitsubishi Electric |
| Model | Q66AD-DG |
| Category | Industrial Automation Parts |
| Current input range | 0 to 20 mA DC; 4 to 20 mA with 2-wire transmitter |
| Product type | Channel-isolated analog current input module |
| Analog input channels | 6 |
| Response time | 20 ms |
| Digital output format | 16-bit signed binary |
| Sampling cycle | 10 ms per channel |
| Reference accuracy | +/-0.1% |
| 2-wire transmitter supply | 26 +/- 2 V DC |
