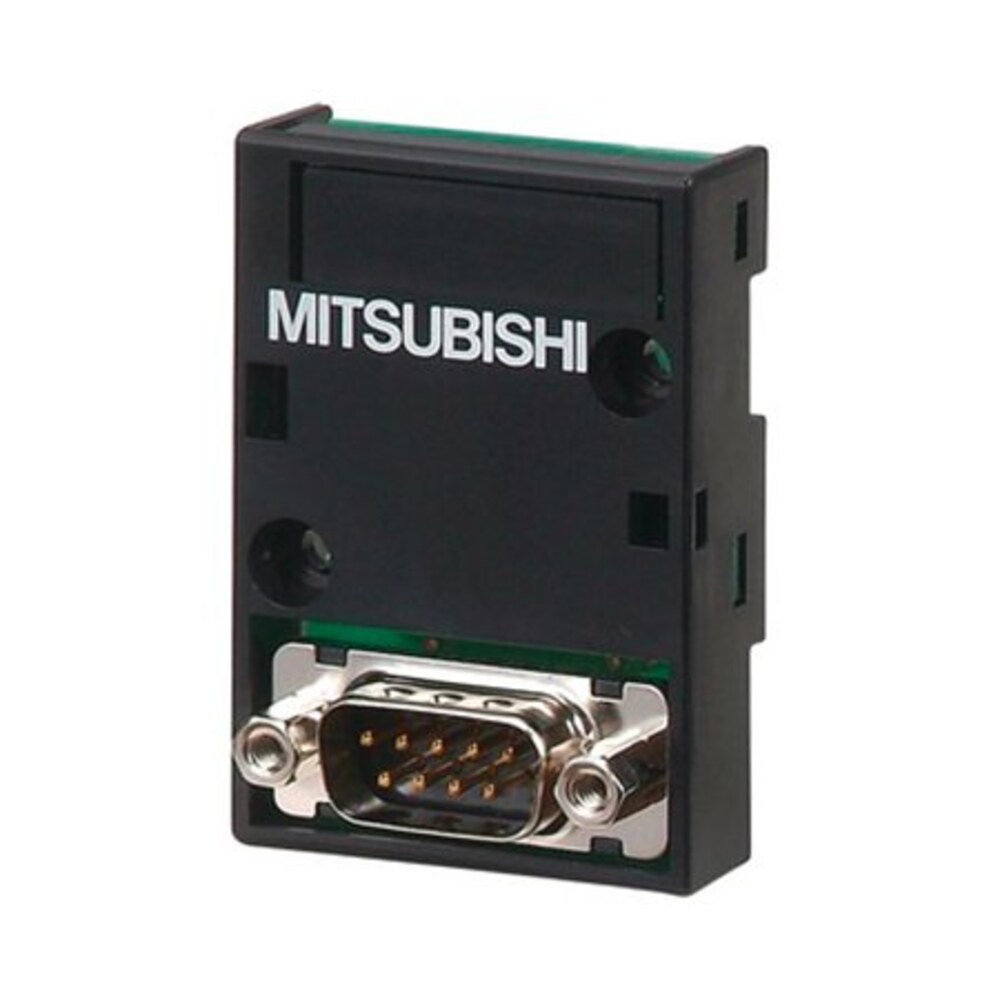

Mitsubishi Electric FX3G-232-BD Interface Module
- Brand
- Mitsubishi Electric
- Model
- FX3G-232-BD
- GEARWELL SKU
- GWP-000002935
- Category
- Industrial Automation Parts
Key specifications
- Connector
- 9-pin D-Sub male
- Isolation
- Non-isolated
- Product type
- RS-232 communication expansion board
- Maximum communication speed
- 115200 bit/s
- Compatible PLC
- FX3S and FX3G
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3G-232-BD is an RS-232C communication expansion board with a 9-pin D-Sub male port. It supports full-duplex communication for FX3S and FX3G PLCs. Available baud rates depend on the communication mode; confirm the PLC and required mode when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3G-232-BD Interface Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3G-232-BD |
| Category | Industrial Automation Parts |
| Connector | 9-pin D-Sub male |
| Isolation | Non-isolated |
| Product type | RS-232 communication expansion board |
| Maximum communication speed | 115200 bit/s |
| Compatible PLC | FX3S and FX3G |
| Maximum transmission distance | 15 m |
| Communication method | Full-duplex |
| Transmission standard | RS-232C |
