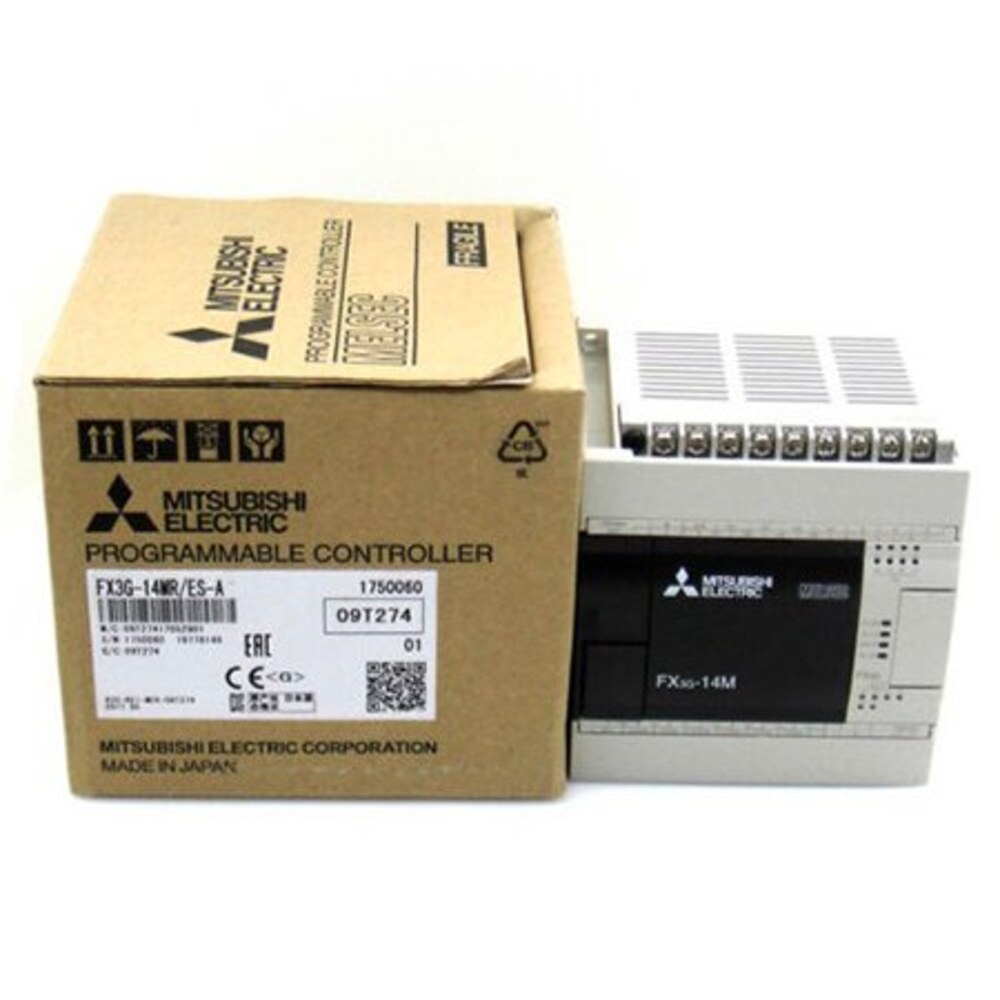

Mitsubishi Electric FX3G-14MR-ES/A Controller Module
- Brand
- Mitsubishi Electric
- Model
- FX3G-14MR-ES/A
- GEARWELL SKU
- GWP-000004260
- Category
- Industrial Automation Parts
Key specifications
- Total I/O points
- 14
- Output connection
- Removable M3 screw terminal block
- Input points
- 8
- Output type
- Relay
- Output points
- 6
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3G-14MR-ES/A is a MELSEC-F FX3G series compact PLC main unit with 14 built-in I/O points: 8 inputs (24 V DC sink/source) and 6 relay outputs. FX3G main units have a 32K-step EEPROM program memory and a built-in USB programming port. Mitsubishi's FX3G hardware manual lists this configuration as FX3G-14MR/ES (AC power supply); confirm the full order code, including the -A suffix, on the nameplate when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3G-14MR-ES/A Controller Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3G-14MR-ES/A |
| Category | Industrial Automation Parts |
| Total I/O points | 14 |
| Output connection | Removable M3 screw terminal block |
| Input points | 8 |
| Output type | Relay |
| Output points | 6 |
| Product type | FX3G programmable controller main unit |
| Output response time | Approx. 10 ms |
| Relay contact rating | 2 A per point; 30 V DC or 240 V AC maximum |
