Mitsubishi Electric FX2NC-32MT 32-I/O Transistor PLC, 24 V DC
- Brand
- Mitsubishi Electric
- Model
- FX2NC-32MT
- GEARWELL SKU
- GWP-000001031
- Category
- Industrial Automation Parts
Key specifications
- Built-in I/O points
- 32
- Built-in program memory
- 8,000-step RAM; built-in lithium-battery backup
- Output type
- Transistor (sink)
- Input points
- 16
- Rated power supply
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

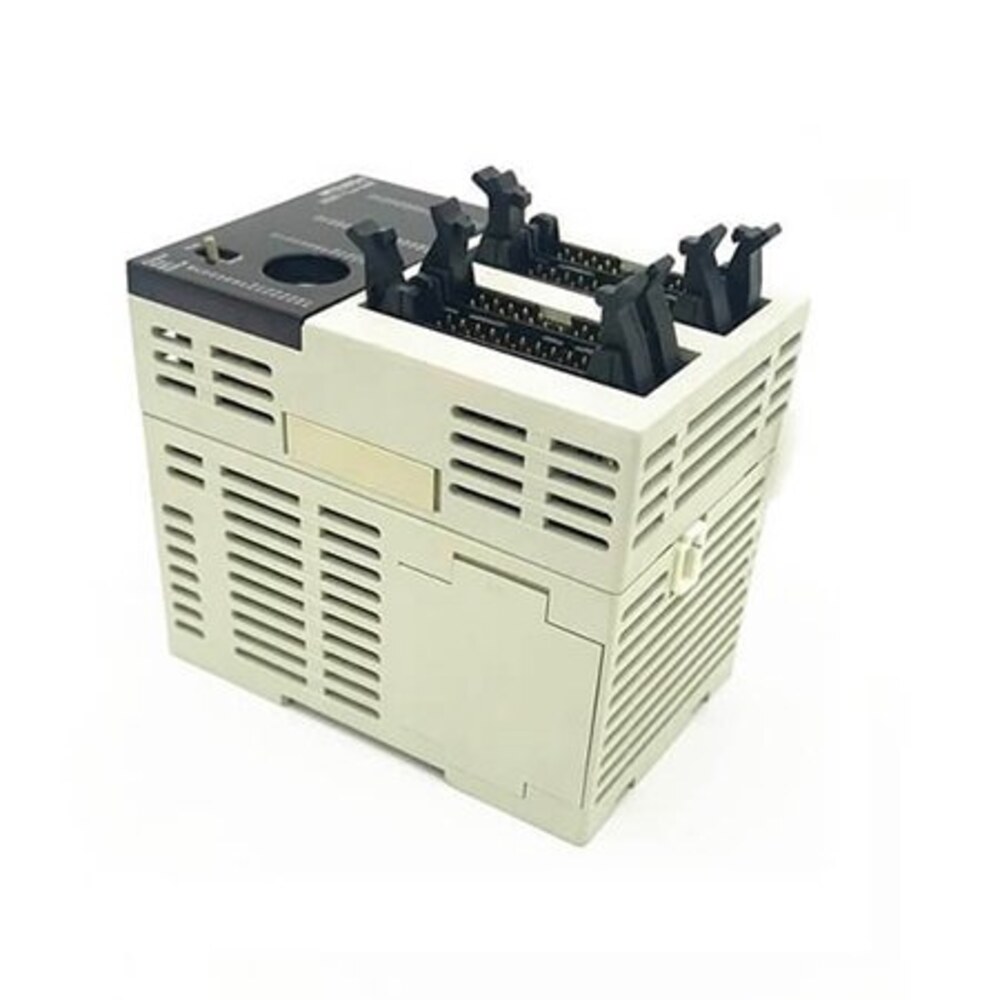

Mitsubishi Electric FX2NC-32MT is a MELSEC-F FX2NC series compact PLC main unit with 32 built-in I/O points: 16 inputs and 16 transistor outputs on connectors. It runs on 24 V DC and has 8K steps of built-in RAM program memory. Mitsubishi's English hardware manual lists the 32-point model as FX2NC-32MT-DSS (source output), so confirm whether your unit has sink or source outputs from the nameplate when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX2NC-32MT 32-I/O Transistor PLC, 24 V DC |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX2NC-32MT |
| Category | Industrial Automation Parts |
| Built-in I/O points | 32 |
| Built-in program memory | 8,000-step RAM; built-in lithium-battery backup |
| Output type | Transistor (sink) |
| Input points | 16 |
| Rated power supply | 24 V DC |
| Product type | MELSEC-F programmable controller |
| Output points | 16 |
| Maximum program capacity | Up to 16,000 steps with optional memory cassette, including comments and file registers |
