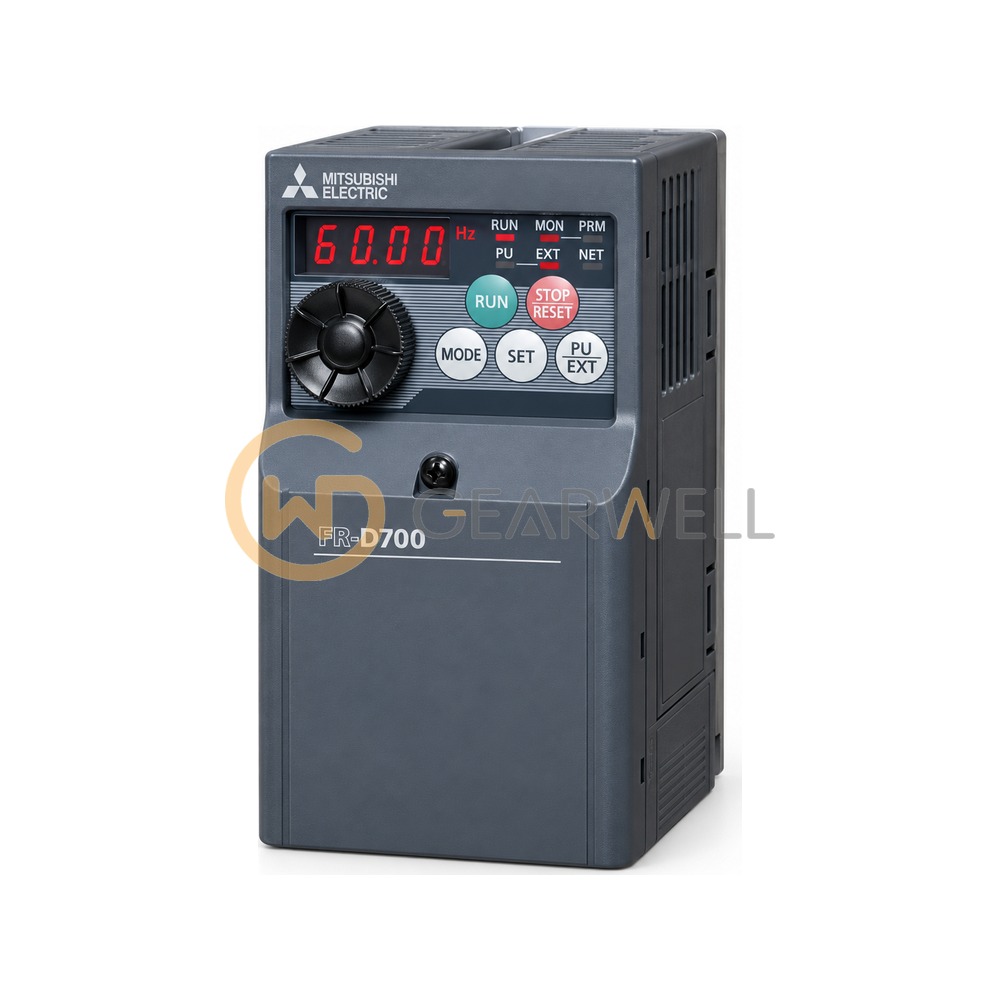

Mitsubishi Electric FR-D740-0.4K-CHT Inverter (variable frequency drive)
- Brand
- Mitsubishi Electric
- Model
- FR-D740-0.4K-CHT
- GEARWELL SKU
- GWP-000013520
- Category
- Variable Frequency Drives
Key specifications
- Rated current
- 1.2 A
- Rated capacity
- 0.9 kVA
- Approximate mass
- 1.3 kg
- Protective structure
- Enclosed type (IP20)
- Overload current rating
- 150% 60 s, 200% 0.5 s
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric FR-D740-0.4K-CHT is a compact FR-D700 series inverter in the Chinese (CHT) specification for a three-phase 380 to 480V supply at 50Hz/60Hz, sized for a 0.4 kW motor. It delivers a rated current of 1.2 A at a rated capacity of 0.9 kVA, with an overload capacity of 150% for 60s and 200% for 0.5s. The permissible supply range is 325 to 528V and the power supply capacity is 1.5 kVA. The CHT version starts in sink logic with a 50Hz base setting and an AM analog monitor output; the unit is an enclosed IP20 design weighing about 1.3 kg.
Technical reference
| Product name | Mitsubishi Electric FR-D740-0.4K-CHT Inverter (variable frequency drive) |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-D740-0.4K-CHT |
| Category | Variable Frequency Drives |
| Rated current | 1.2 A |
| Rated capacity | 0.9 kVA |
| Approximate mass | 1.3 kg |
| Protective structure | Enclosed type (IP20) |
| Overload current rating | 150% 60 s, 200% 0.5 s |
| Applicable motor capacity | 0.4 kW |
| Rated input AC voltage/frequency | Three-phase 380 to 480 V 50/60 Hz |
