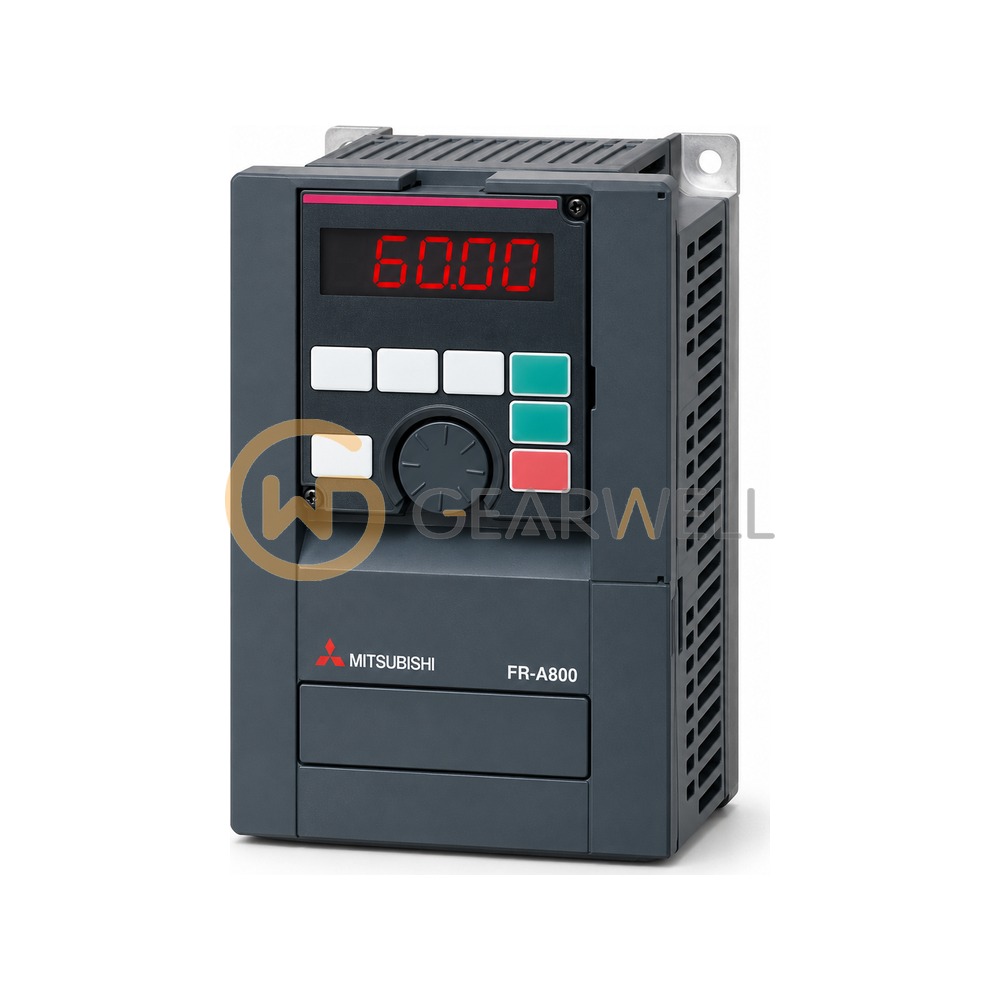

Mitsubishi Electric FR-A846-00250 Inverter (variable frequency drive), IP55
- Brand
- Mitsubishi Electric
- Model
- FR-A846-00250
- GEARWELL SKU
- GWP-000013516
- Category
- Variable Frequency Drives
Key specifications
- DC reactor
- Built-in
- Approx. mass
- 26 kg
- Rated current (LD)
- 23 A
- Rated current (ND)
- 17 A
- Rated capacity (ND)
- 13 kVA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric FR-A846-00250 is an IP55 compatible inverter of the FR-A800 series in the 7.5K frame of the 400 V class, built into a dust- and water-proof enclosure that also meets UL Type12. In the initial ND rating it drives a 7.5 kW motor at a rated current of 17 A, with an overload capacity of 150% for 60 s and 200% for 3 s; in LD rating the figures are 11 kW and 23 A. It accepts a three-phase 380 to 500 V supply at 50 Hz/60 Hz, tolerates 323 to 550 V, and has a built-in DC reactor. Cooling is forced air plus an internal fan, the housing measures 238 mm wide by 650 mm high, and it weighs about 26 kg.
Technical reference
| Product name | Mitsubishi Electric FR-A846-00250 Inverter (variable frequency drive), IP55 |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-A846-00250 |
| Category | Variable Frequency Drives |
| DC reactor | Built-in |
| Approx. mass | 26 kg |
| Rated current (LD) | 23 A |
| Rated current (ND) | 17 A |
| Rated capacity (ND) | 13 kVA |
| Protective structure | IP55 (UL Type 12) |
| Applicable motor capacity (ND) | 7.5 kW |
| Rated input AC voltage/frequency | Three-phase 380 to 500 V 50/60 Hz |
