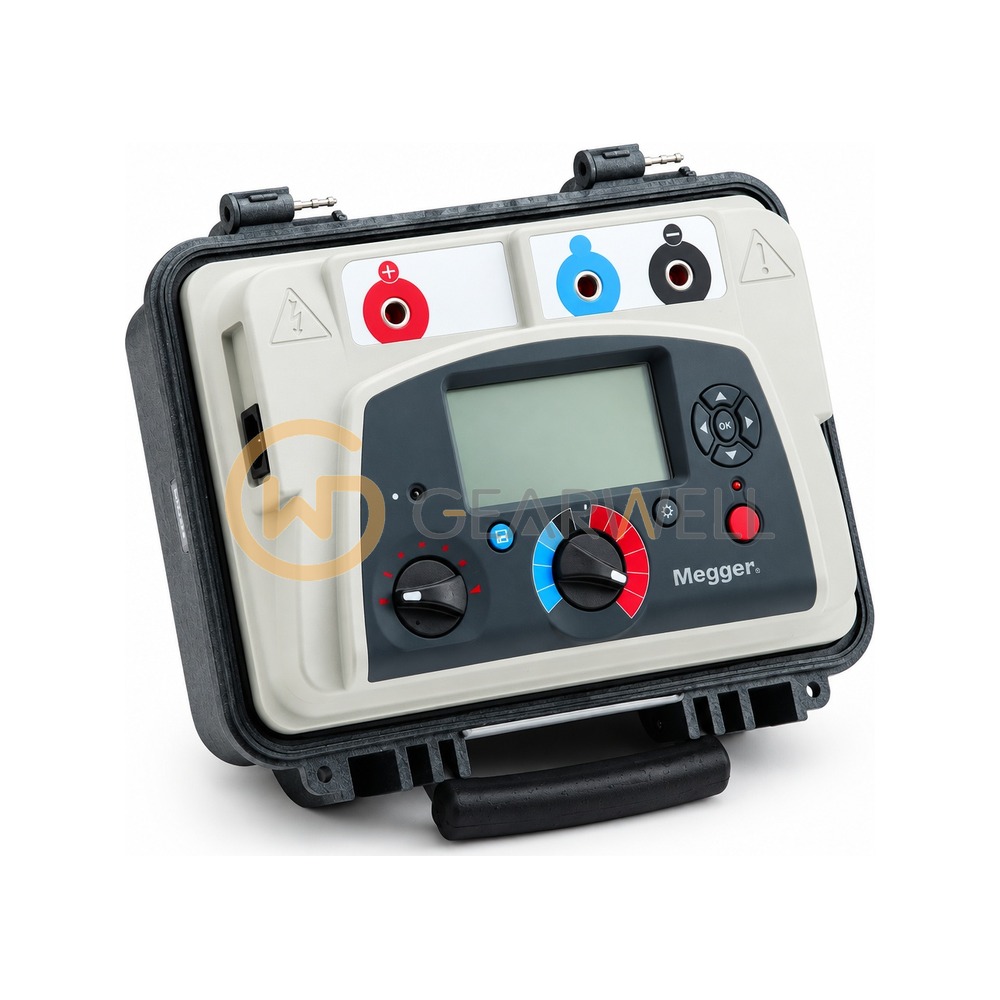

Megger MIT1525 15 kV DC Insulation Resistance Tester
- Brand
- Megger
- Model
- MIT1525
- GEARWELL SKU
- GWP-000034712
- Category
- Test & Measurement
Key specifications
- Battery
- Li-ion 10.8 V, 5.2 Ah (two batteries in MIT1525)
- Evidence
- Megger datasheet MIT515--MIT525--MIT1025--MIT1525_DS_fr_V20 (hosted at content.voltimum.com)
- Mains input
- 90-264 V rms, 47-63 Hz, 200 VA
- Safety rating
- CAT IV 1000 V up to 3000 m (IEC 61010-1)
- Test voltages
- 1000, 2500, 5000, 10000, 15000 V and adjustable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Megger MIT1525 15 kV DC Insulation Resistance Tester |
|---|---|
| Brand | Megger |
| Model | MIT1525 |
| Category | Test & Measurement |
| Battery | Li-ion 10.8 V, 5.2 Ah (two batteries in MIT1525) |
| Evidence | Megger datasheet MIT515--MIT525--MIT1025--MIT1525_DS_fr_V20 (hosted at content.voltimum.com) |
| Mains input | 90-264 V rms, 47-63 Hz, 200 VA |
| Safety rating | CAT IV 1000 V up to 3000 m (IEC 61010-1) |
| Test voltages | 1000, 2500, 5000, 10000, 15000 V and adjustable |
| Order references | MIT1525 UK 1002-907, US 1002-909, EU 1002-908, AU 1002-910 |
| Ingress protection | IP65 lid closed, IP40 lid open |
| Dimensions (L x W x H) | 360 x 305 x 194 mm |
| Noise rejection (15 kV) | 6 mA |
| Short-circuit current | 3 mA |
| Insulation resistance range (15 kV) | 10 kΩ to 30 TΩ |
