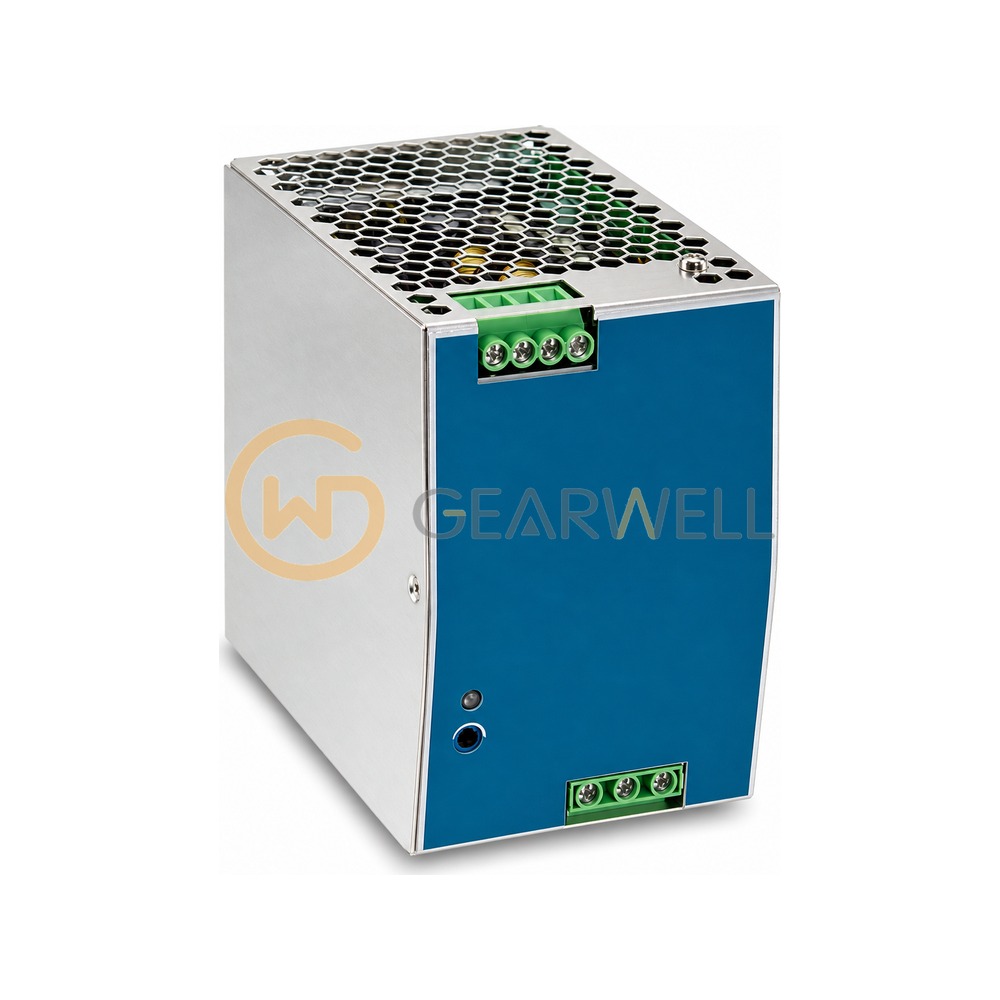

MEANWELL NDR-480-24 NDR-480 Series 24V 480W DIN Rail Power Supply
- Brand
- MEANWELL
- Model
- NDR-480-24
- GEARWELL SKU
- GWP-000021611
- Category
- Power Supplies
Key specifications
- Dimensions
- 85.5*125.2*128.5 (W*H*D) mm
- Rated power
- 480 W
- Rated current
- 20 A
- Efficiency (typ.)
- 92.5 %
- Output voltage
- 24 V dc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MEANWELL NDR-480-24 NDR-480 Series 24V 480W DIN Rail Power Supply |
|---|---|
| Brand | MEANWELL |
| Model | NDR-480-24 |
| Category | Power Supplies |
| Dimensions | 85.5*125.2*128.5 (W*H*D) mm |
| Rated power | 480 W |
| Rated current | 20 A |
| Efficiency (typ.) | 92.5 % |
| Output voltage | 24 V dc |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Input voltage range | 90 ~ 264VAC / 127 ~ 370VDC |
| Working temperature | -20 ~ +70 (see derating curve) °C |
| Voltage adjustment range | 24 ~ 28 V |
