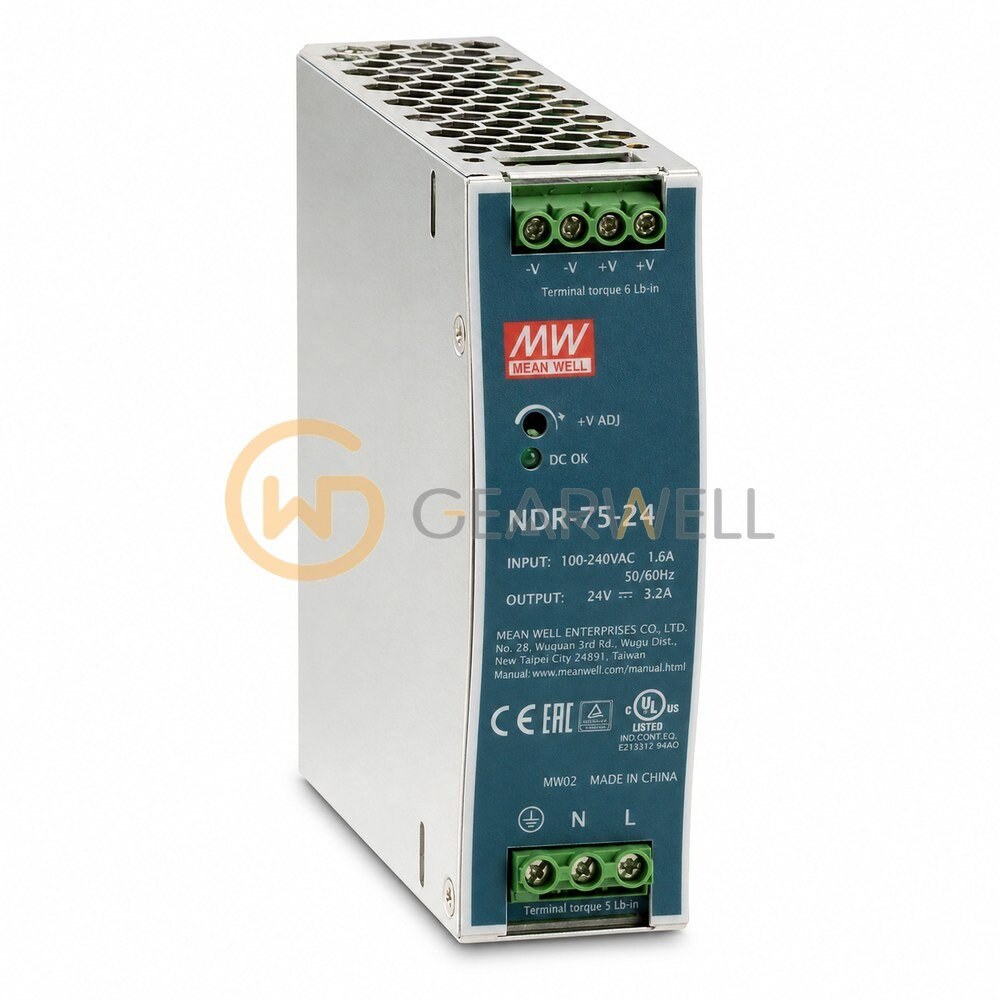

MEAN WELL NDR-75-24 DIN-rail power supply, 24 V DC, 3.2 A
- Brand
- MEANWELL
- Model
- NDR-75-24
- GEARWELL SKU
- GWP-000001633
- Category
- Machine Safety & Vision
Key specifications
- Mounting
- TS-35 DIN rail
- Dimensions (W × H × D)
- 32 × 125.2 × 102 mm
- Typical efficiency
- 88% at 230 V AC input, rated load and 25 °C
- Rated output power
- 76.8 W
- Product type
- Industrial DIN-rail power supply
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MEAN WELL NDR-75-24 DIN-rail power supply, 24 V DC, 3.2 A |
|---|---|
| Brand | MEANWELL |
| Model | NDR-75-24 |
| Category | Machine Safety & Vision |
| Mounting | TS-35 DIN rail |
| Dimensions (W × H × D) | 32 × 125.2 × 102 mm |
| Typical efficiency | 88% at 230 V AC input, rated load and 25 °C |
| Rated output power | 76.8 W |
| Product type | Industrial DIN-rail power supply |
| Rated output | 24 V DC, 3.2 A |
| Maximum ripple and noise | 120 mVp-p at 230 V AC, rated load, 25 °C; 20 MHz bandwidth with 12-inch twisted pair and 0.1 µF / 47 µF parallel capacitors |
| Input voltage | 90–264 V AC or 127–370 V DC; low-input derating applies |
| Output adjustment range | 24–28 V DC |
| Manufacturer | MEAN WELL |
| Working temperature | -20 to +70 °C; apply the manufacturer's load-derating curves |
