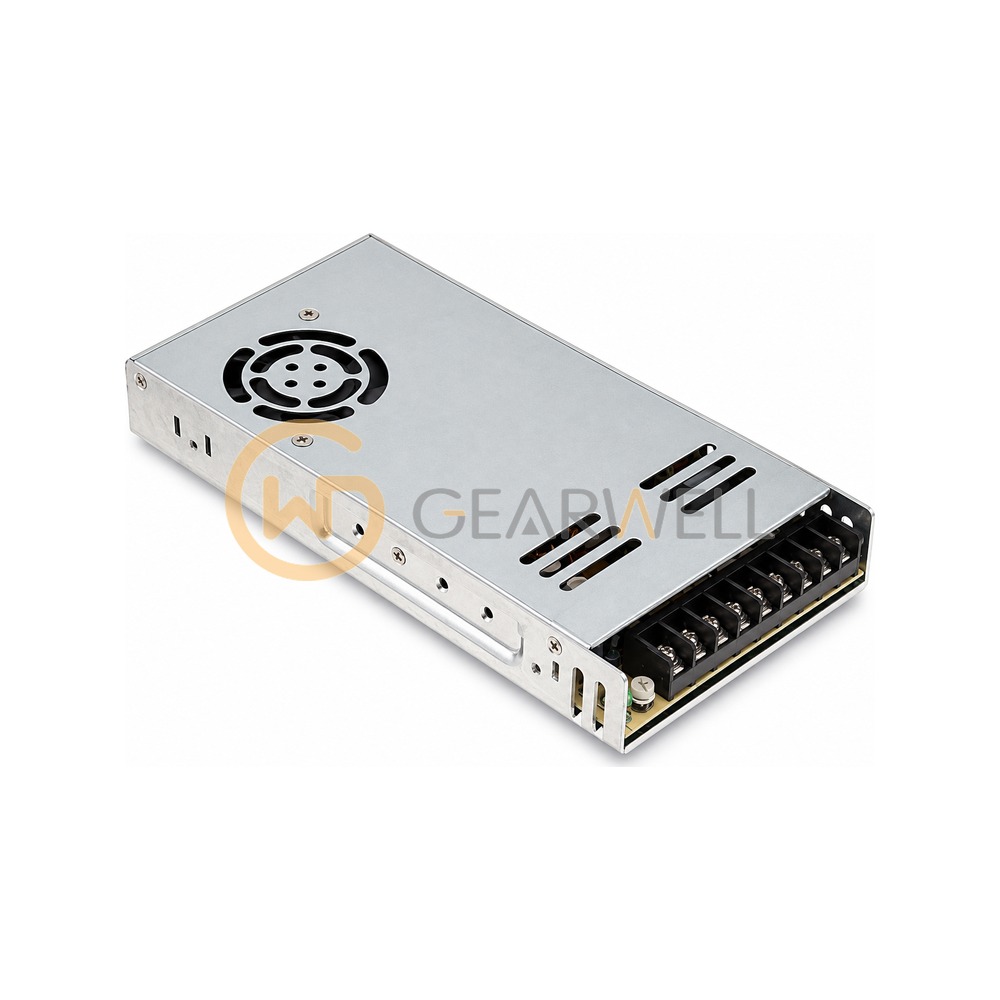

MEANWELL LRS-350-24 LRS-350 Series 24V 350.4W Enclosed Power Supply
- Brand
- MEANWELL
- Model
- LRS-350-24
- GEARWELL SKU
- GWP-000016502
- Category
- Power Supplies
Key specifications
- Dimensions
- 215*115*30 (L*W*H) mm
- Rated power
- 350.4 W
- Rated current
- 14.6 A
- Efficiency (typ.)
- 88 %
- Output voltage
- 24 V dc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MEANWELL LRS-350-24 LRS-350 Series 24V 350.4W Enclosed Power Supply |
|---|---|
| Brand | MEANWELL |
| Model | LRS-350-24 |
| Category | Power Supplies |
| Dimensions | 215*115*30 (L*W*H) mm |
| Rated power | 350.4 W |
| Rated current | 14.6 A |
| Efficiency (typ.) | 88 % |
| Output voltage | 24 V dc |
| Withstand voltage | I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Input voltage range | 90 ~ 132VAC / 180 ~ 264VAC by switch / 240 ~ 370VDC / (switch on 230VAC) |
| Working temperature | -25 ~ +70 (see derating curve) °C |
| Voltage adjustment range | 21.6 ~ 28.8 V |
