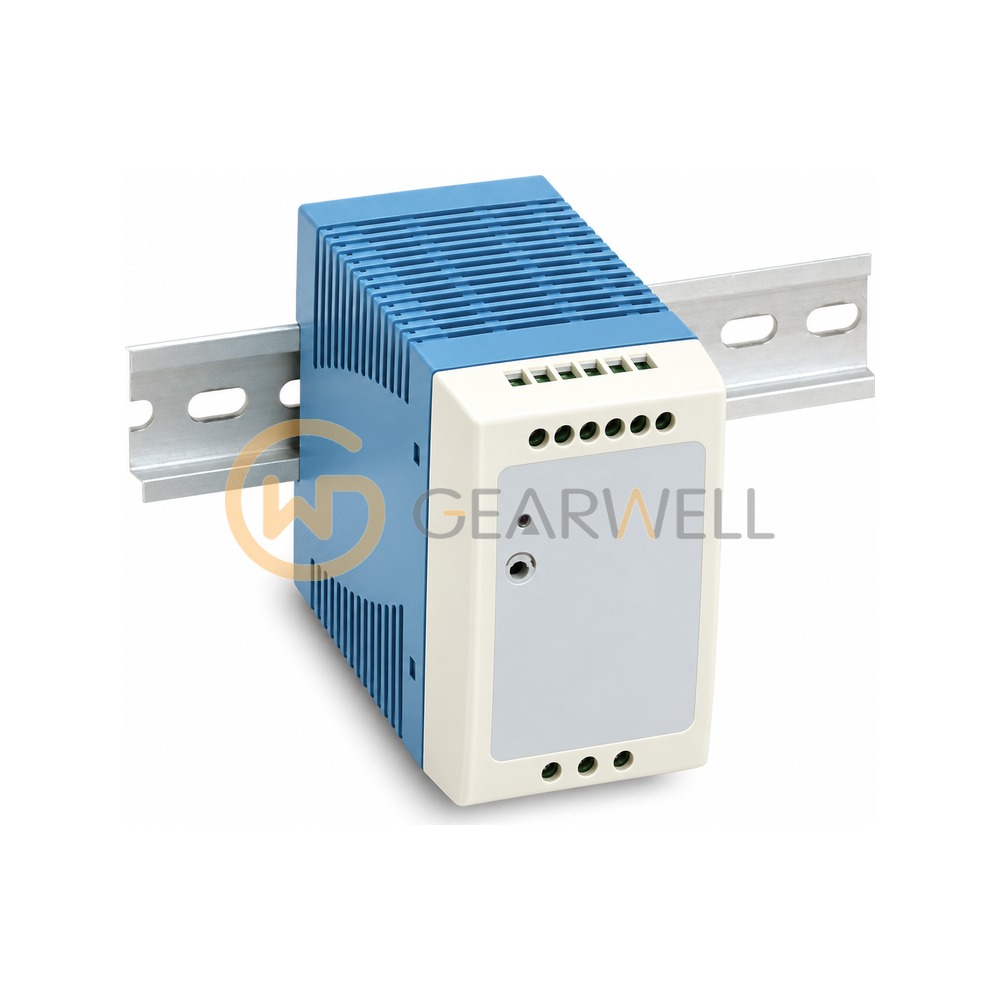

MEANWELL MDR-100-24 MDR-100 Series 24V 96W DIN Rail Power Supply
- Brand
- MEANWELL
- Model
- MDR-100-24
- GEARWELL SKU
- GWP-000016503
- Category
- Power Supplies
Key specifications
- Dimensions
- 55*90*100 (W*H*D) mm
- Rated power
- 96 W
- Rated current
- 4 A
- Efficiency (typ.)
- 86 %
- Output voltage
- 24 V dc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MEANWELL MDR-100-24 MDR-100 Series 24V 96W DIN Rail Power Supply |
|---|---|
| Brand | MEANWELL |
| Model | MDR-100-24 |
| Category | Power Supplies |
| Dimensions | 55*90*100 (W*H*D) mm |
| Rated power | 96 W |
| Rated current | 4 A |
| Efficiency (typ.) | 86 % |
| Output voltage | 24 V dc |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC, O/P-FG:0.5KVAC |
| Input voltage range | 85 ~ 264VAC / 120 ~ 370VDC |
| Working temperature | -10 ~ +60 (see derating curve) °C |
| Voltage adjustment range | 24 ~ 30 V |
